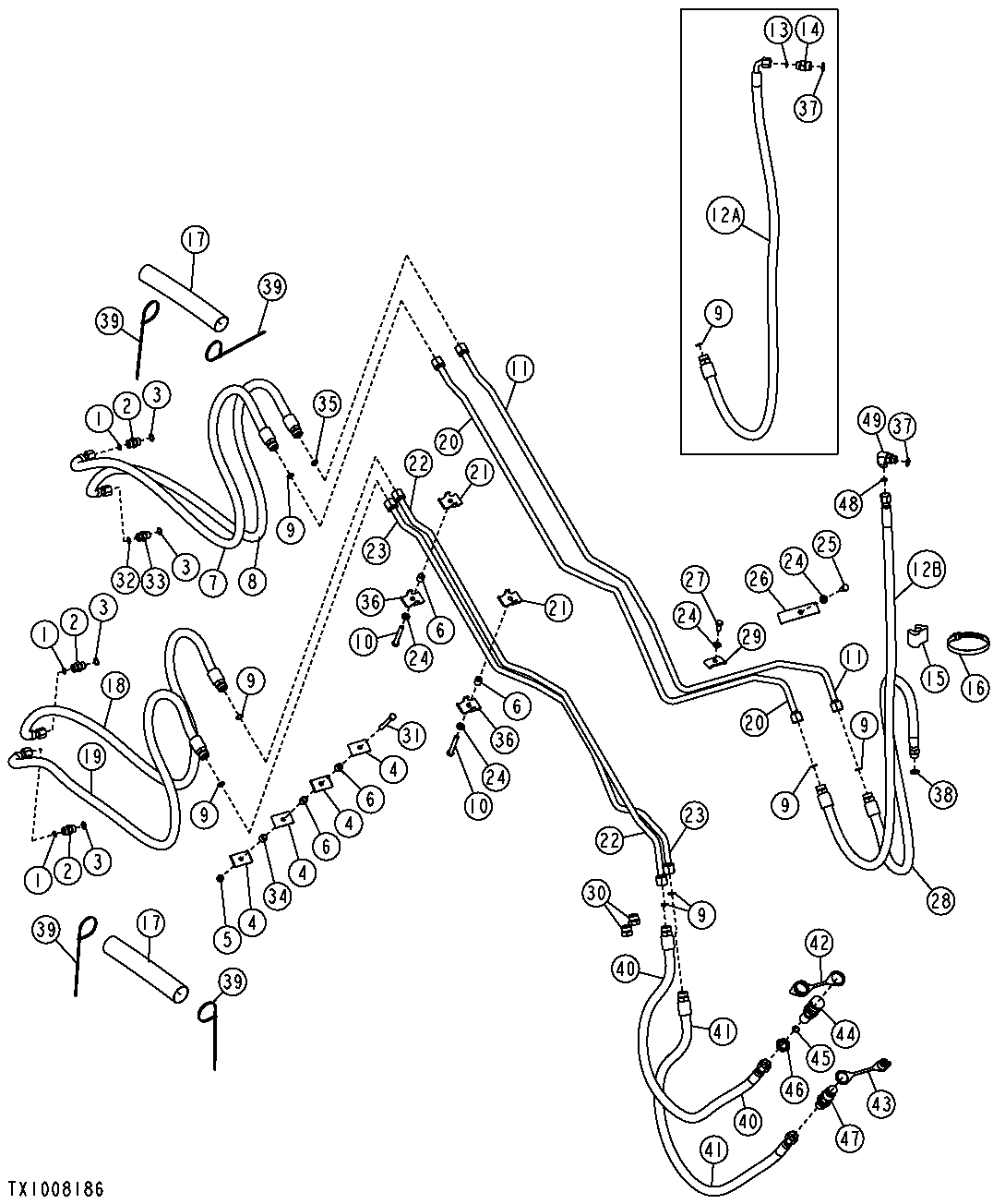

Loader Bucket Cylinder and Third Function Hydraulics (913480 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	3	O-Ring	-
2	38H1161	3	Adapter Fitting	-
3	R26375	4	O-Ring	-
4	R46919	4	Half Clamp	-
5	14M7274	1	Nut	M10
6	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
7	AT198258	1	Hydraulic Hose	-
8	AT198257	1	Hydraulic Hose	-
9	T77932	6	O-Ring	-
10	19M7658	2	Cap Screw	M10 X 50, (SUB FOR 19M7875) (APPL)
11	AT198249	1	Oil Line	-
13	T77857	1	O-Ring	-
14	38H1174	1	Adapter Fitting	-
15	T105773	1	Guide	-
16	AU12450	1	Hose Clamp	-
17	-	1	Part 18	10 in. (254 mm), (MAKE FROM T78606) (CTL)
18	AT198260	1	Hydraulic Hose	Fabricate
19	AT198254	1	Hydraulic Hose	-
20	AT197649	1	Oil Line	-
21	T159954	2	Clamp	-
22	AT198253	1	Oil Line	-
23	AT198251	1	Oil Line	-
24	24M7239	4	Washer	10.700 X 21 X 2.500 mm
25	19M7938	1	Cap Screw	M10 X 20
26	T105720	1	Clamp	-
27	19M7938	1	Cap Screw	M10 X 20, (SUB FOR 19M8324) (APPL)
28	AT173129	1	Hydraulic Hose	-
29	U10516	1	Hose Clamp	-
30	38H1148	2	Fitting Plug	-
31	19M8081	1	Cap Screw	M10 X 80, (SUB FOR 19M7875) (APPL)
32	T77613	1	O-Ring	-
33	38H1171	1	Adapter Fitting	-
34	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
35	T77932	2	O-Ring	-
36	T159954	2	Clamp	-
37	R26375	1	O-Ring	-
38	R26906	1	O-Ring	-
39	H77698	2	Tie Band	-
40	AT309986	1	Hydraulic Hose	Fabricate
41	AT309934	1	Hydraulic Hose	Fabricate
42	T188879	1	Cap	-
43	T188880	1	Cap	-
44	KV11305	1	Hyd. Quick-Connect Coupler	-
45	T77932	2	O-Ring	-
46	T80306	2	Nut	-
47	AT312876	1	Hyd. Quick-Connect Coupler	-
48	T77857	1	O-Ring	-
49	38H1005	1	Elbow Fitting	-
12A	-	1	Part 12	Fabricate, (SUB AT188560, 38H1012, T77857, R26375 AND AT197760 NLA)
12B	AT188560	1	Hydraulic Hose	Fabricate
