Loader and Stabilizer Valve, Fourth Function (Use For AT196630) (913480 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT196630	1	Control Valve	Use Until Exhausted Four-Function Components Listed On Separate Page, NLA, ORDER AT426611 ALSO ORDER RE154027, R111292, R26448, AT319092, T77857, AND AT328992
1	AT426611	1	Control Valve	Requires Four-Function, RE154027, R111292, R26448, AT319092, T77857, AND AT328992
2	R46528	2	Spring Locking Pin	-
3	T190300	1	Stud	-
4	24M7239	3	Washer	10.700 X 21 X 2.500 mm
5	14M7274	1	Nut	M10
6	19M8166	2	Cap Screw	M10 X 110
7	T190296	3	Spacer	-
8	RE154027	1	Adapter Fitting	Not Illustrated Components On Separate Page
9	R111292	1	Disk	Not Illustrated Components On Separate Page
10	R26448	1	O-Ring	Not Illustrated Components On Separate Page
11	AT319092	1	Check Valve	Not Illustrated Components On Separate Page
12	T77857	1	O-Ring	Not Illustrated Components On Separate Page
13	AT328992	1	Flow Control Hyd. Valve	Not Illustrated Components On Separate Page

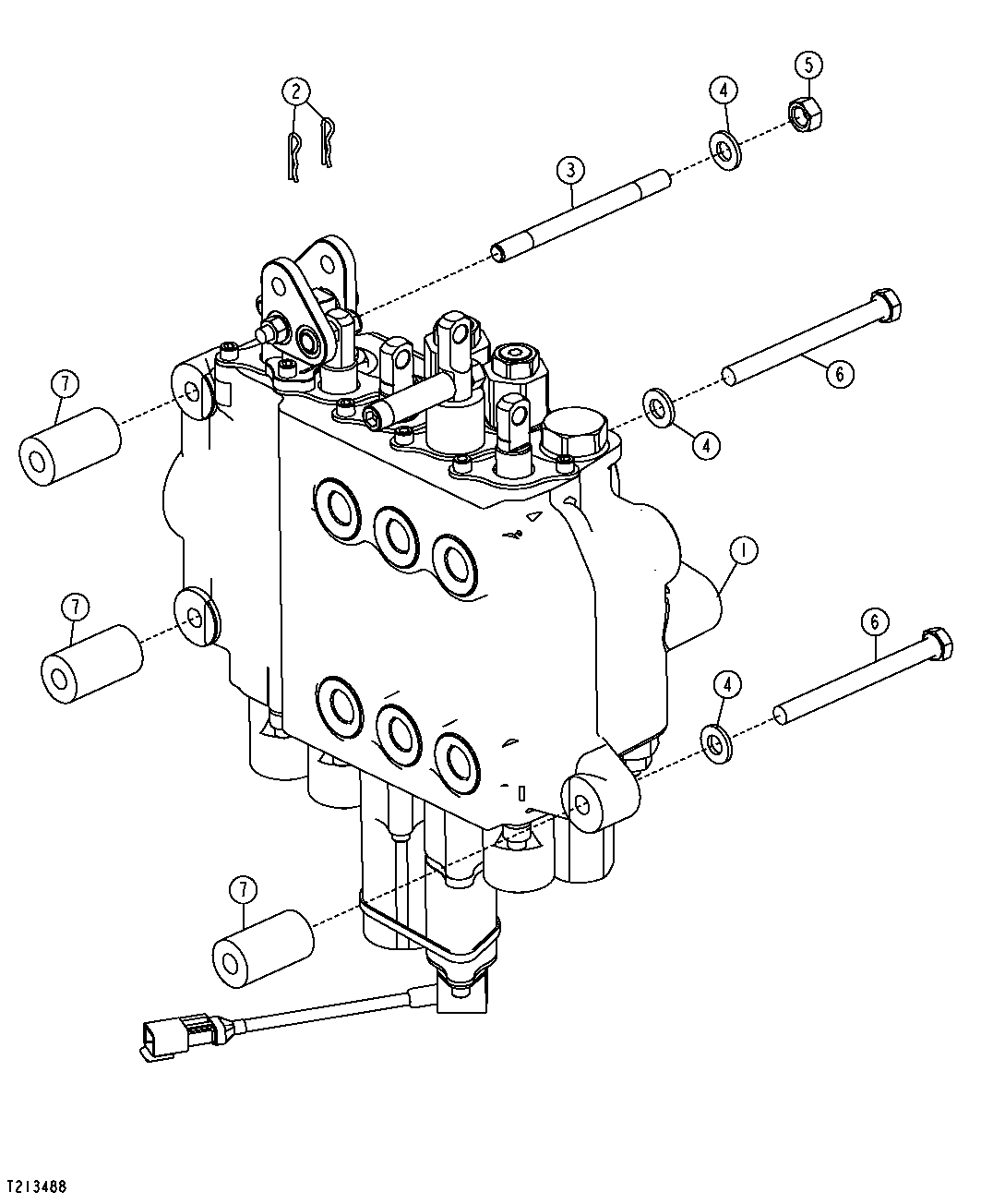

Loader and Stabilizer Valve, Fourth Function (Use For AT196630) (913480 - )
