Открытый узел

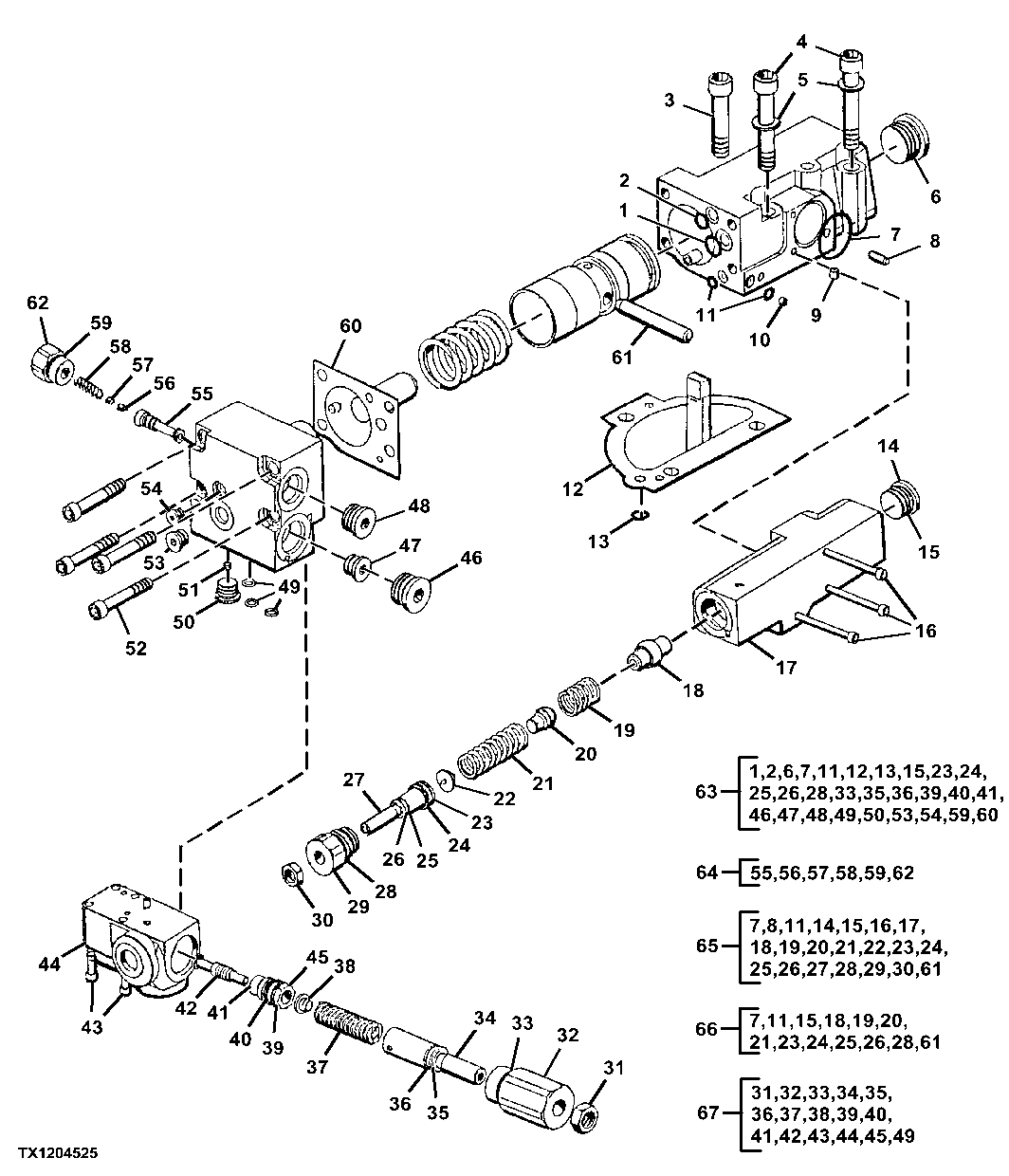

Hydraulic Pump Kit ( - 907935)

Hydraulic Pump Kit ( - 907935)

Hydraulic Pump Kit ( - 907935)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Hydraulic Pump Kit ( - 907935)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T40308	1	O-Ring	(A)
2	T166274	1	O-Ring	(A)
3	19H3806	1	Screw	-
4	19H3805	2	Screw	-
5	T166395	2	Washer	-
6	T118681	1	O-Ring	(A)
7	T166278	1	O-Ring	(A) (C) (D)
8	-	1	Part 8	(C)
9	T166404	1	Orifice	-
10	-	1	Part 10	-
11	T166275	2	O-Ring	(A) (C) (D)
12	T166279	1	Gasket	(A) Kit O-Ring Reference DTAC Solution 68366, INCLUDES
13	-	1	Part 13	(A) Reference DTAC Solution 68366, NLA, ORDER T166279
14	-	1	Part 14	(C)
15	R47151	1	O-Ring	(A) (C) (D)
16	19H3245	3	Screw	(C) 0.190" X 2"
17	-	1	Part 17	(C)
18	-	1	Part 18	(C) (D)
19	-	1	Part 19	(C) (D)
20	-	1	Part 20	(C) (D)
21	-	1	Part 21	(C) (D)
22	-	1	Part 22	(C)
23	T166276	1	Back-Up Ring	(A) (C) (D)
24	AT108777	1	O-Ring	(A) (C) (D)
25	T166277	1	Back-Up Ring	(A) (C) (D)
26	Z53159	1	O-Ring	(A) (C) (D)
27	-	1	Part 27	(C)
28	R47151	1	O-Ring	(A) (C) (D)
29	-	1	Part 29	(C)
30	-	1	Part 30	(C)
31	-	1	Part 31	(E)
32	-	1	Part 32	(E)
33	T118681	1	O-Ring	(A) (E)
34	-	1	Part 34	(E)
35	AT108777	1	O-Ring	(A) (E)
36	T166276	1	Back-Up Ring	(A) (E)
37	-	1	Part 37	(E)
38	-	1	Part 38	(E)
39	T166276	1	Back-Up Ring	(A) (E)
40	AT108777	1	O-Ring	(A) (E)
41	T70177	1	O-Ring	(A) (E)
42	-	1	Part 42	(E)
43	19H3464	4	Screw	(E) 0.190" X 1-1/2"
44	-	1	Part 44	(E)
45	-	1	Part 45	(E)
46	R47151	1	O-Ring	(A) -10 SAE 5/8 in, Plug
47	T70177	1	O-Ring	(A) -6 SAE 3/8 in, Plug
48	R47150	1	O-Ring	(A) -8 SAE 1/2 in, Plug
49	T166275	3	O-Ring	(A) (E)
50	T70177	1	O-Ring	(A) -6 SAE 3/8 in, Plug
51	T166400	1	Orifice	-
52	M507T	4	Bolt	7.925 X 63.500 mm (5/16" X 2-1/2")
53	T118689	1	O-Ring	(A) -4 SAE 1/4 in, Plug
54	T166273	1	O-Ring	(A) -2 SAE 1/8 in, Plug
55	-	1	Part 55	(B)
56	-	1	Part 56	(B)
57	-	1	Part 57	(B)
58	-	1	Part 58	(B)
59	R47150	1	O-Ring	(A) (B)
60	T166280	1	Gasket	(A)
61	-	1	Part 61	(C) (D)
62	-	1	Part 62	(B)
63	AT178678	1	Seal Kit	Seal /Pump Control Includes All Parts Marked (A), NLA; ORDER AT428960
64	AT186257	1	Spool Kit	4 Way Includes All Parts Marked (B)
65	AT186255	1	Kit	Complete HP Limiter Includes All Parts Marked (C),(D), NLA, ORDER AT428960, SUB FOR AT186256 AND AT178680
66	AT186256	1	Kit	HP Limiter Includes All Parts Marked (D), NLA, ORDER AT428960
67	AT178680	1	Kit	Includes All Parts Marked (E) Ls Module, NLA, ORDER AT428960
68	AT197405	1	Control Kit	NLA; ORDER AT428960
68	AT428960	1	Hydraulic Pump	-
