Открытый узел

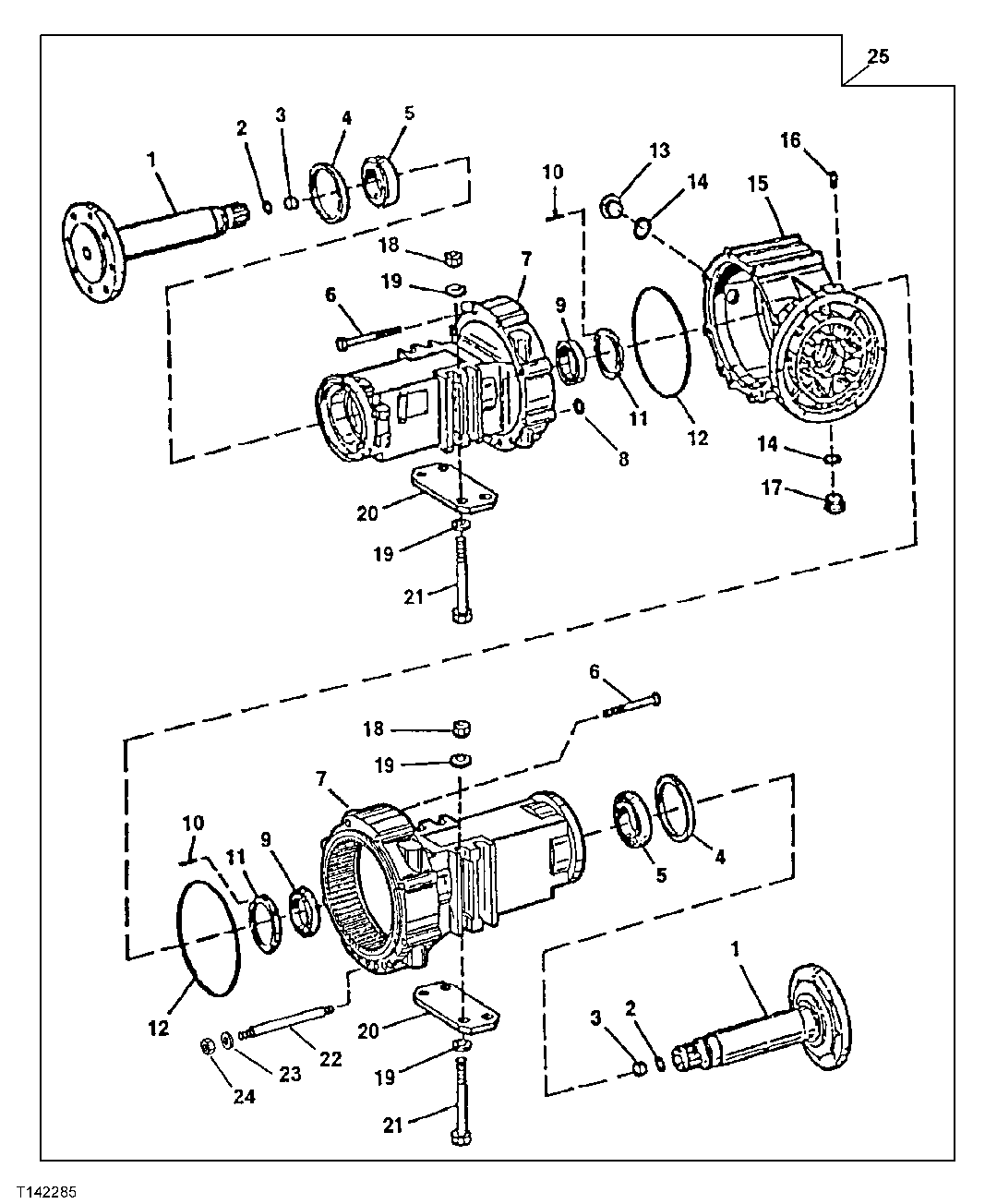

Differential Housing, Axle Housing and Shaft

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T154951	2	Shaft	-
2	R75384	1	SHIM	.3 mm
2	R75385	1	WASHER	3.0 mm
2	T183496	1	Solid Shim	2.0 mm
2	R75382	1	WASHER	1.0 mm
2	R75383	1	Shim	.5 mm
3	R79132	2	Pin	-
4	AT179502	2	Seal	-
5	AT179500	2	Tapered Roller Bearing	-
6	19M7677	16	Cap Screw	M16 X 240
7	AT179499	2	Housing	-
8	T159373	2	O-Ring	-
9	AT179501	2	Tapered Roller Bearing	-
10	T164844	2	Groove Pin	SUB FOR AT186927, ALSO ORDER T184401
11	T185444	2	Nut	SUB FOR T159371
12	T159362	2	O-Ring	-
13	15M7030	1	Pipe Plug	-
14	Z77164	2	O-Ring	SUB FOR L55580
15	T164998	1	Housing	(To Determine Rear Axle, Use First Six Numbers From The Original Rear Axle Serial Number)
15	T188279	1	Housing	(To Determine Rear Axle, Use First Six Numbers From The Original Rear Axle Serial Number)
16	AL32877	1	Vent	Breather
17	L56822	1	Pipe Plug	-
18	14M7315	8	Nut	M20
19	N231749	16	Washer	-
20	T147269	2	Plate	-
21	19M8001	8	Cap Screw	M20 X 260
22	T159388	4	Stud	-
23	T159386	4	Washer	-
24	T159389	4	Nut	-
25	-	1	Part 30	(To Determine Rear Axle, Use First Six Numbers From The Original Rear Axle Serial Number) Also Includes Planetary Pinion Carrier, Ring Gear Assembly, Differential Assembly With Lock, Service Brake, Park Brake and Input Yoke, (CA) AT192628 NLA, SUB AT330526
25	-	1	Part 31	(To Determine Rear Axle, Use First Six Numbers From The Original Rear Axle Serial Number) Also Includes Planetary Pinion Carrier, Ring Gear Assembly, Differential Assembly With Lock, Service Brake, Park Brake and Input Yoke, (CA) AT195908 NLA, SUB AT330527
25	AT330526	1	Rear Axle Reman	(To Determine Rear Axle, Use First Six Numbers From The Original Rear Axle Serial Number) Also Includes Planetary Pinion Carrier, Ring Gear Assembly, Differential Assembly With Lock, Service Brake, Park Brake and Input Yoke, MARKED AT192628
25	AT312680	1	Rear Axle	(To Determine Rear Axle, Use First Six Numbers From The Original Rear Axle Serial Number) NLA, ORDER AT330527
25	AT330527	1	Rear Axle Reman	(To Determine Rear Axle, Use First Six Numbers From The Original Rear Axle Serial Number) Also Includes Planetary Pinion Carrier, Ring Gear Assembly, Differential Assembly With Lock, Service Brake, Park Brake and Input Yoke, REMAN FOR AT312680 ALSO ORDER 19M8001,T147269,N231749 AND14M7315

Differential Housing, Axle Housing and Shaft

Нет текстового описания
