Открытый узел

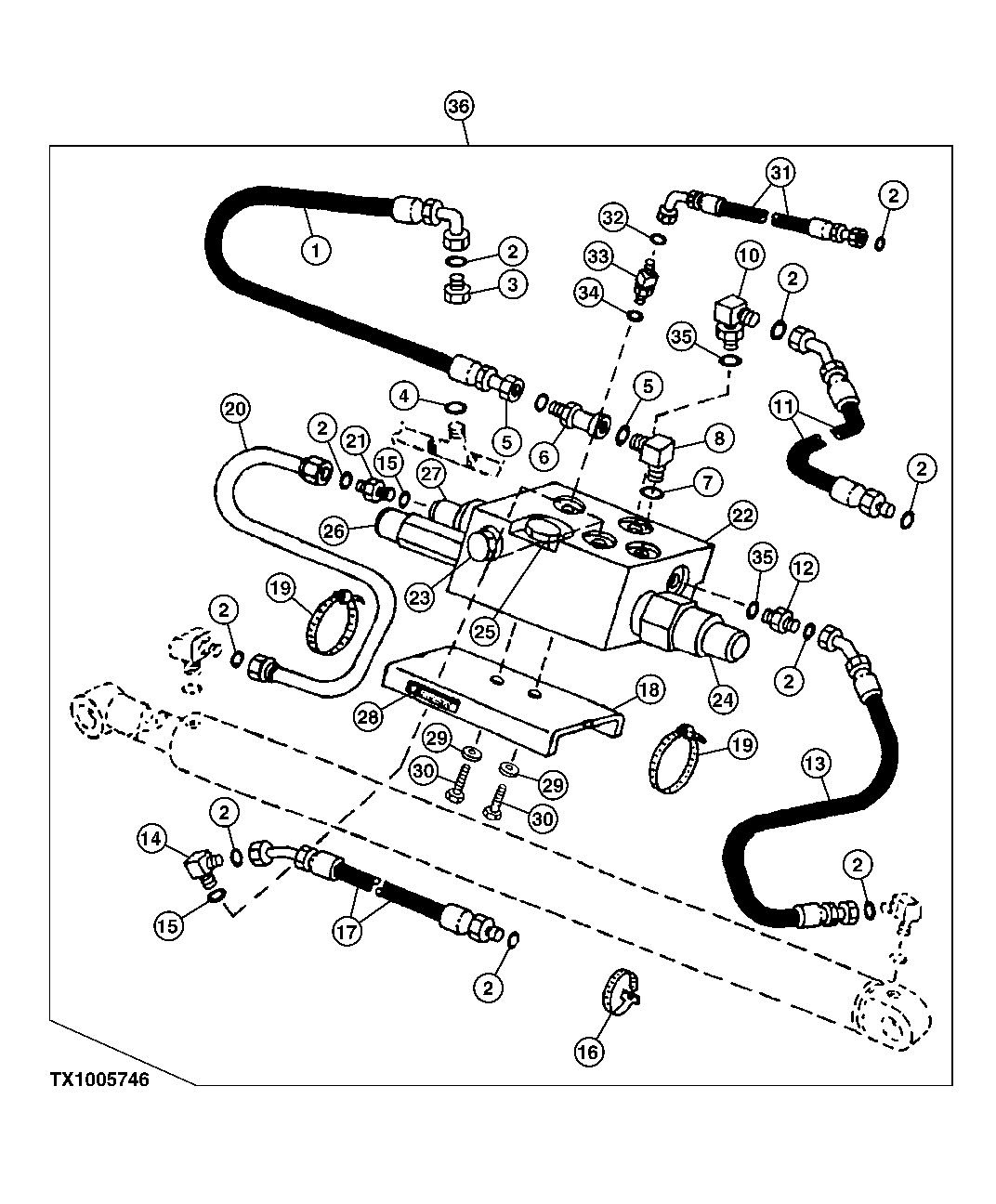

Controlled Load Lowering Device Kit (Crowd Cylinder)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT181510	1	Hydraulic Hose	13/16" X 762 mm (30") X 1", Port M
2	T77932	1	O-Ring	-
3	38H1482	1	Reducer	Return Line
4	T77858	1	O-Ring	-
5	T77857	2	O-Ring	Port M Hose End
6	38H1095	1	Elbow Fitting	Port M
7	R26375	1	O-Ring	Port M
8	38H1161	1	Adapter Fitting	Port M
9	T77858	1	O-Ring	Port A
10	38H1404	1	Elbow Fitting	Port A
11	AT181110	1	Hydraulic Hose	Port A
12	38H1329	1	Adapter Fitting	Port FB
13	AT181108	1	Hydraulic Hose	1" X 455 mm (18") X 1", Port FB
14	38H1006	1	Elbow Fitting	Port B
15	R26906	2	O-Ring	Port B Port ANN
16	R44302	1	Tie Band	Port A Port B Hose
17	AT181111	1	Hydraulic Hose	Port B
18	T161769	1	Plate	To Crowd Cylinder
19	TY22493	2	Hose Clamp	Mounting Plate
20	AT180206	1	Oil Line	Port ANN
21	38H1162	1	Adapter Fitting	Port ANN
22	AT175177	1	Hyd Actuated Control Valve	Controlled Load Lowering Device Crowd
23	-	1	Part 23	Controlled Load Lowering Device Adjustable
23	-	1	Part 24	Lock Nut Controlled Load Lowering Device Valve
24	AT180409	1	Hyd Actuated Control Valve	(470 PSI), Load Control
24	AT180083	1	Seal Kit	-
25	AT180079	1	Check Valve	-
25	AT180086	1	Seal Kit	-
26	AT180076	1	Pressure Relief Valve	(5000 PSI), Relief
26	AT180081	1	Seal Kit	-
27	AT180082	1	Seal Kit	-
27	AT180408	1	Hyd Actuated Control Valve	(470 PSI), Sequence
28	T161665	1	Label	Service Valve
29	24M7239	2	Washer	10.700 X 21 X 2.500 mm, Mounting Bracket Screws
30	19H1648	2	Cap Screw	3/8" X 3/4", Mounting Bracket
31	AT181146	1	Hydraulic Hose	9/16" X 1822 mm (71-3/4") X 9/16", Port D
32	T77814	1	O-Ring	Port D
33	38H1003	1	Elbow Fitting	Port D
34	R28782	1	O-Ring	Port D
35	U12547	2	O-Ring	Port FB Port A
36	AT178797	1	Kit	Also Includes Additional Hydraulic Hoses, Fittings and Miscellaneous Parts, (WHOLE GOODS)

Controlled Load Lowering Device Kit (Crowd Cylinder)

Нет текстового описания
