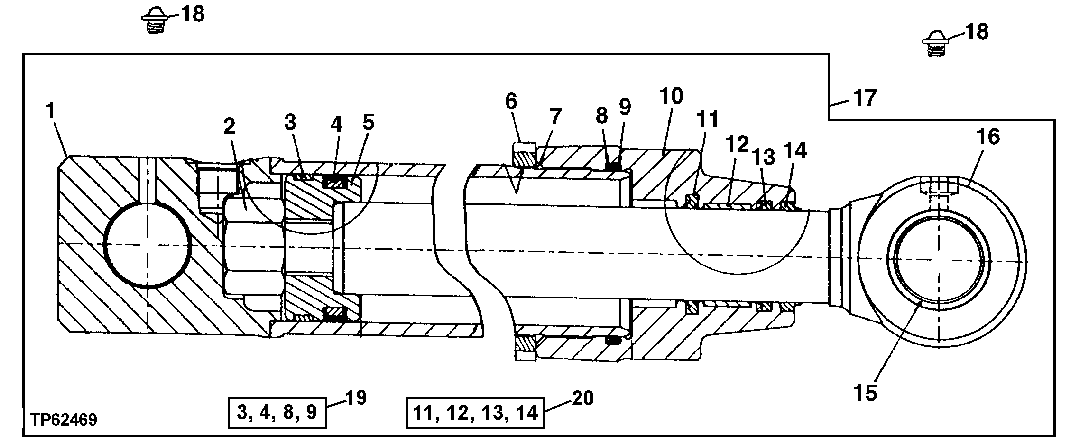

Bucket Cylinder and Repair Kit ( - 926799)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH150211	1	Hydraulic Cylinder Barrel	-
2	H151815	1	Nut	-
3	R81775	1	Wear Ring	-
4	RE20343	1	Seal	-
5	H151893	1	Piston	Four Piece Seal Piston
5	HC16781	1	Piston	Two Piece Seal Piston
6	H180430	1	Nut	SUB FOR APPL H151892
7	H154382	1	O-Ring	-
8	H152065	1	Back-Up Ring	-
9	E49244	1	O-Ring	SUB FOR H154383
10	H155740	1	Hydr. Cylinder Rod Guide	Use with Four Piece Seal Piston
10	H173650	1	Hydr. Cylinder Rod Guide	Use with Two Piece Seal Piston
11	AH146563	1	Seal	-
12	H152796	1	Wear Ring	-
13	H152205	1	Seal	-
14	AH146559	1	Seal	-
15	H180402	1	Bushing	SUB FOR H154269
16	AH146318	1	Hydraulic Cylinder Rod	-
17	AH220526	1	Hydraulic Cylinder	NLA; ORDER AHC15705
17	AH206726	1	Hydraulic Cylinder	NLA; ORDER AHC15705
17	AH219638	1	Hydraulic Cylinder	Components on Separate Page, NLA; ORDER AHC15705
17	AHC15705	1	Hydraulic Cylinder	Components on Separate Page, ALSO ORDER 38H5166, T77932, 51M7047
17	38H5166	1	Elbow Fitting	-
17	T77932	1	O-Ring	-
17	51M7047	1	O-Ring	23.600 X 2.900 mm
18	T162396	2	Lubrication Fitting	-
19	AH149815	1	Hydraulic Cylinder Kit	Rod Seal Kit, NLA; ORDER AHC13362
19	AHC13362	1	Hydraulic Cylinder Kit	Rod Seal Kit
20	AH212102	1	Hydraulic Cylinder Kit	Bore Seal Kit, NLA; ORDER AHC19515
20	AH212101	1	Hydraulic Cylinder Kit	Bore Seal Kit, NLA; ORDER AHC19515
20	AHC19515	1	Hydraulic Cylinder Kit	Bore Seal Kit
