Auxiliary Section (Selective Flow Solenoid) (Backhoe Valve)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT323341	1	Flow Control Hyd. Valve	SUB FOR AT191721
1	AT191721	1	Flow Control Hyd. Valve	NLA, ORDER AT323341
2	AT323340	1	Solenoid Kit	EHP Solenoid With Connector
2	AT178467	1	Solenoid Kit	EHP Solenoid With Connector
3	19H3095	2	Screw	1/4" X 2-3/4"
4	AT192235	1	Kit	EHP Block With Solenoid
5	R111532	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
5	R111532	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
6	-	1	Part 9	-
7	-	1	Part 10	-
8	-	1	Part 11	-
9	-	1	Part 12	-
10	-	1	Part 13	-
11	T161835	1	Compression Spring	-
12	-	1	Part 15	-
13	R95493	1	Disk	-
14	T118685	1	O-Ring	88.494 X 3.531 mm (3-31/64" X 0.139")
15	R27175	1	Drain Plug	-
16	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
17	-	1	Part 20	-
18	T186013	1	O-Ring	-
19	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
20	-	1	Part 23	-
21	-	1	Part 24	-
22	-	1	Part 25	-
23	-	1	Part 26	-
24	T160663	1	Plunger	-
25	-	1	Part 28	-
26	-	1	Part 29	-
27	-	1	Part 30	-
28	AT192080	1	Stop Kit	Spool Stop
28	T185999	1	Compression Spring	-
28	AT323342	1	Stop Kit	-
29	AT184547	1	Pressure Relief Valve	2900 psi
30	-	1	Part 35	-
31	-	1	Part 36	-
32	-	1	Part 37	-
33	-	1	Part 38	-
34	-	1	Part 39	-
35	-	1	Part 40	-
36	-	1	Part 41	-
37	AT314538	1	Seal Kit	7/8 in., Relief Valve Seal Kit, SUB FOR AT189413
38	-	1	Part 43	-
39	-	2	Part 44	-
40	AT178468	1	Seal Kit	EHP Seal Kit

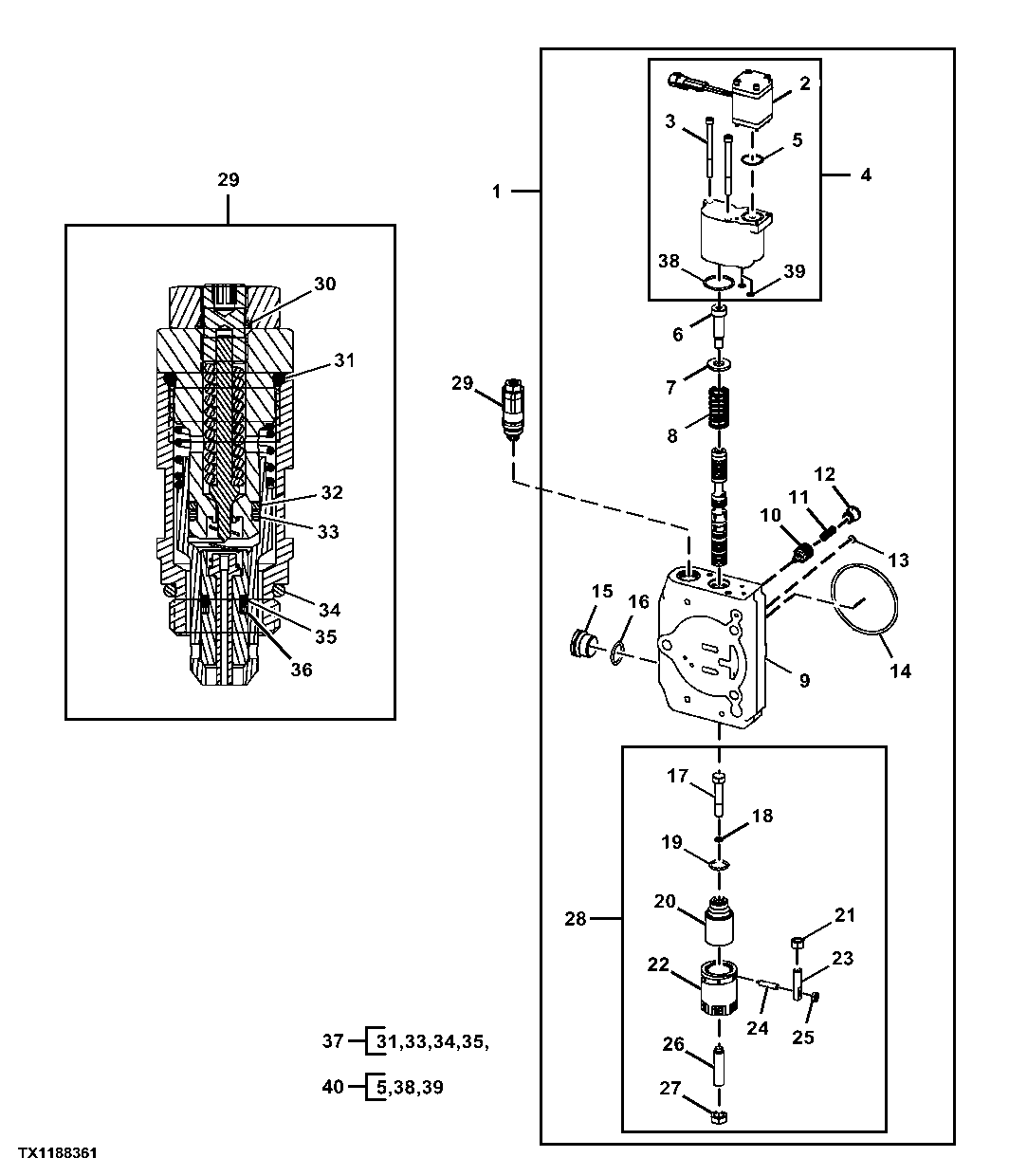

Auxiliary Section (Selective Flow Solenoid) (Backhoe Valve)
