Stabilizer Cylinder (RH) (Marked AH148675)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH148677	1	Hydraulic Cylinder Barrel	LH, NLA; ORDER AHC14418
2	19M8353	1	Cap Screw	M30 X 80
3	H145175	1	Washer	-
4	R81775	1	Wear Ring	-
5	RE20343	1	Seal	-
6	H145456	1	Piston	-
7	H157978	1	Hydr. Cylinder Rod Guide	Threaded, USE WITH AH148674 AND AH148675
8	R83577	1	O-Ring	-
9	R81862	1	Back-Up Ring	-
10	AH146561	1	Seal	-
11	H152203	1	Seal	-
12	R81787	1	Snap Ring	-
13	R91731	1	Ring	-
14	H152794	1	Wear Ring	-
15	AH146557	1	Seal	-
16	R81793	1	Nut	-
17	H154404	1	Bushing	-
18	AH147902	1	Hydraulic Cylinder Rod	-
19	AH148675	1	Hydraulic Cylinder	RH, NLA, ORDER AHC14418
19	AH219542	1	Hydraulic Cylinder	RH, NLA, ORDER AHC14418
19	AHC14418	1	Hydraulic Cylinder	LH Components On Separate Page, ALSO ORDER 38H1160, 38H1004, R26448 AND T77613 SUB FOR AH148674 AND AH219541
19	38H1160	1	Adapter Fitting	-
19	38H1004	1	Elbow Fitting	-
19	R26448	1	O-Ring	-
19	T77613	1	O-Ring	-
20	T162396	1	Lubrication Fitting	SUB FOR JD7798
21	AH148164	1	Hydraulic Cylinder Kit	Rod, NLA; ORDER AHC16954
21	AH212101	1	Hydraulic Cylinder Kit	Bore, NLA; ORDER AHC19515
21	AH149844	1	Seal Kit	Bore, NLA; ORDER AHC19515
21	AHC19515	1	Hydraulic Cylinder Kit	Bore
22	AH148164	1	Hydraulic Cylinder Kit	Rod, NLA; ORDER AHC16954
22	AH210484	1	Hydraulic Cylinder Kit	Rod, NLA; ORDER AHC16954
22	AHC16954	1	Hydraulic Cylinder Kit	Rod

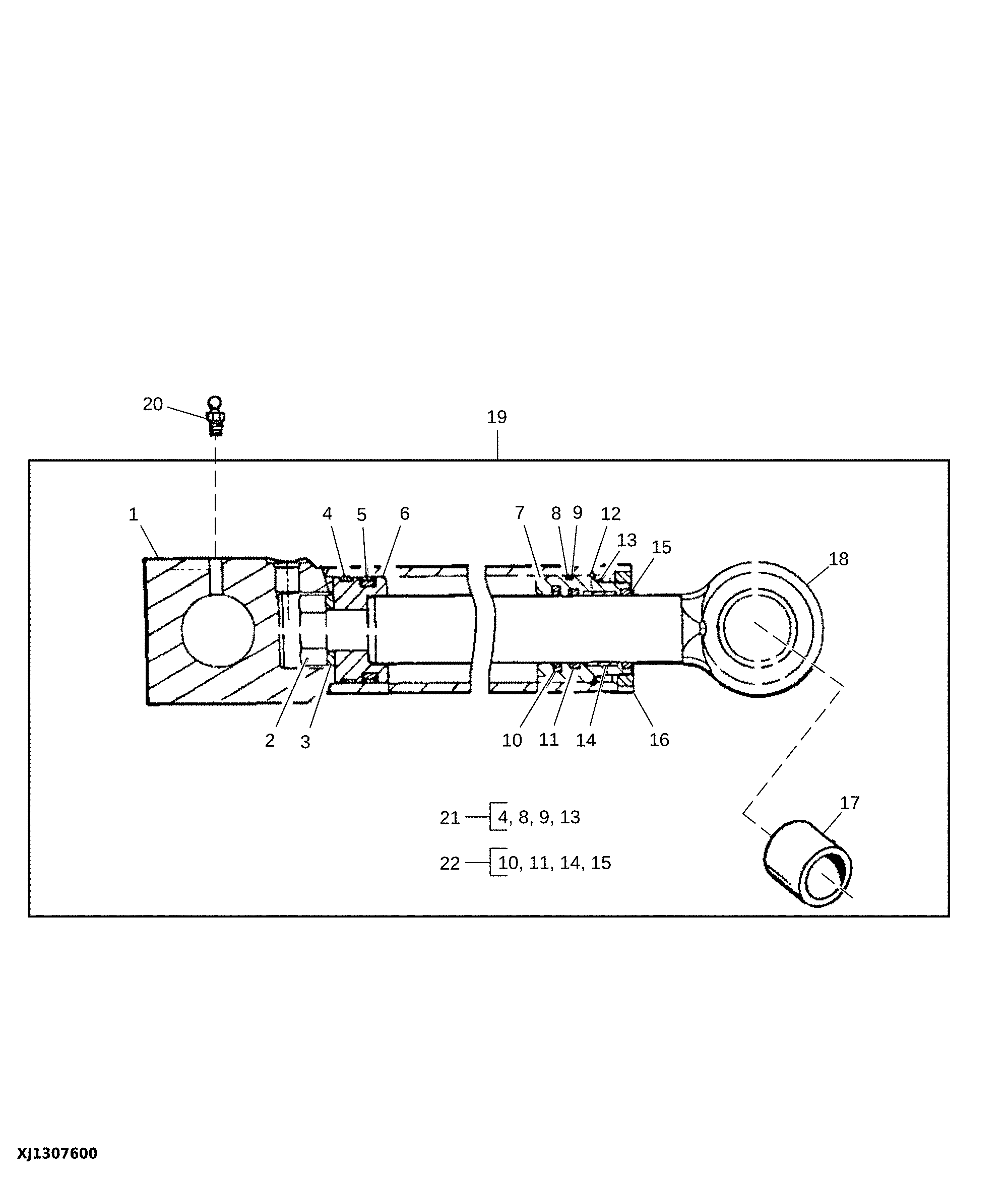

Stabilizer Cylinder (RH) (Marked AH148675)
