Открытый узел

Seat, Seat Belts and Arm Rest

Seat, Seat Belts and Arm Rest

Seat, Seat Belts and Arm Rest

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

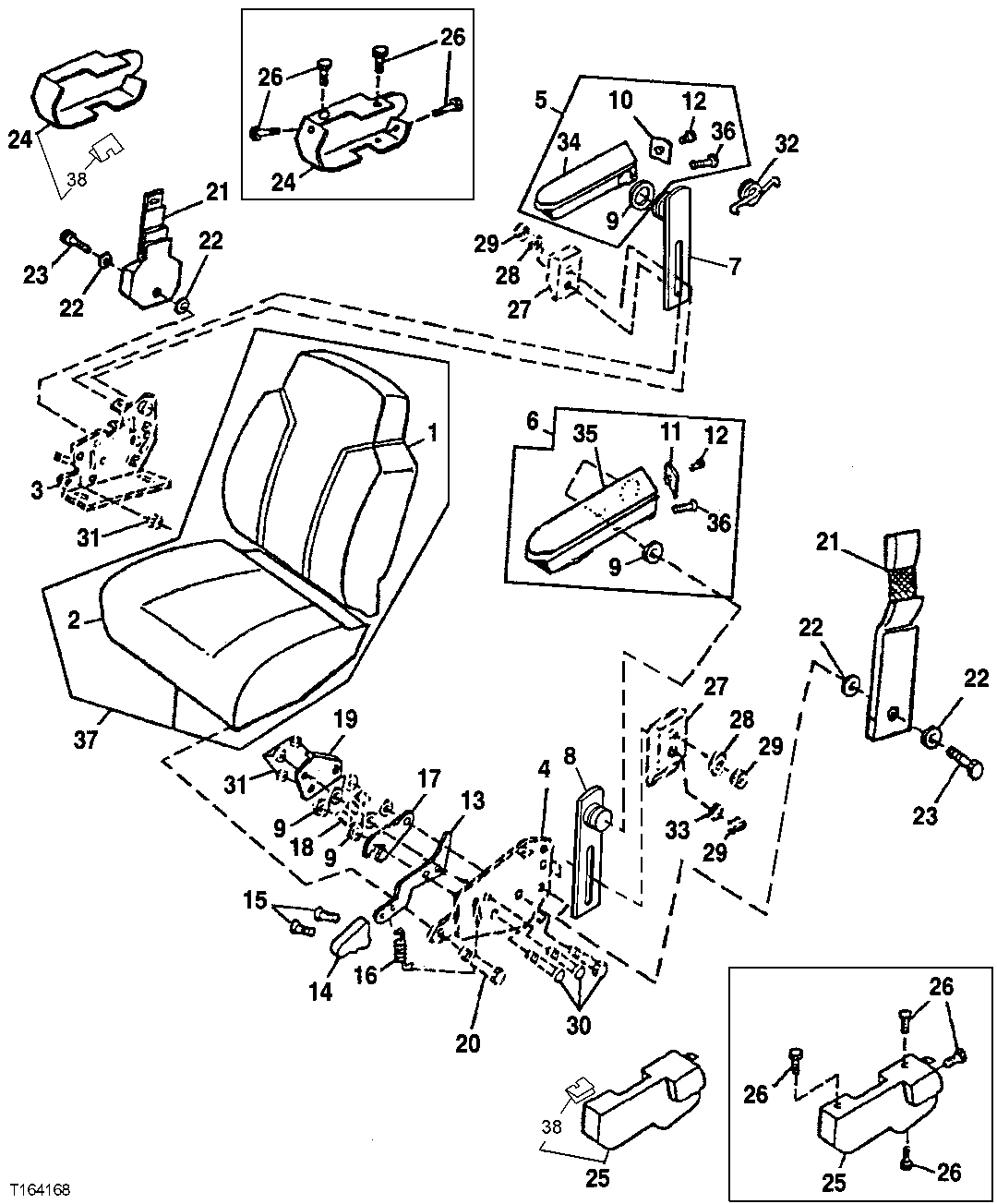

Seat, Seat Belts and Arm Rest

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT221016	1	Pad	Back Pad Vinyl, SUB FOR AT209028
1	AT209015	1	Cushion	Back Pad Cloth
1	T171686	4	Clip	-
2	AT209014	1	Cushion	Seat Bottom Pad Cloth
2	AT221015	1	Seat	Seat Bottom Pad Vinyl, SUB FOR AT209027
3	-	1	Part 6	(RIGHT BACKREST ANGLE ADJUSTMENT)
4	-	1	Part 7	(LEFT BACKREST ANGLE ADJUSTMENT)
5	AT312730	1	Armrest Kit	(SUB FOR AT179682, AT183637 AND AT186152) (RIGHT HAND)
6	AT312728	1	Armrest Kit	(SUB FOR AT179684, AT183638 AND AT186156) (LEFT HAND)
7	AT190901	1	Bracket	(RH ARM REST ASSEMBLY)
8	AT190902	1	Bracket	(LH ARM REST ASSEMBLY)
9	T120545	2	Washer	Wave
10	T166226	1	Plate	(RH COVER PLATE)
11	T166227	1	Plate	(LH COVER PLATE)
12	T120543	2	Screw	Set Screw
13	AT209225	1	Seat Knob Kit	(RECLINER KIT) (INCLUDES EXTENSION SPRING, TORSION SPRING, BACKING PLATE, LATCH, SPACERS AND HARDWARE)
13	-	1	Part 17	-
14	AT209025	1	Seat Knob Kit	Knob and Screw Recliner
15	37H121	2	Screw	Recliner Knob
16	-	1	Part 20	Tilt Lever
17	-	1	Part 21	(RECLINER-SAW TOOTH)
18	-	3	Part 22	Tilt Lever, (BETWEEN SMALL AND LARGE PLATE)
19	-	1	Part 23	(SMALL 3 HOLE INSIDE PLATE)
20	-	2	Part 24	Tilt Lever
21	AT308199	1	Seat Belt	3in., (ALSO ORDER (4) T105740 AND (2) 19H2109) (SUB FOR AT178065)
21	AT179425	1	Seat Belt	3in. , (USE IF AVAILABLE) (ALSO ORDER (4) T105740 AND (2) 19H2109) (SUB AT308199)
21	AT172910	1	Seat Belt	2in., (SUB FOR AT179423) (ALSO ORDER (4) T105740 AND (2) 19H2109)
22	T105740	4	Washer	11.400 X 25.400 X 2.286 mm (0.449" X 1" X 0.090"), Seat Belt
23	19H2109	2	Cap Screw	7/16" X 1-1/4", Seat Belt
24	T163634	1	Cover	Requires Screws, (SEAT BELT RIGHT)
24	T160896	1	Cover	(SEAT BELT RIGHT) (SNAPS ON)
25	T163633	1	Cover	Requires Screws, (SEAT BELT LEFT)
25	T160895	1	Cover	(SEAT BELT LEFT) (SNAPS ON)
26	19M7402	8	Cap Screw	M10 X 25, (COVERS)
27	-	2	Part 35	-
28	-	4	Part 36	-
29	-	4	Part 37	-
30	-	4	Part 38	-
31	-	3	Part 39	Recliner
32	-	1	Part 40	-
33	-	2	Part 41	-
34	-	1	Part 42	(RH)
35	-	1	Part 43	(LH)
36	T120544	2	Screw	-
37	AT175383	1	Seat Suspension	(DELUXE VINYL) (ALSO INCLUDES SEAT SWIVEL CONTROL, HEIGHT ADJUSTER, FORE AND AFT CONTROL AND SEAT SUSPENSION). (WHEN SUSPENDED SEAT ASSEMBLY IS REPLACING A NON-SUSPENDED SEAT), (ALSO ORDER (AT179693), TETHER BELT ASSEMBLY)
37	AT175384	1	Seat Suspension	(DELUXE CLOTH) ALSO INCLUDES SEAT SWIVEL CONTROL, HEIGHT ADJUSTER, FORE AND AFT CONTROL AND SEAT SUSPENSION. (WHEN SUSPENDED SEAT ASSEMBLY IS REPLACING A NON SUSPENDED SEAT, (ALSO ORDER AT179693 TETHER BELT ASSEMBLY)
37	AT175532	1	Seat	(NON SUSPENSION (VINYL) ALSO INCLUDES SEAT SWIVEL CONTROL, HEIGHT ADJUSTER, FORE AND AFT CONTROL). (W/O SEAT SUSPENSION)
37	AT183588	1	Seat	Deluxe Vinyl Air Suspension Seat
37	AT182471	1	Seat	Deluxe Cloth Air Suspension Seat
38	-	1	Part 50	-
