Multi-Purpose Bucket Moldboard, Cutting Edge and Hinge ( - 881677)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T128534	2	Bushing	25.743 X 34.989 X 25.400 mm (1.013" X 1.378" X 1")
2	T167059	2	Pin	(SUB FOR T128535)
3	19H2106	2	Cap Screw	7/16" X 2-3/4"
4	K40006	2	Lock Nut	11.125 mm (7/16")
5	-	1	Part 5	(SUB AT179981)
6	T128533	4	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
7	T143802	1	Cutting Edge	2337mm, 92in., and 1.25m
8	T128538	1	Cutting Edge	(2337mm, 92in. and 1.25m
9	-	1	Part 9	(SUB AT179981)
10	T143679	1	Dura-Max Cutting Edge	2337mm, 92in., and 1.25m
11	T126774	1	Dura-Max Cutting Edge	5/8 Thick X 8in. DBF X 97in., (AUXILIARY) (ALSO ORDER (8) 14H1039, (8) 24M7241 AND (8) 09H1759)
11	T84194	1	Cutting Edge	3/4 Thick X 8in.DBF X 92 3/8in., (AUXILIARY) (ALSO ORDER (8) 14H1039, (8) 24M7241 AND (8) 09H1764)
12	24H1367	1	Washer	21/32" X 1-1/4" X 1/4"
13	T23P	1	Pin	-
14	T230SP	1	Tooth	-
15	T221X230	1	Bucket Tooth Adapter	-
16	19H2599	1	Cap Screw	5/8" X 2-1/2"
17	19H3244	1	Cap Screw	5/8" X 2-1/4"
18	09H1759	1	Bolt	5/8" X 2-1/4"
18	09H1764	1	Bolt	5/8" X 2-1/2"
18	09H1757	1	Bolt	5/8" X 2-3/4"
19	14H1039	1	Nut	5/8"
20	K40015	8	Lock Nut	15.875 mm (5/8")
21	24M7241	1	Washer	17 X 34 X 4 mm
22	09H1776	8	Bolt	-
22	09H1775	8	Bolt	-
23	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"

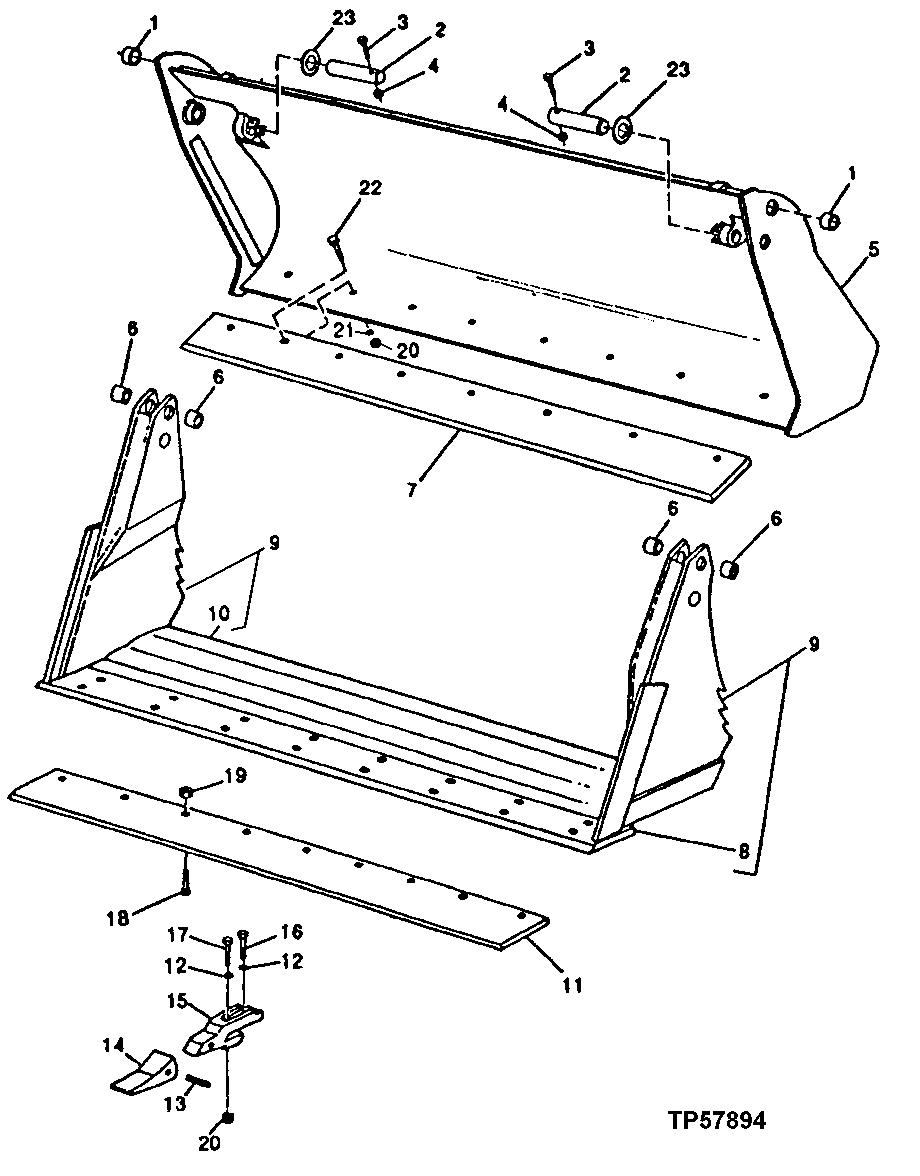

Multi-Purpose Bucket Moldboard, Cutting Edge and Hinge ( - 881677)
