Multi-Purpose Bucket, Bucket Cylinder and Hydraulic Oil Lines (881678 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A24073	8	Bushing	25.400 X 31.750 X 19.812 mm (1" X 1-1/4" X 0.780")
1	-	2	Part 1	(AT190880 NLA) (SUB (2) AH210737, (2) T191318 AND (6) 24H1138)
2	24M7239	2	Washer	10.700 X 21 X 2.500 mm
3	AT190900	2	Pin	-
4	T54568	2	Lock Nut	9.525 mm (3/8")
5	19H3239	2	Cap Screw	3/8" X 1-1/4"
6	AT189822	2	Hydraulic Hose	2337mm, 92in. 1.25m , Rod End Fabricate
7	T77857	11	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	38H1095	1	Elbow Fitting	-
9	AT189819	2	Line	Oil, NLA; ORDER AT448019
9	AT448019	2	Line	Oil
10	H135156	6	Clamp	-
11	H121168	3	Plate	-
12	19H3552	3	Cap Screw	5/16" X 1-1/2"
13	AT190701	2	Hydraulic Hose	2337mm 92in. 1.25m , Head End Fabricate
14	38H1521	2	Elbow Fitting	-
15	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	11M7030	2	Cotter Pin	5 X 40 mm
17	24H1138	2	Washer	1-1/16" X 2" X 0.134"
18	38H1314	2	Elbow Fitting	-
19	-	2	Part 21	T185041 NLA; SUB FOR T128536, (2) T191318 AND (6) 24H1138
20	T166433	2	Bushing	SUB FOR T166390
21	AT172386	2	Hydraulic Hose	13/16" X 1169 mm (46") X 1"
22	19H2633	1	Cap Screw	3/8" X 1-1/2"
23	24M7106	1	Washer	10 X 18 X 2.500 mm
24	T27022	1	Clamp	-
25	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
26	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
27	T167059	2	Pin	-
28	19H2106	2	Cap Screw	7/16" X 2-3/4"
29	K40006	2	Lock Nut	11.125 mm (7/16")
30	AT308195	1	Multi-Purpose Bucket	WHOLE GOODS

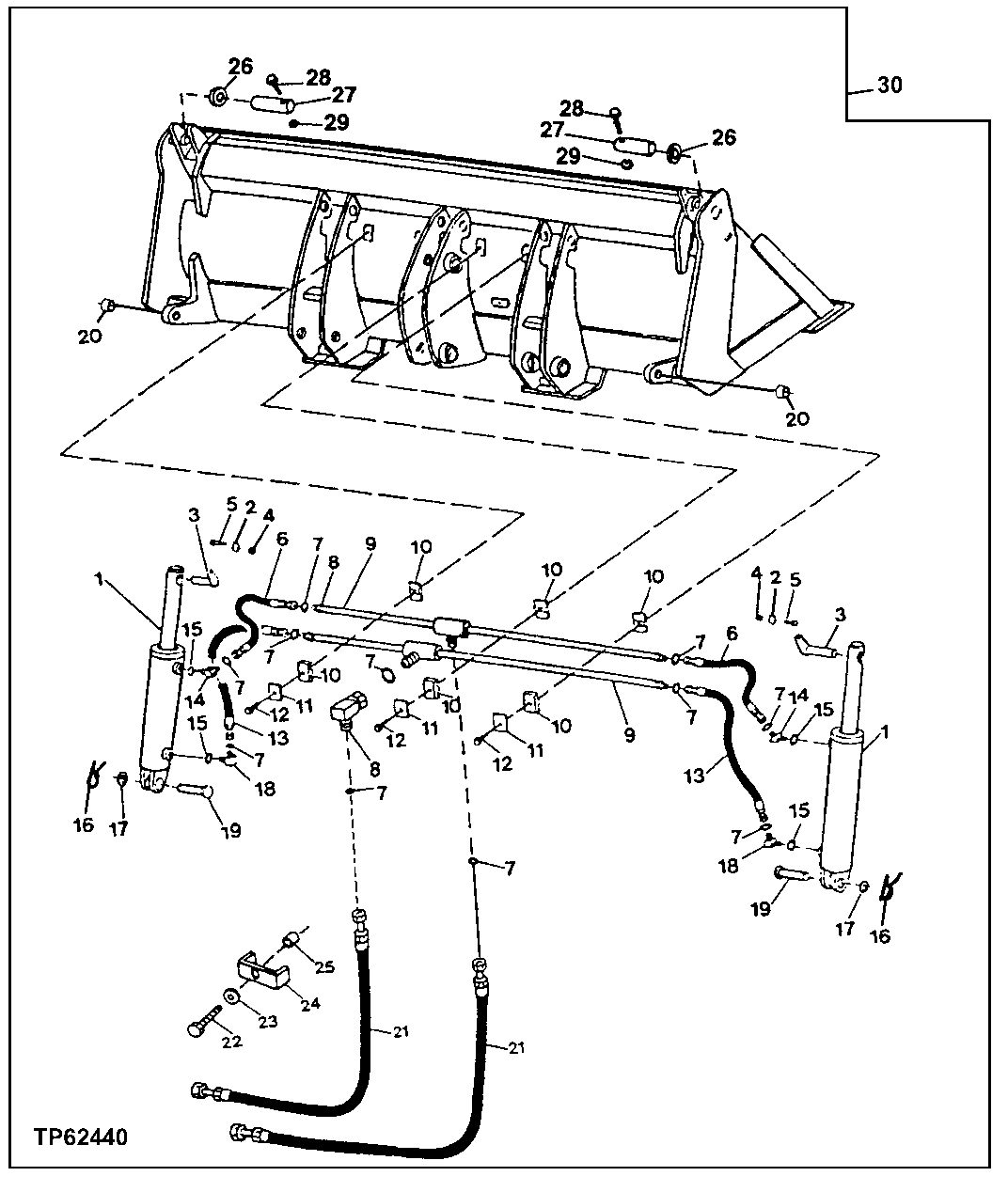

Multi-Purpose Bucket, Bucket Cylinder and Hydraulic Oil Lines (881678 - )
