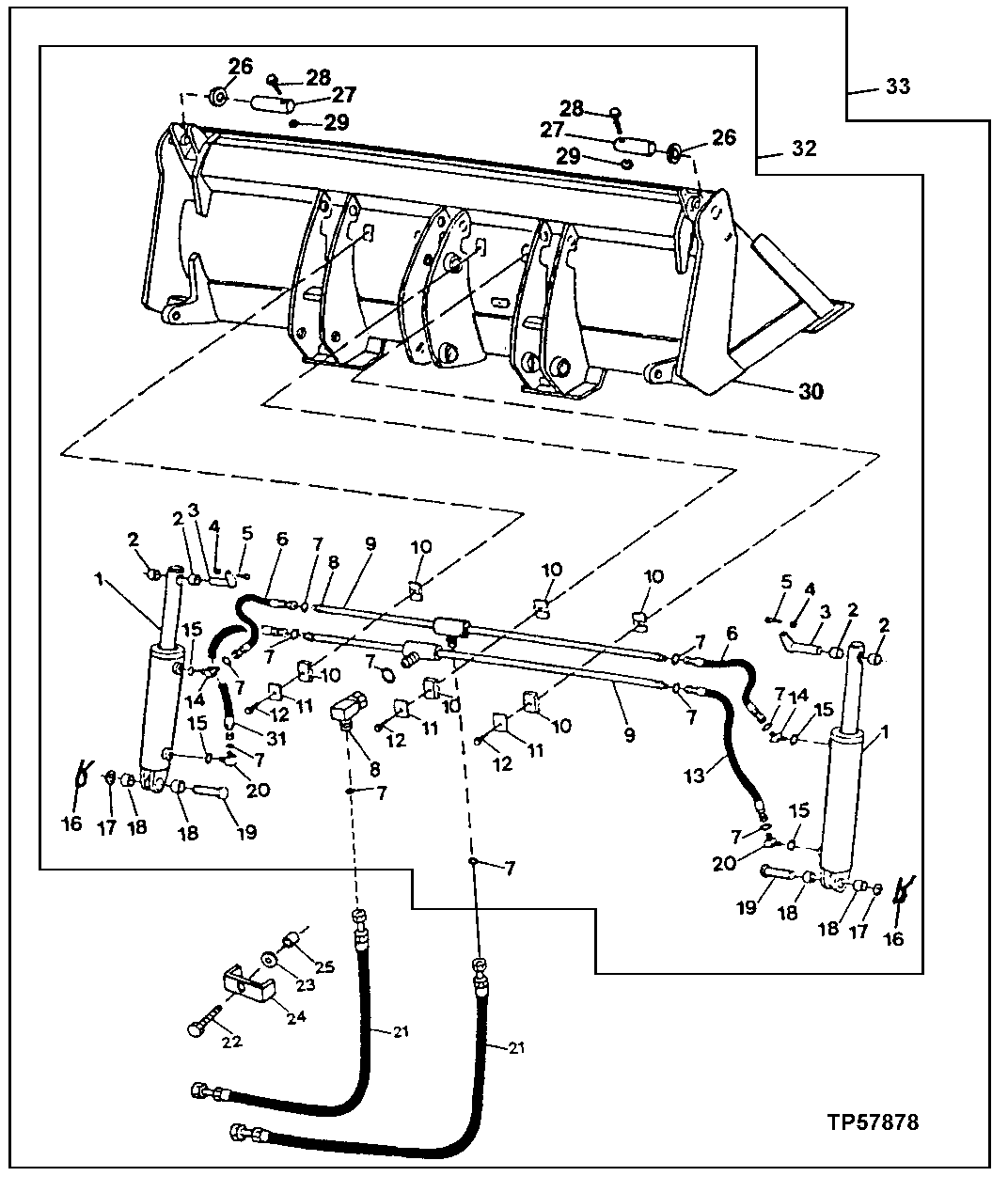

Multi-Purpose Bucket, Bucket Cylinder and Hydraulic Oil Lines ( - 881677)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A24073	8	Bushing	25.400 X 31.750 X 19.812 mm (1" X 1-1/4" X 0.780"), (USE WITH AT190880)
1	-	2	Part 1	(AT190880 NLA) (SUB FOR AT179640 AND AT182266) (SUB AH210737, T191318 AND (3) 24H1138)
2	T128532	4	Bushing	26.289 X 34.798 X 19.050 mm (1.035" X 1.370" X 3/4")
3	AT190900	2	Pin	(SUB FOR AT142584 AND AT188305)
4	T54568	2	Lock Nut	9.525 mm (3/8")
5	19H2676	2	Cap Screw	3/8" X 1"
6	AT179975	2	Hydraulic Hose	(2337mm) (92in.) (1.25m) , (ROD END) (LEFT AND RIGHT SIDE)
7	T77857	11	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	38H1095	2	Elbow Fitting	-
9	AT179960	2	Oil Line	-
10	H135156	6	Clamp	-
11	H121168	3	Plate	-
12	19H2661	3	Cap Screw	5/16" X 1-3/8"
13	AT179983	1	Hydraulic Hose	(2337mm) (92in.) (1.25m) , HEAD END (RIGHT SIDE)
14	38H1521	2	Elbow Fitting	-
15	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	11M7030	2	Cotter Pin	5 X 40 mm
17	24H1138	2	Washer	1-1/16" X 2" X 0.134"
18	H26895	4	Bushing	25.476 X 31.750 X 15.418 mm (1.003" X 1-1/4" X 0.607"), (SUB FOR T128531, THIS APPLICATION)
19	-	2	Part 20	(T185041 NLA) (SUB FOR T128536) (SUB (2) T191318 AND (6) 24H1138)
20	38H1314	2	Elbow Fitting	-
21	AT172386	2	Hydraulic Hose	13/16" X 1169 mm (46") X 1"
22	19H2633	1	Cap Screw	3/8" X 1-1/2"
23	24M7106	1	Washer	10 X 18 X 2.500 mm
24	T27022	1	Clamp	-
25	28H3383	1	Bushing	0.493" X 0.675" X 3/4", (SUB FOR T126050)
26	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
27	T167059	2	Pin	(SUB FOR T128535)
28	19H2106	2	Cap Screw	7/16" X 2-3/4"
29	K40006	2	Lock Nut	11.125 mm (7/16")
30	-	1	Part 31	(SUB AT179981)
31	AT179984	1	Hydraulic Hose	(2337mm) (92in.) (1.25m) , (ROD END) (LEFT SIDE)
32	-	1	Part 33	2337mm, 92in , (AT175047 NLA) (SUB AT179981)
33	AT179981	1	Multi-Purpose Bucket	2337mm, 92in., and 1.25m , INCLUDES (T160759) (LABEL), (R44302) (BAND)

Multi-Purpose Bucket, Bucket Cylinder and Hydraulic Oil Lines ( - 881677)

Нет текстового описания
