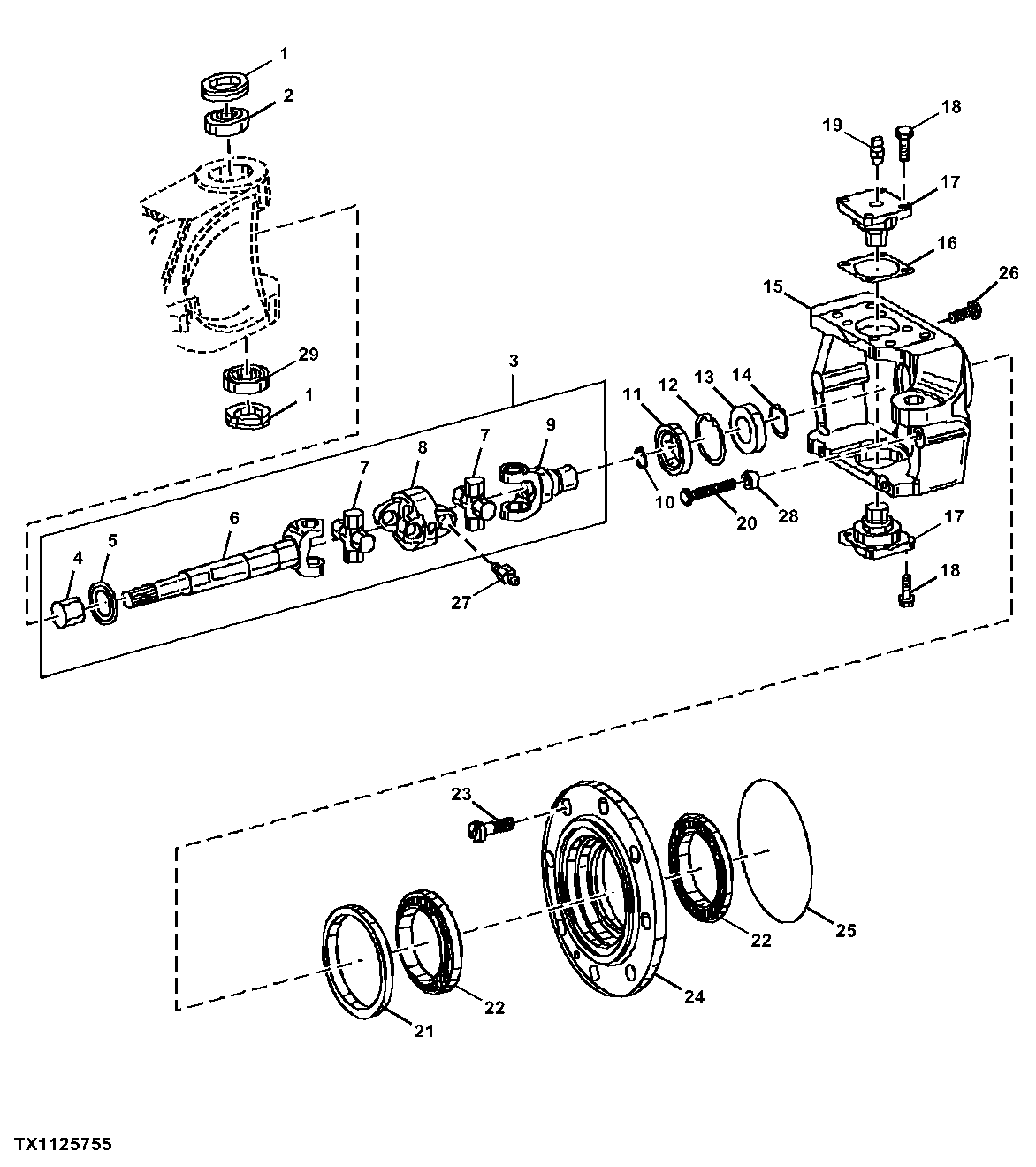

Front Axle Housing Hubs and Universal Joints with MFWD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL79902	2	Seal	-
2	AT339808	1	Tapered Roller Bearing	SUB FOR AL79901
3	AT167118	1	Universal Driveshaft	LH
3	AT167119	1	Universal Driveshaft	RH
4	L100636	1	Bushing	-
5	L100635	1	Sheet	-
6	T153722	1	Shaft	LH
6	T153721	1	Shaft	RH Not Illustrated
7	L100632	2	Cross And Bearing Assembly	-
8	L100633	1	Yoke	-
9	T153720	1	Universal Joint	-
10	L40276	1	Snap Ring	-
11	AL79951	1	Seal	-
12	40M5099	1	Snap Ring	-
13	L224170	1	Ball Bearing	SUB FOR R115119
14	T151264	1	Snap Ring	-
15	T251386	1	Housing	LH, SUB FOR T151088
15	T251385	1	Housing	RH, SUB FOR T151087
16	L100107	1	Shim	TK = 1.0 mm
16	L100105	1	Shim	TK = 0.6 mm
16	L100109	1	Shim	TK = 1.60 mm , ORDER L100105 AND L100107
16	L100106	1	Shim	TK = 0.80 mm
16	T166146	1	Shim	TK = 1.30 mm
16	T166147	1	Shim	TK = 1.20 mm
16	T166145	1	Shim	TK = 0.90 mm
16	T166149	1	Shim	TK = 0.70 mm
16	T166150	1	Shim	TK = 0.50 mm
16	L100102	1	Shim	TK = 0.20 mm
16	T166148	1	Shim	TK = 1.10 mm
17	T188397	2	Pin	SUB FOR T151074, THIS APPLICATION ALSO ORDER 58M5573
18	19M8011	8	Cap Screw	M12 X 30
19	58M5573	2	Lubrication Fitting	-
20	L114573	1	Screw	-
21	AL79950	1	Seal	-
22	JD10249	2	Tapered Roller Bearing	-
23	L55598	8	Wheel Bolt	-
24	L100238	1	Hub	-
25	L40317	1	O-Ring	-
26	L169270	8	Cap Screw	Ring Gear To Housing
27	58M5574	2	Lubrication Fitting	-
28	14M7345	1	Nut	M14
29	AT339808	1	Tapered Roller Bearing	SUB FOR AL79901
29	JD8267	1	Bearing Cup	-

Front Axle Housing Hubs and Universal Joints with MFWD
