Extension Cylinder Hydraulics (Extendable Dipperstick)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26448	1	O-Ring	-
2	AT172330	1	Hydraulic Hose	13/16" X 2052 mm (80-3/4") X 13/16", (USE WITH AH175183)
2	AT280514	1	Hydraulic Hose	Fabricate, (USE WITH AH206600 AND AH209719)
3	T105774	4	Guide	-
4	AR21841	1	Clamp	-
5	19M7513	1	Cap Screw	M8 X 30
6	24M7238	2	Washer	8.700 X 17 X 2 mm
7	T74416	1	Clamp	-
8	R54701	1	Spacer	-
9	R26375	1	O-Ring	-
10	38H1005	1	Elbow Fitting	-
11	T77857	7	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
12	AT172156	1	Hydraulic Hose	13/16" X 705 mm (27-3/4") X 13/16", Fabricate
13	R46919	8	Half Clamp	-
14	28H3383	1	Bushing	0.493" X 0.675" X 3/4", (SUB FOR T126050)
15	24M7396	4	Washer	21 X 34 X 3 mm
16	19M7742	1	Cap Screw	M10 X 65
17	AT179238	2	Hydraulic Hose	Fabricate
18	T29342	1	Washer	13.487 X 31.750 X 4.572 mm (17/32" X 1-1/4" X 0.180")
19	38H1323	2	Elbow Fitting	-
20	T78716	2	Nut	20.625 mm (13/16")
21	AT178413	2	Hydraulic Hose	13/16" X 1199 mm (47-1/4") X 1"
22	T77932	6	O-Ring	-
23	AT174475	1	Oil Line	Upper Tube, (USE WITH AT170932 OR AT345611)
23	AT195810	1	Oil Line	(USE WITH AT196370 OR AT345611)
24	AT174476	1	Oil Line	Lower Tube, (USE WITH AT170932 OR AT345611)
24	AT195811	1	Oil Line	(USE WITH AT196370 OR AT345611)
25	AT177613	2	Hydraulic Hose	1" X 1169 mm (46") X 1"
26	38H1162	2	Adapter Fitting	-
27	R26906	2	O-Ring	-
28	38H1173	1	Adapter Fitting	(USE WITH AH175183)
28	RE69197	1	Fitting	(USE WITH AH209719) (ALSO ORDER (2) R26448)
29	19M7550	6	Cap Screw	M10 X 35
30	24M7239	8	Washer	10.700 X 21 X 2.500 mm
31	28H3381	2	Spacer	0.493" X 0.675" X 5/8", (SUB FOR T126052, THIS APPLICATION)
32	AR21839	2	Clamp	-
33	T159829	2	Bracket	(USE WITH AT170932)
33	T188183	2	Angle	(USE WITH AT196370)
34	14M7274	4	Nut	M10
35	-	4	Part 40	(SPLIT) (MAKE FROM T100484, CUT TO 40mm LENGTH) (SUB FOR T161616)
36	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
38	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (USE WITH AH175183)
38	R26375	1	O-Ring	(USE WITH AH206600 AND AH209719)
39	AT178798	1	Kit	(WHOLE GOODS)
37A	R46919	2	Half Clamp	-
37B	T160548	2	Clamp	-

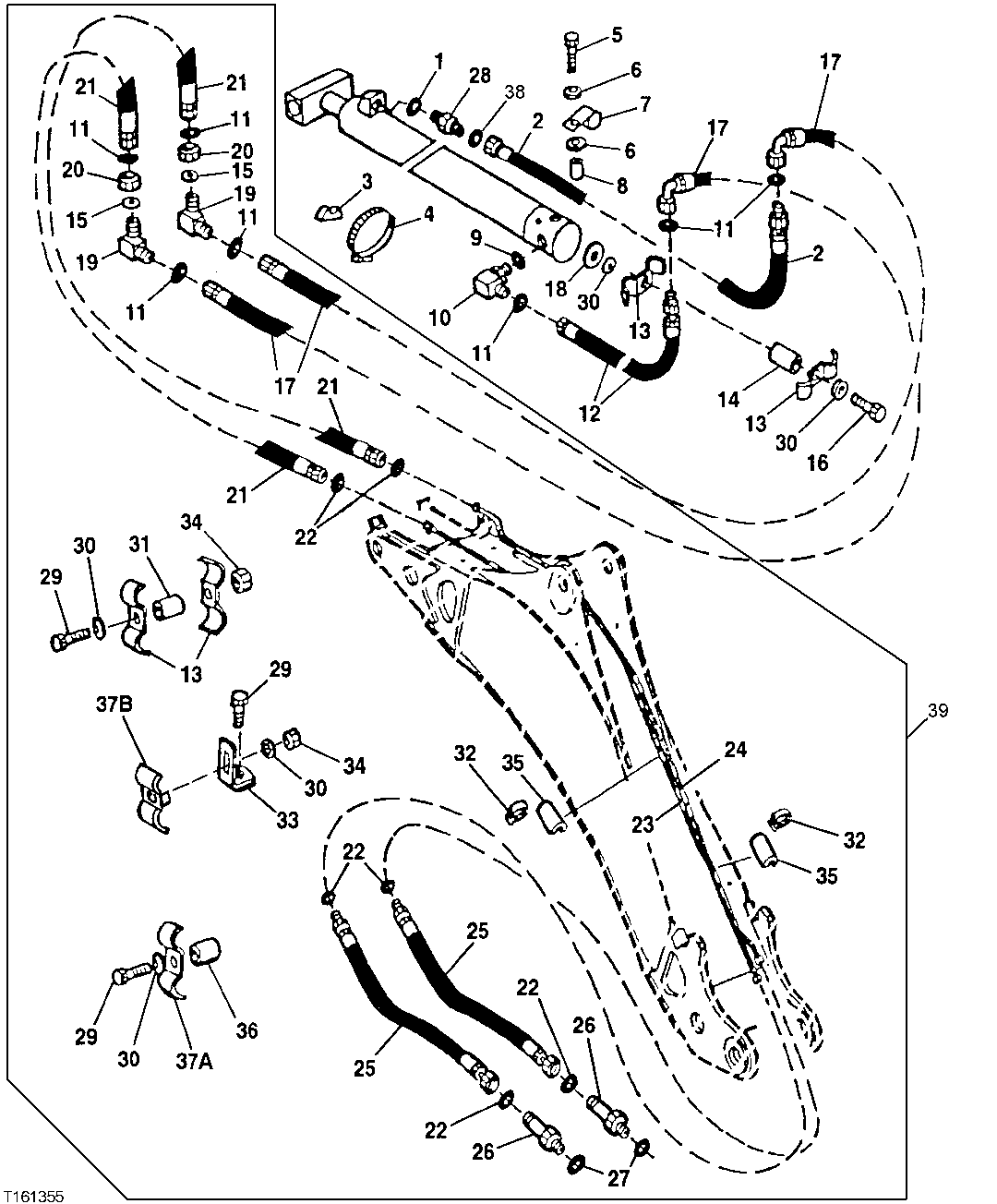

Extension Cylinder Hydraulics (Extendable Dipperstick)
