Extendable Arm, Hydraulic Cylinder and Pins

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT175403	1	Dipperstick	Stationary Member
2	40M7120	1	Snap Ring	-
3	24H1635	1	Washer	2-5/8" X 3-3/8" X 0.120"
4	AT169831	1	Pin	-
5	T148410	1	Nut	M10, 8mm Plate , Kremnut Red, (NO.8)
6	T295708	2	Bushing	(SUB FOR T162581 AND T127792)
7	19M7666	12	Screw	M10 X 40
8	T157792	4	Wear Plate	-
9	T157796	1	Shim	-
10	14M7400	12	Lock Nut	M10
11	40M7166	2	Snap Ring	-
12	24H1594	2	Washer	2-1/16" X 2-3/4" X 0.134"
13	AT171079	1	Pin	-
14	AH209719	1	Hydraulic Cylinder	(SUB FOR AH152474, AH175183 AND AH206600)
15	T160384	1	Spacer	(SUB FOR T153320)
16	40M7179	2	Snap Ring	-
17	T160300	1	Wear Plate	Synthetic
17	24H1679	1	Washer	2-17/64" X 3-1/4" X 0.060"
18	T153567	1	Pin	-
19	40M7066	2	Snap Ring	-
20	34M7054	1	Spring Pin	10 X 50 mm
21	T153322	1	Pin	-
22	AR83396	1	Quick Lock Pin	-
23	19H2472	6	Cap Screw	1/2" X 1"
24	24M7240	6	Washer	13 X 25 X 3 mm
25	AT173933	2	Wear Plate	-
26	T166715	2	Bushing	(SUB FOR T154277)
27	T166686	2	Bushing	(SUB FOR T162582, THIS APPLICATION ) (SUB FOR T67855)
28	T162396	7	Lubrication Fitting	(SUB FOR JD7798)
29	AT345248	1	Dipperstick	Extending Member, (CA) (SUB FOR AT175402 OR AT322989)
30	AT191241	1	Guide	-
35	-	1	Part 32	Includes Hydraulic Hoses, Fittings, Clamps and Hardware Contained Inside The Extendable Arm, (WHOLE GOODS) (AT179904 NLA)

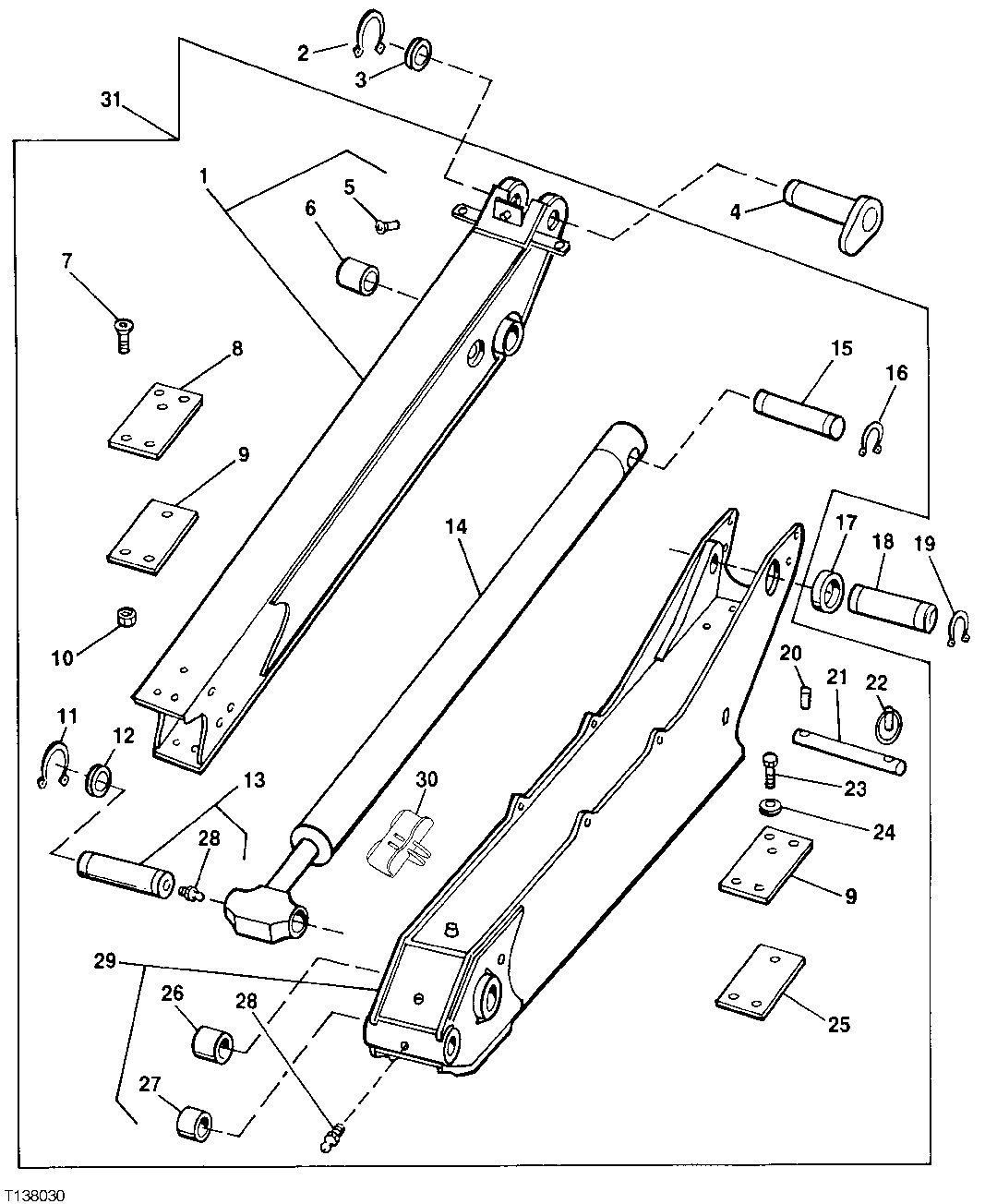

Extendable Arm, Hydraulic Cylinder and Pins
