Открытый узел

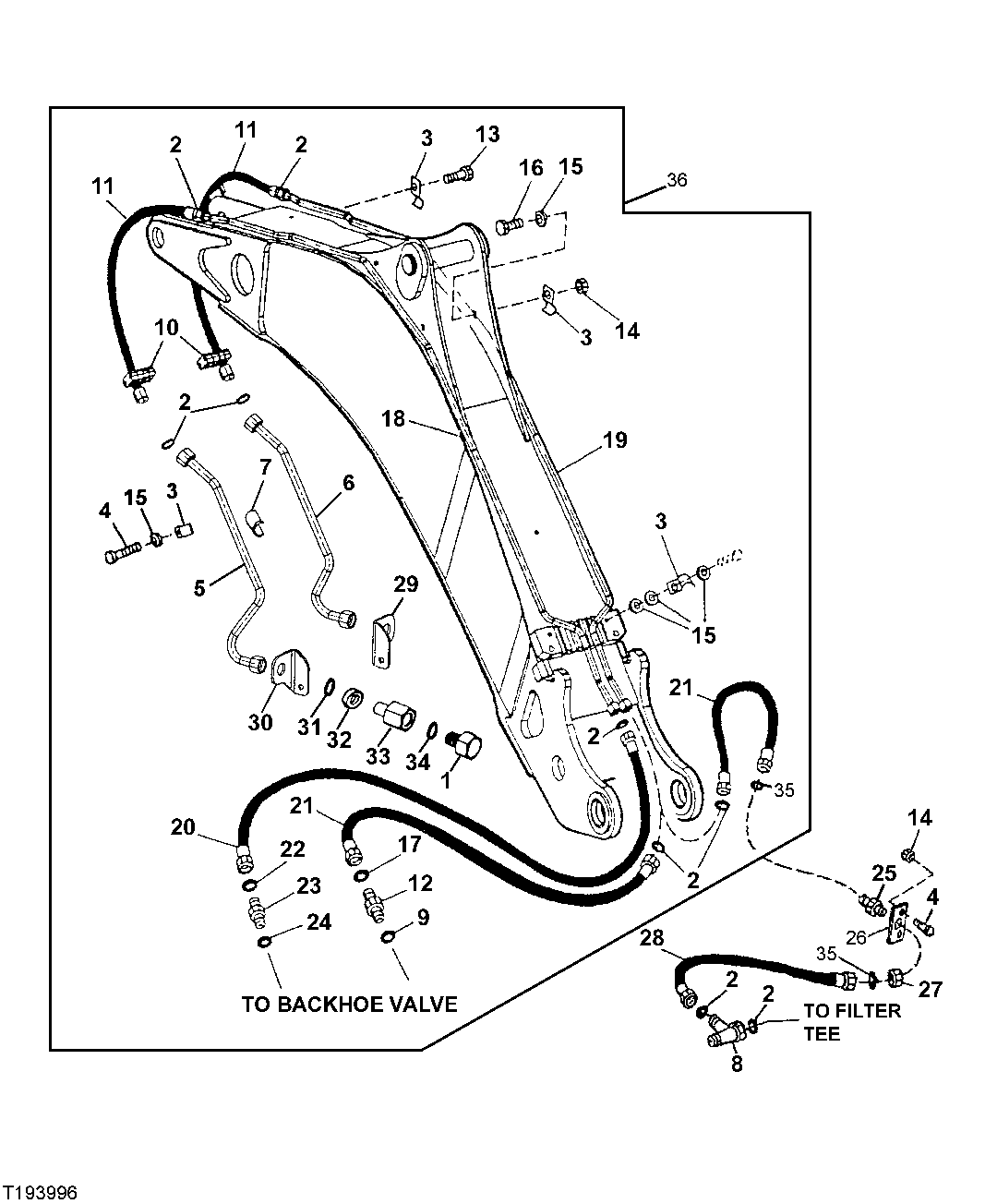

Auxiliary Equipment Hydraulics (Standard Dipperstick)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27175	2	Drain Plug	(SUB FOR R36636, THIS APPLICATION)
2	T77858	8	O-Ring	-
3	T160376	12	Clamp	-
4	19M7662	4	Cap Screw	M10 X 30
5	AT181685	1	Oil Line	(SUB FOR AT179412) (ALSO ORDER (2) 24H1498, T162682, T78707, T163702, R27175, U12547 AND T77858)
5	AT181685	1	Oil Line	(SUB FOR AT179412)
6	AT181686	1	Oil Line	(SUB FOR AT179413) (ALSO ORDER (2) 24H1498, T162681, T78707, T163702, R27175, U12547 AND T77858)
6	AT181686	1	Oil Line	(SUB FOR AT179413)
7	-	4	Part 9	(.812 MAX X .500 ID HOSE)
8	38H1033	1	Tee Fitting	-
9	R29936	1	O-Ring	-
10	T162004	4	Clamp	(SUB FOR T147187)
11	AT179414	2	Hydraulic Hose	30.1752" X 1149 mm (45-1/4") X 30.1752"
12	38H1447	1	Adapter Fitting	-
12	38H1194	1	Adapter Fitting	-
13	19M7572	2	Cap Screw	M10 X 45
14	14M7274	4	Nut	M10
15	24M7239	10	Washer	10.700 X 21 X 2.500 mm
16	03M7192	4	Bolt	M10 X 30
17	T77932	1	O-Ring	-
17	T77858	1	O-Ring	-
18	AT179405	1	Oil Line	(USE WITH AT170932 OR AT345611)
18	AT195812	1	Oil Line	(USE WITH AT196370 OR AT345611)
19	AT179406	1	Oil Line	(USE WITH AT170932 OR AT345611)
19	AT195813	1	Oil Line	(USE WITH AT196370 OR AT345611)
20	-	1	Part 26	(AT179409 NLA) (SUB AT198366) (ALSO ORDER 38H1194, 38H1163 AND (2) T77858)
20	AT198366	1	Hydraulic Hose	-
21	-	1	Part 28	(AT179409 NLA) (SUB AT198366) (ALSO ORDER 38H1194, 38H1163 AND (2) T77858)
21	AT198366	1	Hydraulic Hose	-
22	T77932	1	O-Ring	-
22	T77858	1	O-Ring	-
23	38H1329	1	Adapter Fitting	-
23	38H1163	1	Adapter Fitting	-
24	U12547	1	O-Ring	-
25	38H1286	1	Adapter Fitting	-
26	T161082	1	Strap	-
27	14H876	1	Nut	1"
28	AT179400	1	Hydraulic Hose	-
29	T162681	1	Bracket	-
30	T162682	1	Bracket	-
31	T77858	2	O-Ring	-
32	T78707	2	Nut	-
33	T163702	2	Reducer	(SUB FOR T162693, THIS APPLICATION)
34	T77858	2	O-Ring	-
34	U12547	2	O-Ring	(SUB FOR R29936, THIS APPLICATION)
35	T77932	2	O-Ring	-
36	AT178792	1	Field Installation Kit	(WHOLE GOODS)

Auxiliary Equipment Hydraulics (Standard Dipperstick)
