Открытый узел

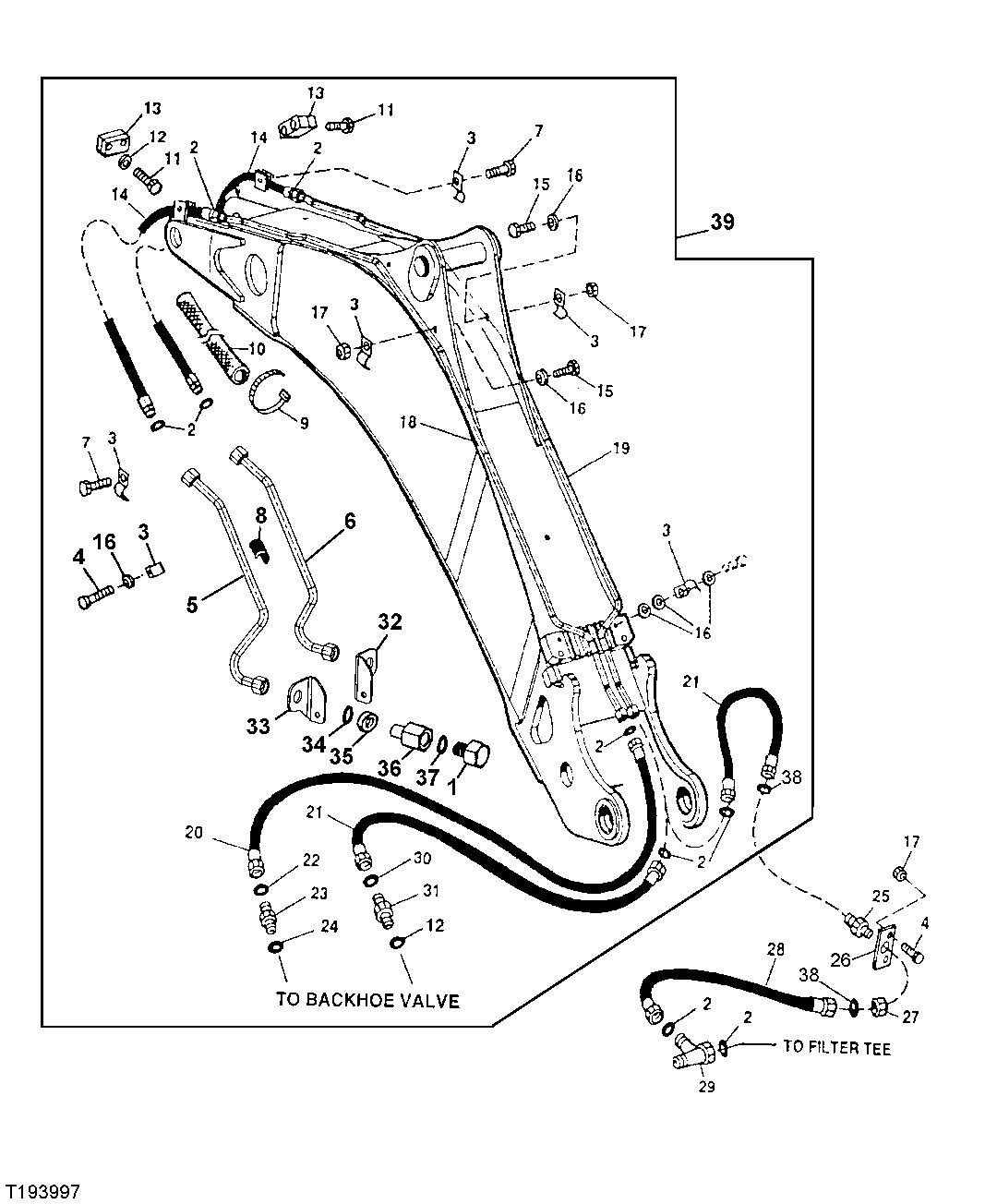

Auxiliary Equipment Hydraulics (Extendable Dipperstick)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27175	2	Drain Plug	(SUB FOR R36636, THIS APPLICATION)
2	T77858	6	O-Ring	-
3	T160376	12	Clamp	-
4	19M7662	4	Cap Screw	M10 X 30
5	AT186920	1	Oil Line	(SUB FOR AT179373 AND AT181684) (ALSO ORDER (2) 24H1498, T162682, T78707, T163702, R27175, U12547 AND T77858)
5	AT186920	1	Oil Line	(SUB FOR AT179373 AND AT181684)
6	AT186915	1	Oil Line	(SUB FOR AT179372 AND AT181683) (ALSO ORDER (2) 24H1498, T162681, T78707, T163702, R27175, U12547 AND T77858)
6	AT186915	1	Oil Line	(SUB FOR AT179372 AND AT181683)
7	19M7572	2	Cap Screw	M10 X 45
8	-	4	Part 10	(.812 MAX X .500 ID HOSE)
9	H77698	4	Tie Band	-
10	T161365	2	Sleeve	Fabric
11	19M8456	8	Cap Screw	M8 X 100
12	R29936	1	O-Ring	-
13	T162004	8	Clamp	(SUB FOR T147187)
14	AT179411	2	Hydraulic Hose	-
15	03M7192	4	Bolt	M10 X 30
16	24M7239	1	Washer	10.700 X 21 X 2.500 mm
17	14M7274	4	Nut	M10
18	AT179405	1	Oil Line	(USE WITH AT170932 OR AT345611)
18	AT195812	1	Oil Line	(USE WITH AT196370 OR AT345611)
19	AT179406	1	Oil Line	(USE WITH AT170932 OR AT345611)
19	AT195813	1	Oil Line	(USE WITH AT196370 OR AT345611)
20	-	1	Part 24	(AT179409 NLA) (SUB AT198366) (ALSO ORDER 38H1194, 38H1163 AND (2) T77858)
20	AT198366	1	Hydraulic Hose	-
21	AT198366	1	Hydraulic Hose	-
21	-	1	Part 26	(AT179409 NLA) (SUB AT198366) (ALSO ORDER 38H1194, 38H1163 AND (2) T77858)
22	T77932	1	O-Ring	-
22	T77858	1	O-Ring	-
23	38H1329	1	Adapter Fitting	-
23	38H1163	1	Adapter Fitting	-
24	U12547	1	O-Ring	-
25	38H1286	1	Adapter Fitting	-
26	T161082	1	Strap	-
27	14H876	1	Nut	1"
28	AT179400	1	Hydraulic Hose	-
29	38H1033	1	Tee Fitting	-
30	T77932	1	O-Ring	-
30	T77858	1	O-Ring	-
31	38H1447	1	Adapter Fitting	-
31	38H1194	1	Adapter Fitting	-
32	T162681	1	Bracket	-
32	T166780	1	Bracket	-
33	T162682	1	Bracket	-
33	T166781	1	Bracket	-
34	T77858	2	O-Ring	-
35	T78707	2	Nut	-
36	T163702	2	Reducer	(SUB FOR T162693, THIS APPLICATION)
37	T77858	2	O-Ring	-
37	U12547	2	O-Ring	(SUB FOR R29936, THIS APPLICATION)
38	T77932	2	O-Ring	-
39	AT188789	1	Kit	(WHOLE GOODS) (SUB FOR AT178793)

Auxiliary Equipment Hydraulics (Extendable Dipperstick)

Нет текстового описания
