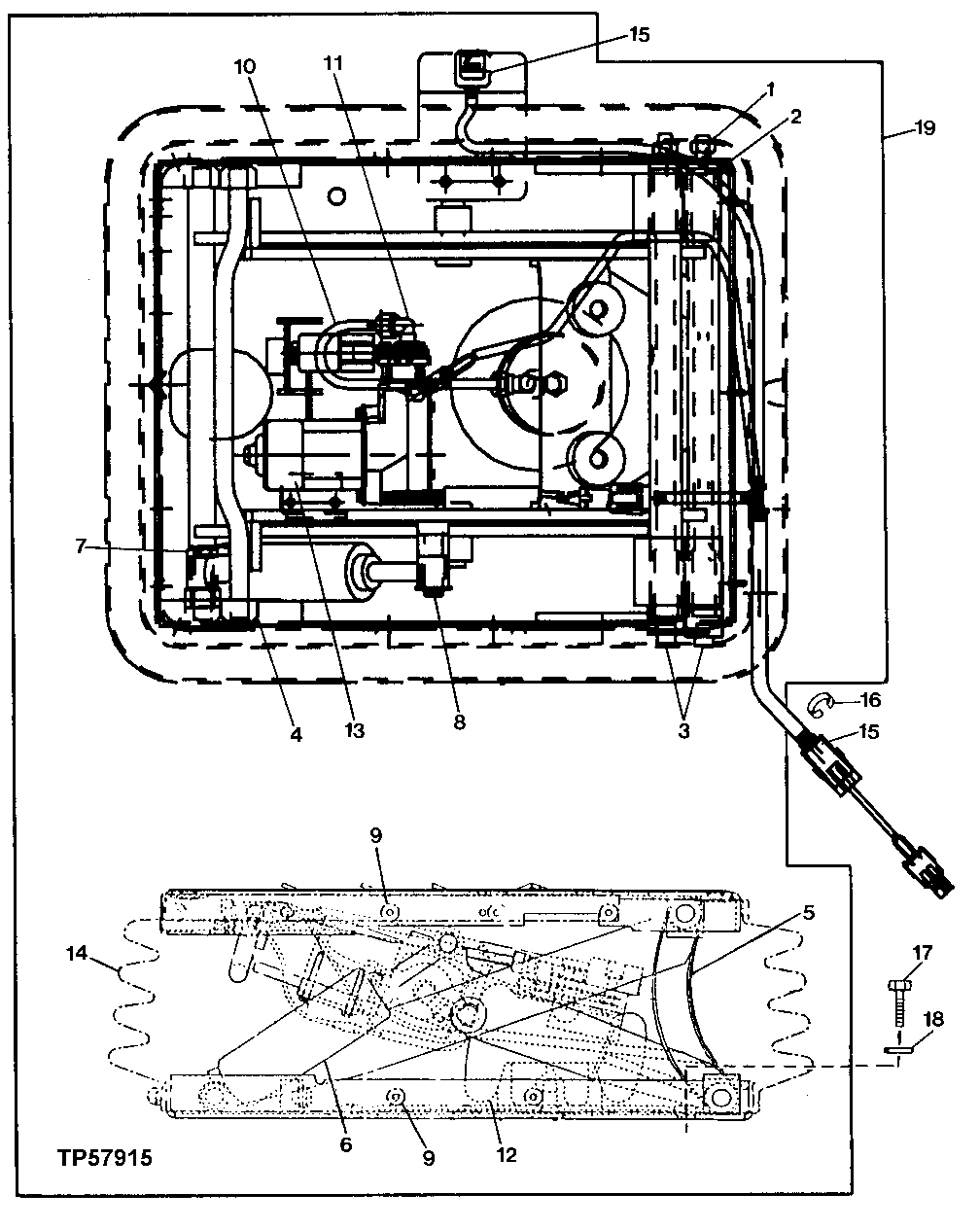

Air Suspension Seat and Shock Absorber (849018 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(A)
2	-	4	Part 2	(A)
3	-	2	Part 3	(A)
4	AT173314	1	Seat Bearing Roller Kit	(SUSPENSION ROLLER KIT)
5	AT173315	1	Belt Kit	Tether Belt Service Kit
6	-	1	Part 6	(B)
7	-	2	Part 7	(B)
8	-	1	Part 8	(B)
9	AT173321	1	Clip Kit	(BOOT CLIP SERVICE KIT)
10	-	1	Part 10	(C)
11	-	2	Part 11	(C)
12	AT208486	1	Absorber	Air Bladder Spring, (AIR SPRING SEAT KIT)
13	AT198694	1	Compressor Kit	(COMPRESSOR KIT) (SUB FOR AT183813)
14	AT208491	1	Boot Kit	Boot Service Kit, (INCLUDES AT173321)
15	AT183810	1	Switch Kit	(SUSPENSION SWITCH KIT)
16	T164714	1	Grommet	NLA
17	19M7402	4	Cap Screw	M10 X 25
18	24M7239	4	Washer	10.700 X 21 X 2.500 mm
19	AT183811	1	Seat Suspension	Air
..	AT173313	1	Shaft Kit	(INCLUDES ALL (A) PARTS (SUSPENSION SHAFT))
..	AT182954	1	Seat Shock Absorber Kit	(INCLUDES ALL (B) PARTS (SUSPENSION SHOCK))
..	AT208493	1	Fitting Kit	(INCLUDES ALL (C) PARTS (AIRLINE/FITTING KIT)

Air Suspension Seat and Shock Absorber (849018 - )

Нет текстового описания
