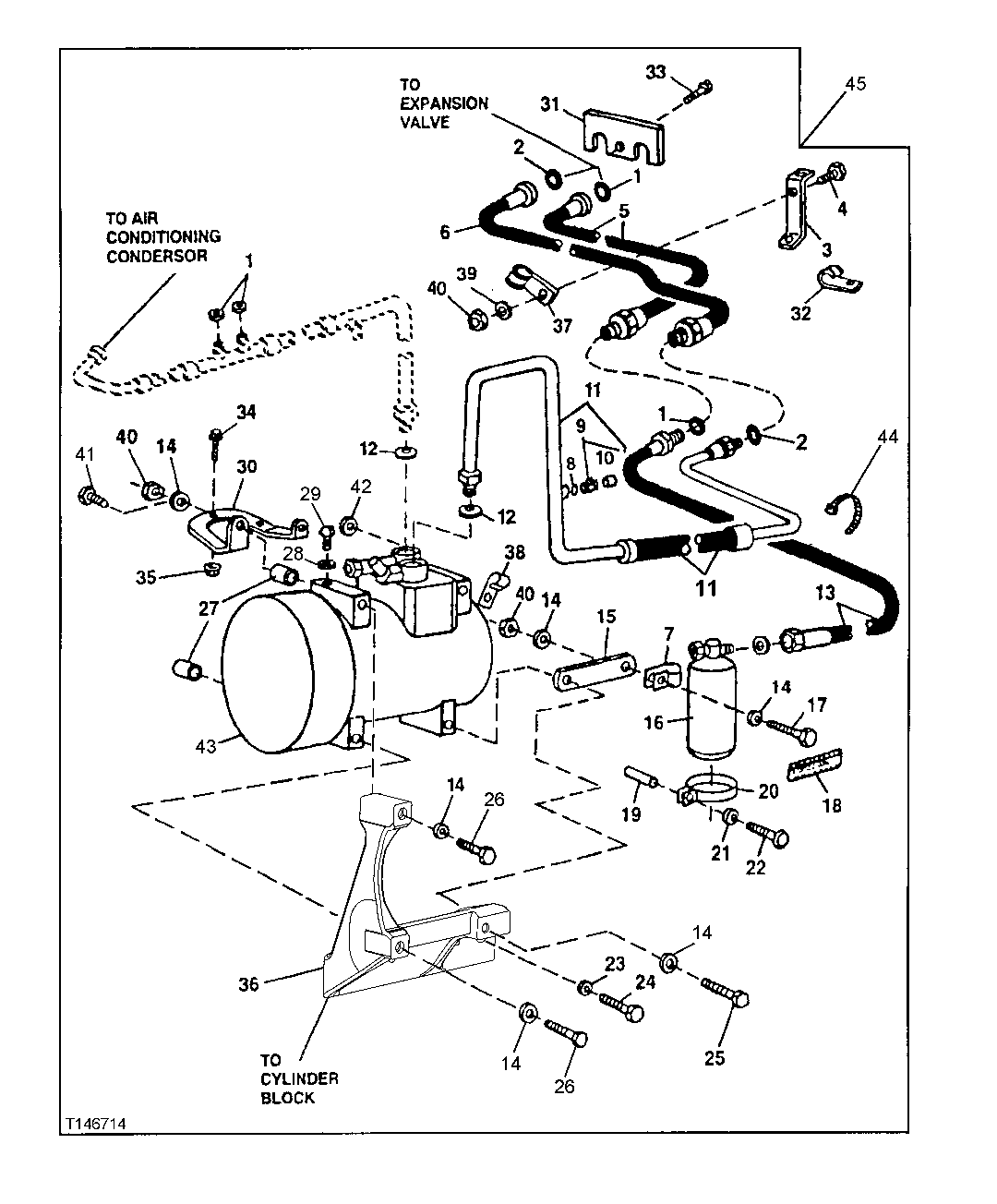

AIR CONDITIONING COMPRESSOR, MOUNTING BRACKETS, RECEIVER DRYER AND HOSES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R10093	6	O-Ring	-
2	T143169	2	O-Ring	-
3	T158245	1	Strap	-
4	19M7513	1	Cap Screw	M8 X 30
5	AT175961	1	Line	-
6	AT175962	1	Line	-
7	T78787	2	Clamp	-
8	R10093	1	O-Ring	-
9	AT181530	1	Flow Control Hyd. Valve	-
10	T162557	1	Cap	-
11	AT185402	1	Refrigerant Hose	(SUB FOR AT178751 AND AT181277)
12	R26906	2	O-Ring	-
13	AT174797	1	Refrigerant Hose	-
14	24M7238	8	Washer	8.700 X 17 X 2 mm
15	M86533	1	Strap	-
16	AT162848	1	Receiver-Dryer	-
17	19M7513	1	Cap Screw	M8 X 30
18	T145560	1	Label	-
19	28H3413	2	Bushing	0.423" X 0.675" X 2-1/2"
20	99M7102	2	Clamp	-
21	24H1781	2	Washer	13/32" X 7/8" X 1/4"
22	19M8166	2	Cap Screw	M10 X 110
23	24M7239	2	Washer	10.700 X 21 X 2.500 mm
24	19M7402	2	Cap Screw	M10 X 25
24	19M7550	2	Cap Screw	M10 X 35, (USE WITH R504192)
25	19M8456	2	Cap Screw	M8 X 100
26	19M8539	2	Cap Screw	M8 X 90, (USE WITH R504192)
26	19M8456	2	Cap Screw	M8 X 100
27	34M7189	2	Spring Pin	11 X 8 mm
28	12H316	1	Lock Washer	0.216"
29	21M7283	1	Screw	M5 X 8
30	R132690	1	Bracket	-
30	R504191	1	Bracket	(USE WITH R504192)
31	R125223	1	Plate	-
32	T13814	1	Clamp	-
33	19M8553	1	Screw	M6 X 16
34	19M7402	1	Cap Screw	M10 X 25
35	14M7294	1	Nut	M10
36	-	1	Part 39	(AT180350 NLA) (SUB R504192) (ALSO ORDER R504191, 19M7407, (2) 19M7550 AND (2) 19M8539) (SUB FOR R123500, THIS APPLICATION)
36	R504192	1	Bracket	-
37	T102934	1	Clamp	-
38	T19935	1	Clamp	-
39	24M7238	1	Washer	8.700 X 17 X 2 mm
40	14M7273	4	Nut	M8, (USE WITH AT180350)
41	19M7407	1	Cap Screw	M8 X 25, (USE WITH R504192)
42	14M7273	2	Nut	M8, (USE WITH R504192)
43	TY6764	1	Compressor	-
43	SE501462	1	Compressor Reman	(REMAN FOR TY6764)
44	R44302	1	Tie Band	-
44	H77698	1	Tie Band	-
45	AT185468	1	Air Conditioner	(WHOLE GOODS) (KIT) ALSO INCLUDES AIR CONDITIONING CONDENSER, CONDENSER HOSES, FAN BLADE, FAN BELT, FAN BELT PULLEY, CRANKSHAFT PULLEY, EVAPORATOR, EXPANSION VALVE, SWITCHES, WIRE HARNESS, CLAMPS, BRACKETS, LABEL AND MISCELLANEOUS PARTS. NOTE ALSO ORDER AT186949 OIL COOLER FOR UNITS WITH OUT HI-AMBIENT COOLING (REQUIRES 95 AMP ALTERNATOR) (SUB FOR AT178063)

AIR CONDITIONING COMPRESSOR, MOUNTING BRACKETS, RECEIVER DRYER AND HOSES
