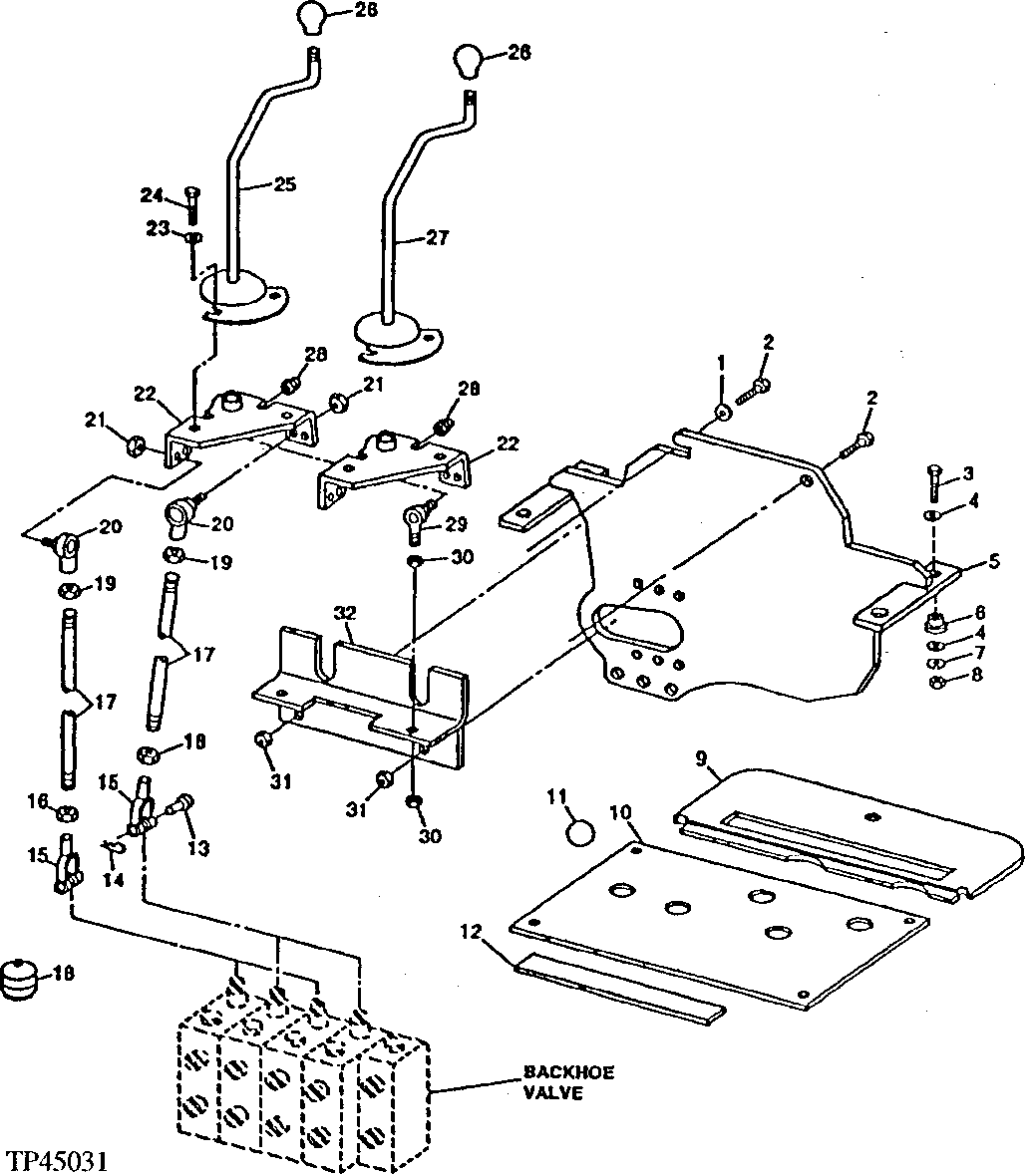

TWO LEVER BACKHOE CONTROL LEVER LINKAGE ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7239	1	Washer	10.700 X 21 X 2.500 mm, (SUB FOR AT151567)
2	19M7572	2	Cap Screw	M10 X 45, (SUB FOR 19M7550)
3	19M7935	4	Cap Screw	M10 X 55
4	24H1314	8	Washer	13/32" X 1-3/4" X 7/64"
5	AT146221	1	Support	(SUB AT165783 AND T141316)
5	AT165783	1	Support	(SUB FOR AT151567)
6	AT139776	4	Isolator	-
7	24M7296	4	Washer	10.500 X 30 X 2.500 mm
8	14M7274	4	Nut	M10
9	T141316	1	Grommet	(USE WITH AT165783)
9	T133386	1	Grommet	(USE WITH AT146221)
10	T133509	1	Support	-
10	T148844	1	Support	-
11	T135241	1	Plug	-
12	-	1	Part 15	(MAKE FROM T59938 BULK MATERIAL, CUT TO LENGTH
13	R65563	4	Pin Fastener	-
14	R46528	4	Spring Locking Pin	-
15	T140328	4	Yoke	(L.H.)
16	14H913	4	Nut	3/8", (L.H.)
17	T140300	4	Rod	-
18	AT145629	4	Boot	-
19	14H774	4	Nut	3/8"
20	AT169087	4	Ball Joint	(SUB FOR AT49300)
21	M68954	4	Lock Nut	-
22	AT178686	2	Base	REPLACE IN PAIRS, (SUB FOR AT148212 AND AT151699)
23	24M7238	4	Washer	8.700 X 17 X 2 mm
24	19M7881	4	Screw	M8 X 20
25	AT148213	1	Lever	-
26	T133291	2	Knob	-
27	AT148214	1	Lever	-
28	T161379	2	Spacer	(ALSO ORDER 14H865 ) (SUB FOR T133466 ) (SUB FOR T141126, THIS APPLICATION)
28	14H865	2	Nut	1/2"
29	AT124107	2	Ball Joint	-
30	14H865	4	Nut	1/2"
31	14M7274	2	Nut	M10
32	AT164934	1	Support	(SUB FOR AT149549)

TWO LEVER BACKHOE CONTROL LEVER LINKAGE ( - 801199)
