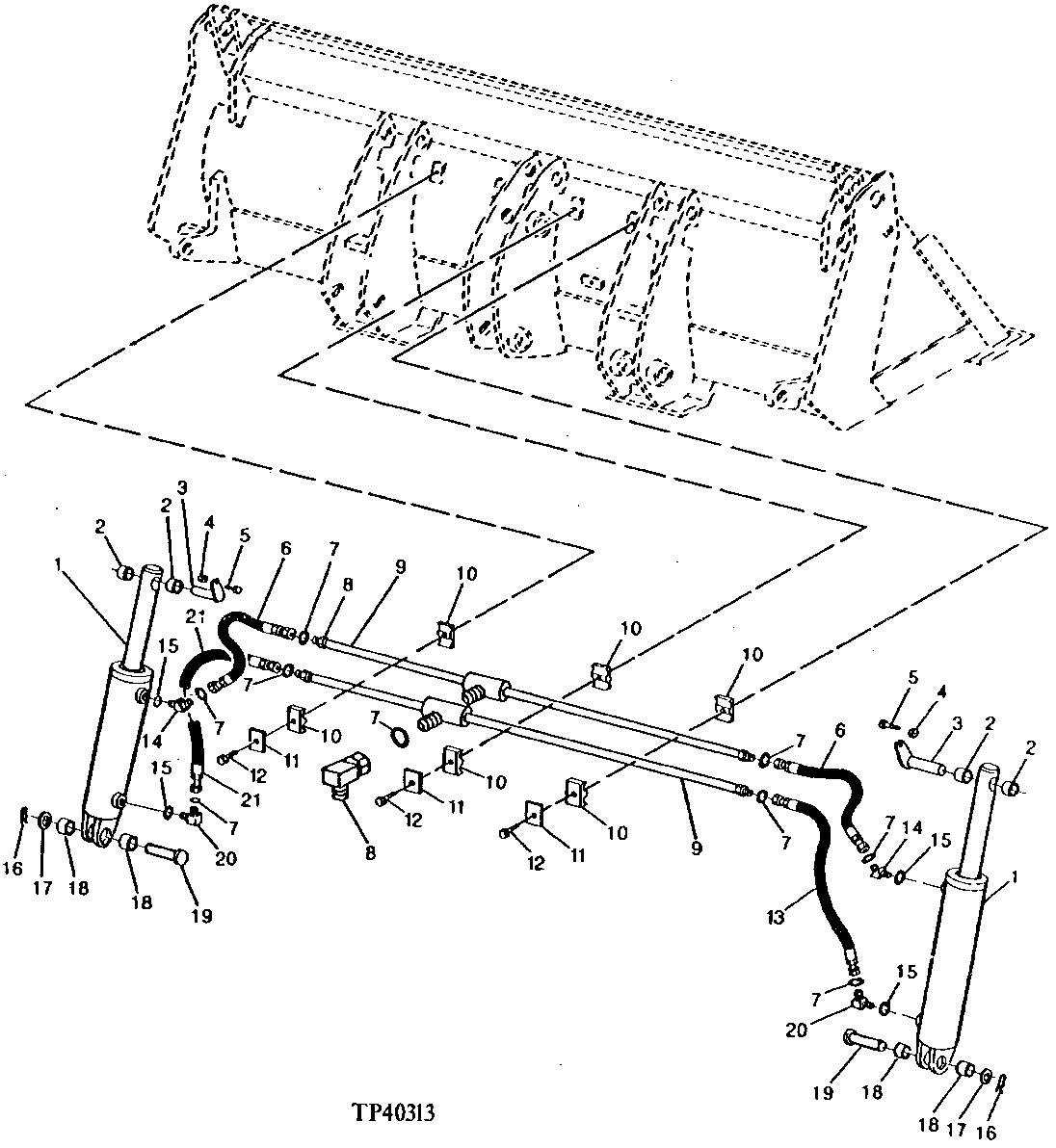

Third Function Hydraulics, (Multi-Purpose Bucket), (Gannon)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A24073	8	Bushing	(USE WITH AT190880)
1	-	2	Part 1	( AT190880 NO LONGER AVAILABLE), (SUB FOR AT142578 ) (SUB AH210737, T191318 AND (3) 24H1138)
2	T128532	4	Bushing	-
3	AT190900	2	Pin	(SUB FOR AT142584)
4	T54568	2	Lock Nut	-
5	19H2676	2	Cap Screw	3/8" X 1"
6	AT142604	1	HYDRAULIC HOSE - FABRICATE	RIGHT, (SUB FOR AT142605, THIS APPLICATION)
6	AT156437	1	Hydraulic Hose	LEFT
7	T77857	9	O-Ring	-
8	38H1095	2	Elbow Fitting	-
9	AT150755	2	Oil Line	-
10	H135156	6	Clamp	-
11	H121168	3	Plate	-
12	19H2661	3	Cap Screw	5/16" X 1-3/8"
13	AT150828	1	Hydraulic Hose	(RIGHT)
14	38H1521	2	Elbow Fitting	-
15	R26448	4	O-Ring	-
16	11M7030	2	Cotter Pin	5 X 40 mm
17	24H1138	2	Washer	1-1/16" X 2" X 0.134"
18	T128531	4	Bushing	-
19	-	2	Part 21	( T185041 NO LONGER AVAILBLE), (SUB FOR T128536 ) (SUB (2) T191318 AND (6) 24H1138)
20	38H1314	2	Elbow Fitting	-
21	AT142605	1	HYDRAULIC HOSE - FABRICATE	(LEFT), (SUB FOR AT142604, THIS APPLICATION)

Third Function Hydraulics, (Multi-Purpose Bucket), (Gannon)
