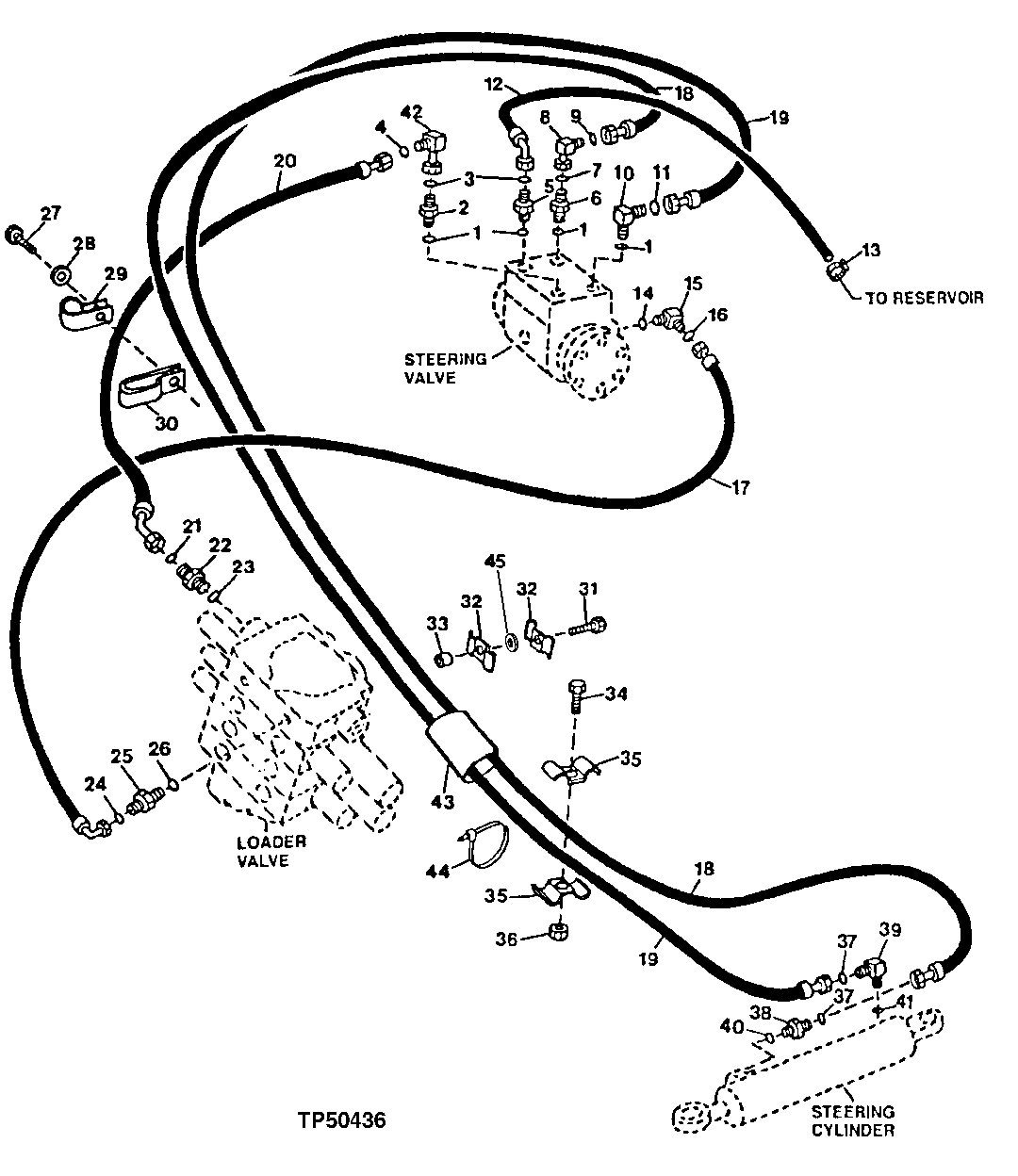

STEERING VALVE AND STEERING CYLINDER HYDRAULICS (w/o MFWD) (801200 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	4	O-Ring	-
2	AT141527	1	Check Valve	(INCLUDES R26375 AND T77857)
2	T77857	1	O-Ring	-
2	R26375	1	O-Ring	-
3	T77857	2	O-Ring	-
4	T77857	1	O-Ring	-
5	38H1161	1	Adapter Fitting	-
6	38H1171	1	Adapter Fitting	-
7	T77613	1	O-Ring	-
8	38H1094	1	Elbow Fitting	-
9	T77613	1	O-Ring	WITH MFWD
10	38H1010	1	Elbow Fitting	-
11	T77613	1	O-Ring	-
12	AT164459	1	Hydraulic Hose	-
13	TY22462	1	Clamp	(SUB FOR AR48236)
14	R28782	1	O-Ring	-
15	38H1003	1	Elbow Fitting	-
16	T77814	1	O-Ring	-
17	AT165138	1	Hydraulic Hose	9/16" X 1664 mm (65-1/2") X 9/16"
18	AT165979	1	Hydraulic Hose	17.4752" X 2387 mm (94") X 17.4752"
19	AT165979	1	Hydraulic Hose	17.4752" X 2387 mm (94") X 17.4752"
20	AT165137	1	Hydraulic Hose	13/16" X 1422 mm (56") X 13/16"
21	T77857	1	O-Ring	-
22	38H1161	1	Adapter Fitting	-
23	R26375	1	O-Ring	-
24	T77814	1	O-Ring	-
25	38H1168	1	Adapter Fitting	-
26	R26448	1	O-Ring	-
27	19M7407	1	Cap Screw	M8 X 25
28	24M7238	1	Washer	8.700 X 17 X 2 mm
29	T24959	1	Clamp	-
30	T152608	1	Clamp	-
31	19M8853	2	Screw	M10 X 50, (SUB FOR M117904)
32	R27491	4	Clamp	-
33	28H1521	2	Spacer	0.493" X 0.675" X 9/16"
34	24M7239	2	Washer	10.700 X 21 X 2.500 mm
34	19M7881	1	Screw	M8 X 20
35	R27491	2	Clamp	-
36	14M7273	1	Nut	M8
37	T77613	2	O-Ring	-
38	38H1160	1	Adapter Fitting	-
39	38H1004	1	Elbow Fitting	-
40	R26375	1	O-Ring	-
41	R26448	1	O-Ring	-
42	38H1095	1	Elbow Fitting	-
43	-	1	Part 46	(MAKE FROM T78606 BULK FABRIC CUT TO LENGTH)
44	R44302	1	Tie Band	-
45	24H1304	2	WASHER	13/32" X 23/32" X 0.120"

STEERING VALVE AND STEERING CYLINDER HYDRAULICS (w/o MFWD) (801200 - )
