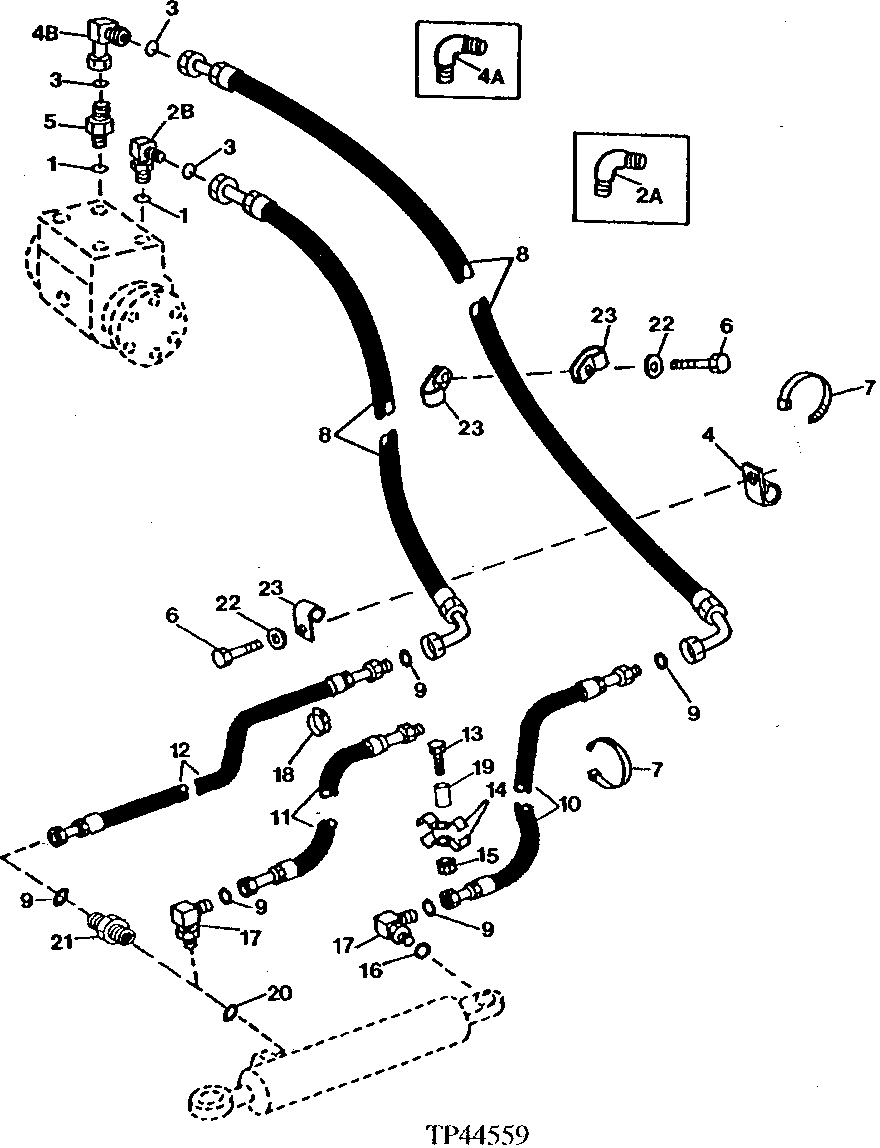

STEERING VALVE AND STEERING CYLINDER HYDRAULICS ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	2	O-Ring	-
3	T77857	3	O-Ring	-
5	38H1161	1	Adapter Fitting	-
6	19M7938	3	Cap Screw	M10 X 20
7	R44302	1	Tie Band	-
8	AT151344	2	Hydraulic Hose	-
9	T77613	3	O-Ring	(WITHOUT MFWD)
9	T77613	2	O-Ring	(WITHOUT MFWD)
9	T77613	4	O-Ring	(WITH MFWD)
10	AT151348	1	Hydraulic Hose	(WITHOUT MFWD) (HEAD END)
10	AT151345	1	Hydraulic Hose	(WITH MFWD) (LEFT END)
11	AT151346	1	Hydraulic Hose	17.4752" X 1175 mm (46-1/4") X 17.4752", (WITH MFWD) (RIGHT END)
11	AT165341	1	Hydraulic Hose	17.4752" X 1276 mm (50-1/4") X 17.4752", (WITH MFWD)
12	-	1	Part 18	( AT151347 NO LONGER AVAILABLE), (SUB AT157316 AND 38H1160 (WITHOUT MFWD) (ROD END))
12	AT157316	1	Hydraulic Hose	(WITHOUT MFWD)
13	19M7550	1	Cap Screw	M10 X 35, (WITH MFWD)
14	R46919	2	Half Clamp	(WITH MFWD)
15	14M7274	1	Nut	M10, (WITH MFWD)
16	R26448	2	O-Ring	-
16	R26448	1	O-Ring	-
17	38H1004	2	Elbow Fitting	(WITH MFWD)
17	38H1004	1	Elbow Fitting	(WITHOUT MFWD)
18	AR21839	1	Clamp	-
19	28H1521	1	Spacer	0.493" X 0.675" X 9/16"
20	R26375	1	O-Ring	-
21	38H1171	1	Adapter Fitting	-
22	24M7239	7	Washer	10.700 X 21 X 2.500 mm
23	T74416	6	Clamp	-
2A	38H1046	1	Elbow Fitting	-
2B	38H1005	1	Elbow Fitting	-
4A	38H1046	1	Elbow Fitting	-
4B	38H1095	1	Elbow Fitting	-

STEERING VALVE AND STEERING CYLINDER HYDRAULICS ( - 801199)
