Открытый узел

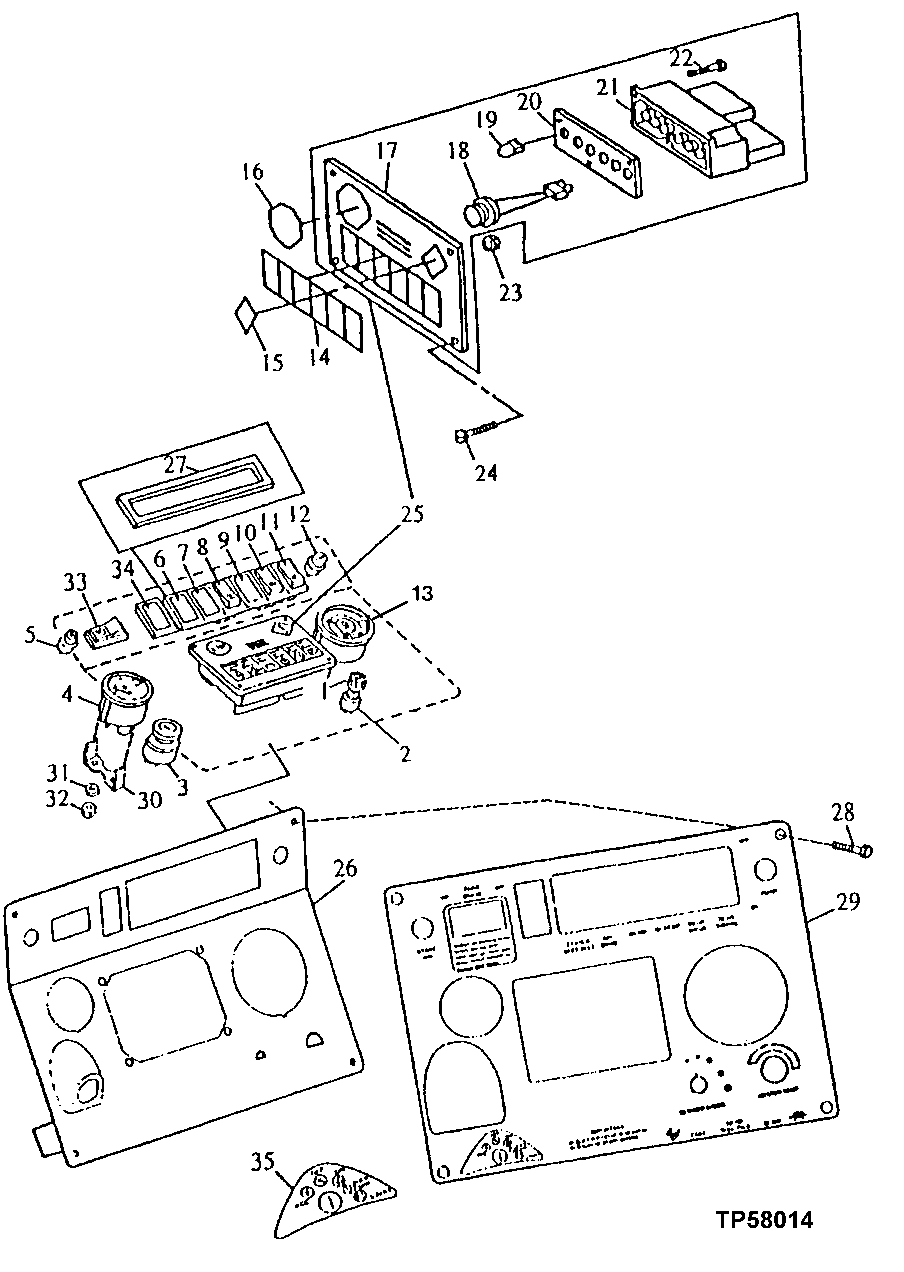

SIDE INSTRUMENT PANEL WITH GAUGES AND SWITCHES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R111632	1	Knob	(WITH CAB)
1	AT145907	1	Knob	HEATER BLOWER (WITH CAB)
2	E46066	2	Nut	(WITH CAB)
2	RE43497	1	Switch	(WITH CAB)
2	AL36529	1	Switch	HEATER BLOWER (WITH CAB)
3	AT145929	1	Key	(SET OF 2), (SUB FOR AR51481)
3	AT195301	1	Switch	KEY, (SUB FOR AT101484 AND AT145931)
3	R52725	2	Electrical Connector Assy	GROUND
3	R44342	1	Nut	-
4	AT104809	1	Gauge	FUEL
4	AR62407	1	Bulb	(SUB FOR T40990, THIS APPLICATION)
5	T55585	1	Cap	(WITH STARTING AID)
5	T154361	1	Plug	(WITHOUT STARTING AID), (SUB FOR R56264)
5	R39554	1	Switch	START AID
6	AT163734	1	Indicator Lamp	(SEAT BELT WARNING), (SUB FOR AT160717)
7	AT151499	1	Toggle/Rocker Switch	AIR CONDITIONING
8	AT165473	1	Switch	(SUB FOR AT150134)(MFWD)
8	AT167215	1	Indicator Lamp	(SUB FOR 57M7102, THIS APPLICATION)(BEHIND COVER IN SWITCH)
9	AT140957	1	Switch	(ROTATING BEACON)
9	57M7102	1	Bulb	-
10	AT140956	1	Switch	(REAR WINDOW WIPER)
11	AT149829	1	Switch	(REAR LIGHTS)
12	T55501	1	Cap	HORN
12	R39554	1	Switch	HORN
13	AT302762	1	KIT	(SUB FOR AT142304 OR AT162517)
13	AR56675	1	BULB	-
14	T129938	1	Label	FAULT LAMP
15	T100475	1	Label	AMBER WARNING
16	T100474	1	Safety Sign	RED WARNING
17	AT100484	1	MONITOR CONSOLE	FACE PLATE
18	AT101132	1	Audible Warning Alarm	-
19	AR62407	6	Bulb	-
20	T100812	1	Gasket	-
21	AT101131	1	Module	-
22	21H1308	3	Screw	0.138" X 3/8"
23	T82792	4	Nut	-
24	T82791	4	Screw	-
25	AT100073	1	Monitor Console	-
25	AR62407	2	Bulb	-
26	-	1	Part 40	CAB ( AT162074 NO LONGER AVAILABLE), (SUB FOR AT150895 AND AT151495 ) (SUB AT165469 AND T153055)
26	AT165469	1	Instrument Panel	CAB
26	-	1	Part 42	ROPS ( AT162073 NO LONGER AVAILABLE), (SUB FOR AT150896 AND AT151498 ) (SUB AT165397 AND T153056)
26	AT165397	1	Instrument Panel	ROPS
26	AT175380	1	Instrument Panel	(WITH CAB)
26	AT175381	1	Instrument Panel	(WITH ROPS)
27	Z45961	1	FRAME	SIX SWITCH MOUNTING
28	21H1406	4	Screw	0.190" X 3/4"

SIDE INSTRUMENT PANEL WITH GAUGES AND SWITCHES
