SIDE INSTRUMENT PANEL HOUSING, LOADER LINKAGE COVER AND STABILIZER LINKAGE COVER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T134876	1	Cover	(WITH THREE CONTROL LEVER REGULAR DIPPERSTICK) CASE CONTROLS
1	T133357	1	Cover	(WITH TWO CONTROL LEVER REGULAR DIPPERSTICK)
1	T134876	1	Cover	(WITH THREE CONTROL LEVER EXTENDIBLE DIPPERSTICK) CASE CONTROLS
1	T134850	1	Cover	(WITH TWO CONTROL LEVER EXTENDIBLE DIPPERSTICK)
2	19M8425	5	Cap Screw	M6 X 16
3	T134383	1	Panel	(WITH TWO CONTROL LEVERS)
4	T151178	4	Self-Locking Screw	4.826 X 19.050 mm (0.190" X 3/4"), (SUB FOR 21H1406)
5	T133674	2	Self-Locking Screw	-
6	24M7293	3	Washer	6.500 X 13 X 1.600 mm
7	T134895	4	Self-Locking Screw	-
8	T132978	1	Cover	LOADER LINKAGE
9	T134874	4	Self-Locking Screw	-
10	AT141724	1	Lock	-
11	T134594	1	Cover	VANDAL PROTECTION
12	AT181562	1	Hinge	VANDAL PROTECTION, (SUB FOR AT141319)
13	-	8	Part 16	-
14	H111706	8	Screw	-
15	T133328	1	Panel	FUSE ACCESS
16	T134896	1	Bumper	-
17	T141242	1	Housing	(WITHOUT CAB), (SUB FOR T134603)
17	T141244	1	Housing	(WITH CAB), (SUB FOR T132977)
17	T158639	1	Housing	(WITH CAB)
18	AT145938	1	Strap	-
19	M84972	4	Nut	-
20	T148875	1	Cover	STABILIZER LINKAGE (BOTTOM HOLE REMOVED NOV92 - NO LONGER REQUIRED), (SUB FOR T132979)
20	T148903	1	Cover	STABILIZER LINKAGE (USE WITH EXTENDIBLE DIPPERSTICK), (SUB FOR T147015)
21	T133327	1	Panel	SPEED CONTROL
22	24H1287	5	Washer	9/32" X 5/8" X 0.065"
23	-	1	Part 29	(MAKE FROM T141322 BULK MATERIAL, CUT TO LENGTH)
24	24H1646	3	Washer	17/64" X 3/4" X 0.060"
25	14M7165	2	Lock Nut	M6
26	T141235	1	Holder	-
26	T141234	1	Holder	-
27	24H1287	2	Washer	9/32" X 5/8" X 0.065"
28	19M7874	2	Cap Screw	M6 X 30

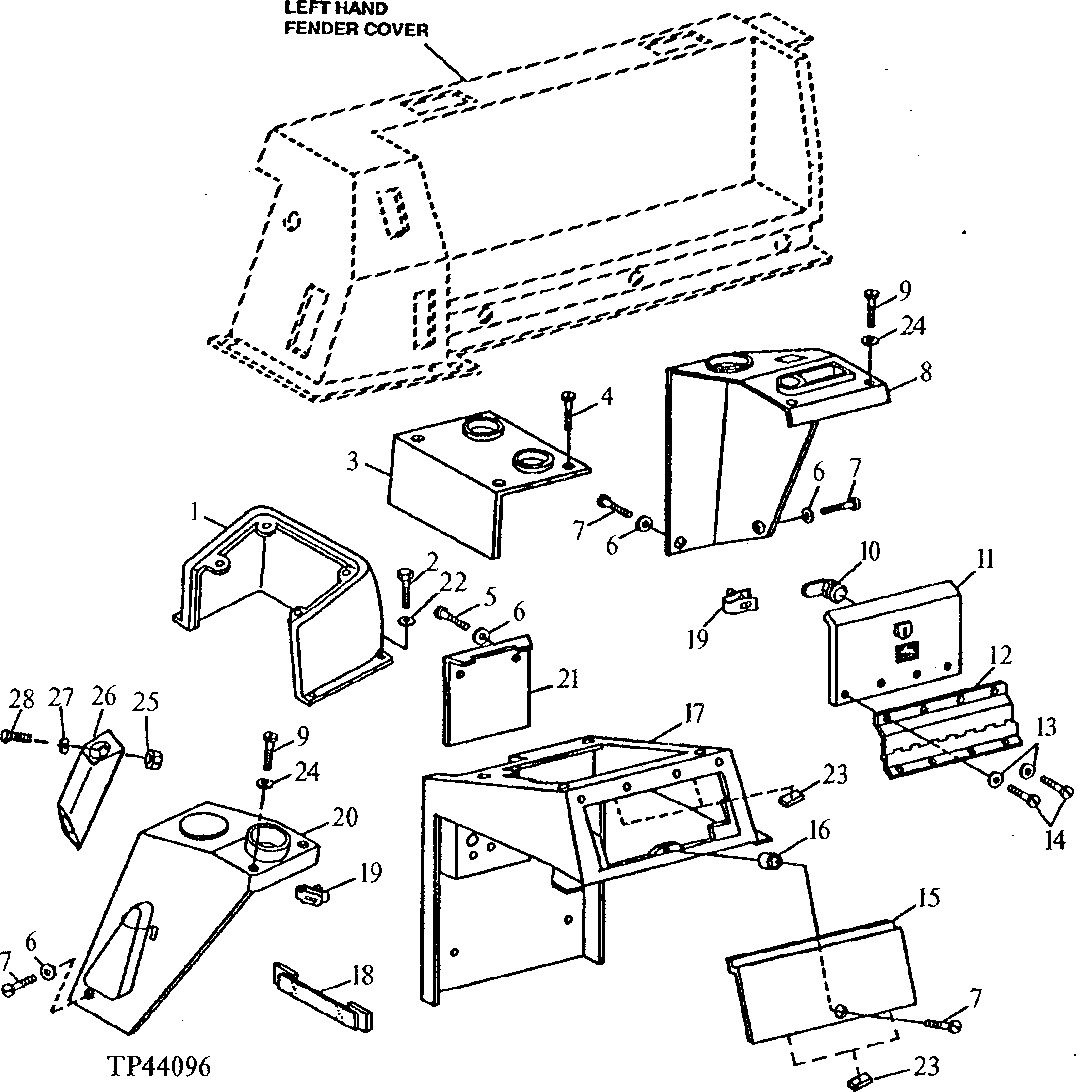

SIDE INSTRUMENT PANEL HOUSING, LOADER LINKAGE COVER AND STABILIZER LINKAGE COVER
