SELECTIVE FLOW SOLENOID VALVE KIT ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H576	1	Pipe Bushing	3/8"
2	R87907	1	Elbow Fitting	-
3	R44302	1	Tie Band	-
4	14M7272	1	Nut	M6
5	19M8425	1	Cap Screw	M6 X 16
6	38H1417	1	Fitting	-
6	38H1419	1	Fitting	-
7	19M8011	2	Cap Screw	M12 X 30
8	AT167606	1	Bracket	VALVE MOUNTING, (SUB FOR AT156404 AND AT156935)
9	14M7275	2	Nut	M12
10	38H1164	1	Adapter Fitting	-
11	T76938	3	O-Ring	-
12	19M7663	3	Cap Screw	M8 X 70
13	AT82210	1	Switch	FOOT CONTROL
14	38H1037	2	Elbow Fitting	-
15	R29936	1	O-Ring	-
16	T142096	1	Label	-
17	38H1404	1	Elbow Fitting	-
17	38H1305	1	Elbow Fitting	-
18	U12547	1	O-Ring	-
19	AT101899	1	Elec-Hyd Proportional Valve	AUXILIARY
20	R28782	1	O-Ring	-
21	38H1309	1	Adapter Fitting	-
22	T77613	2	O-Ring	-
24	AT156399	1	Hydraulic Hose	-
25	T142093	1	Label	(AUXILIARY HYDRAULIC VALVE)
26	AT156431	1	Wiring Harness	-
27	AT156432	1	Wiring Harness	-
28	T142081	1	Switch	(AUXILIARY HYDRAULIC)
29	AT75769	1	Relay	-
30	AT156430	1	Wiring Harness	(ALSO ORDER R78053)
31	T77932	1	O-Ring	-
32	T149199	1	Label	AUXILIARY HYDRAULICS
33	R78053	1	Electrical Connector Assy	-
34	R44302	1	Tie Band	-
35	T77613	1	O-Ring	-
36	TY22462	2	Clamp	(SUB FOR AR48236)
37	M86863	1	Tee Fitting	-
38	R29936	1	O-Ring	-
39	-	1	Part 42	(MAKE FROM M87571 BULK MATERIAL)
40	AR94101	1	Diode	-
41	AT156400	1	Solenoid Valve	(SELECTIVE FLOW KIT), (ALSO INCLUDES MISCELLANEOUS O-RINGS AND FITTINGS)
23A	AT103379	1	Hydraulic Hose	-
23B	AT167884	1	Hydraulic Hose	-

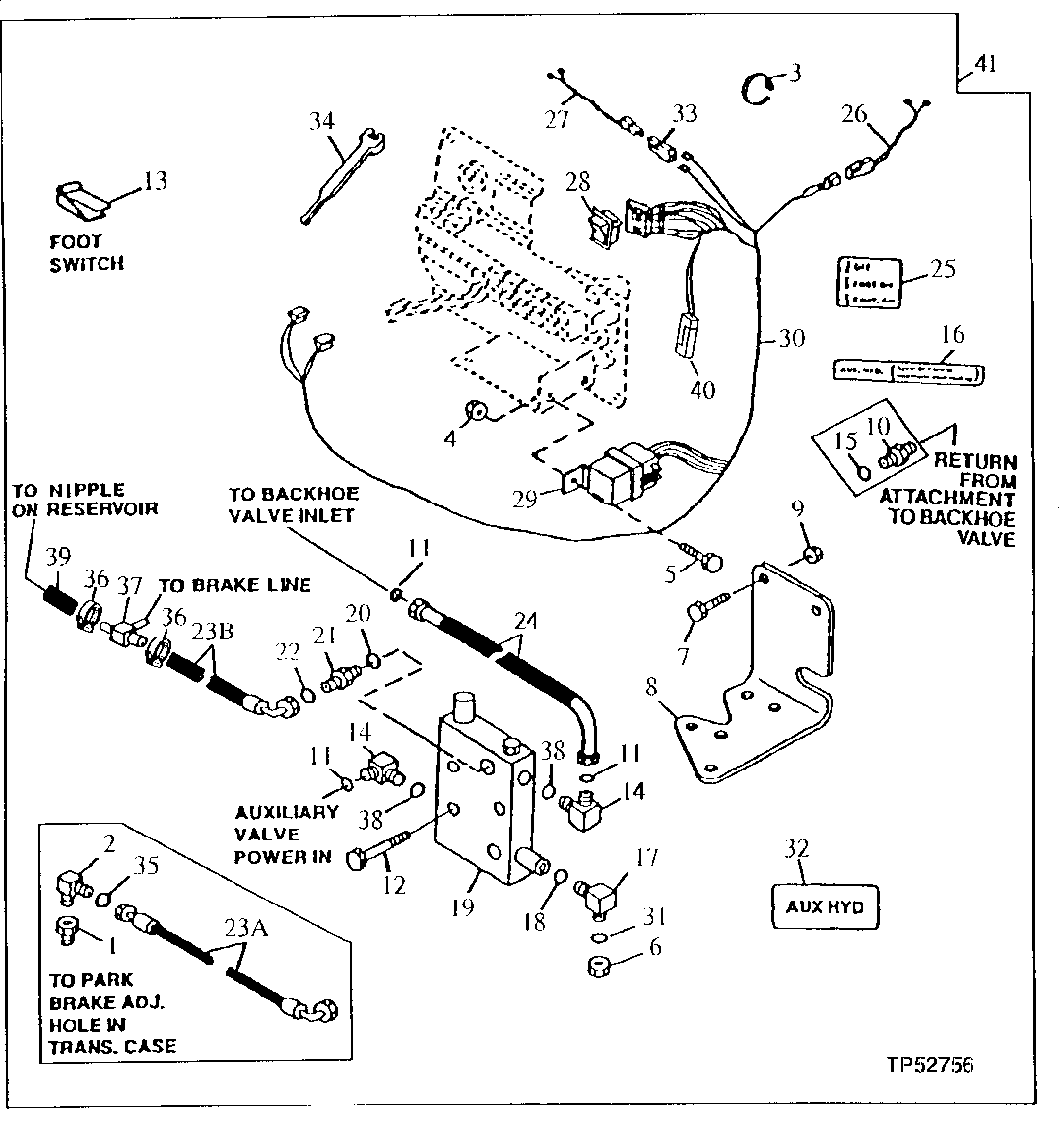

SELECTIVE FLOW SOLENOID VALVE KIT ( - 801199)

Нет текстового описания
