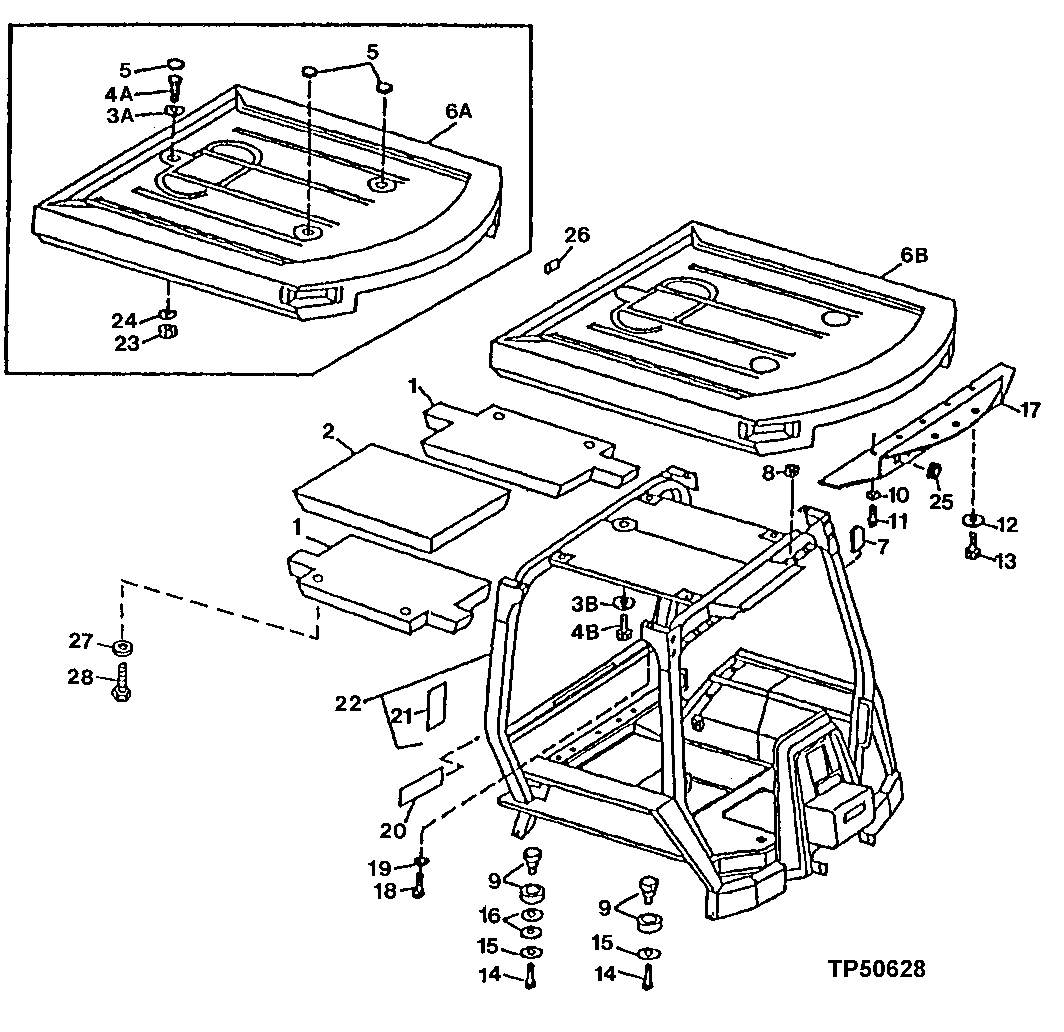

ROPS FRAME ROPS MOUNTING ISOLATORS AND ROPS ROOF

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T161720	2	Pad	HEADLINER, (SUB FOR T133116 ) (ALSO ORDER (4) 24M7293 AND (4) 37M7183)
2	T161721	1	Pad	CENTER HEADLINER, (SUB FOR T133594)
5	T78888	3	PLUG	-
7	T135748	1	Cover	COAT HOOK
8	BP13712	6	Nut	-
9	AT165288	4	Isolator	-
9	AT164785	4	Isolator	(SUB FOR AT102326, THIS APPLICATION)
10	24H1136	4	Washer	11/32" X 11/16" X 0.065"
11	T83060	6	Screw	6.350 X 19.050 mm (1/4" X 3/4")
12	24M7207	4	Washer	8.400 X 24 X 2 mm
13	T80176	2	Self-Locking Screw	7.925 X 31.750 mm (5/16" X 1-1/4")
14	19M7968	4	Cap Screw	M20 X 130
15	T101807	4	Washer	22 X 88.900 X 7.900 mm (0.866" X 3-1/2" X 0.311")
16	T80883	4	Washer	23.012 X 76.200 X 4.928 mm (29/32" X 3" X 0.194")
17	AT151889	1	Panel	(SUB FOR AT140977)
18	T80176	4	Self-Locking Screw	7.925 X 31.750 mm (5/16" X 1-1/4")
19	24H1136	5	Washer	11/32" X 11/16" X 0.065"
20	T148167	1	Reflector	LEFT, REAR MARKER
20	T148168	1	Reflector	RIGHT, (SUB FOR T142094 ) (SUB FOR JD5901, THIS APPLICATION REAR MARKER)
21	T141724	1	Label	(SUB FOR T140432)ROPS
22	AT150642	1	Frame	WITH LABEL
22	AT175330	1	Frame	(WITH LABEL), (SUB FOR AT169914)
23	14M7167	1	Lock Nut	M10
24	24M7296	1	Washer	10.500 X 30 X 2.500 mm
25	T130426	2	Grommet	-
26	T142447	1	Plug	-
27	24M7293	4	Washer	6.500 X 13 X 1.600 mm, (HEADLINER)
28	37M7183	4	Screw	HEADLINER
3A	24H1191	1	Washer	1/2" X 1-1/2" X 0.105"
3B	24H1136	1	Washer	11/32" X 11/16" X 0.065"
4A	19M8488	1	Cap Screw	M10 X 45
4B	19H3552	1	Cap Screw	5/16" X 1-1/2"
6A	T131327	1	Roof	(SUB T141859)
6B	T141859	1	Roof	(SUB FOR T131327)
6B	T160728	1	Roof	(SUB FOR T145993)
