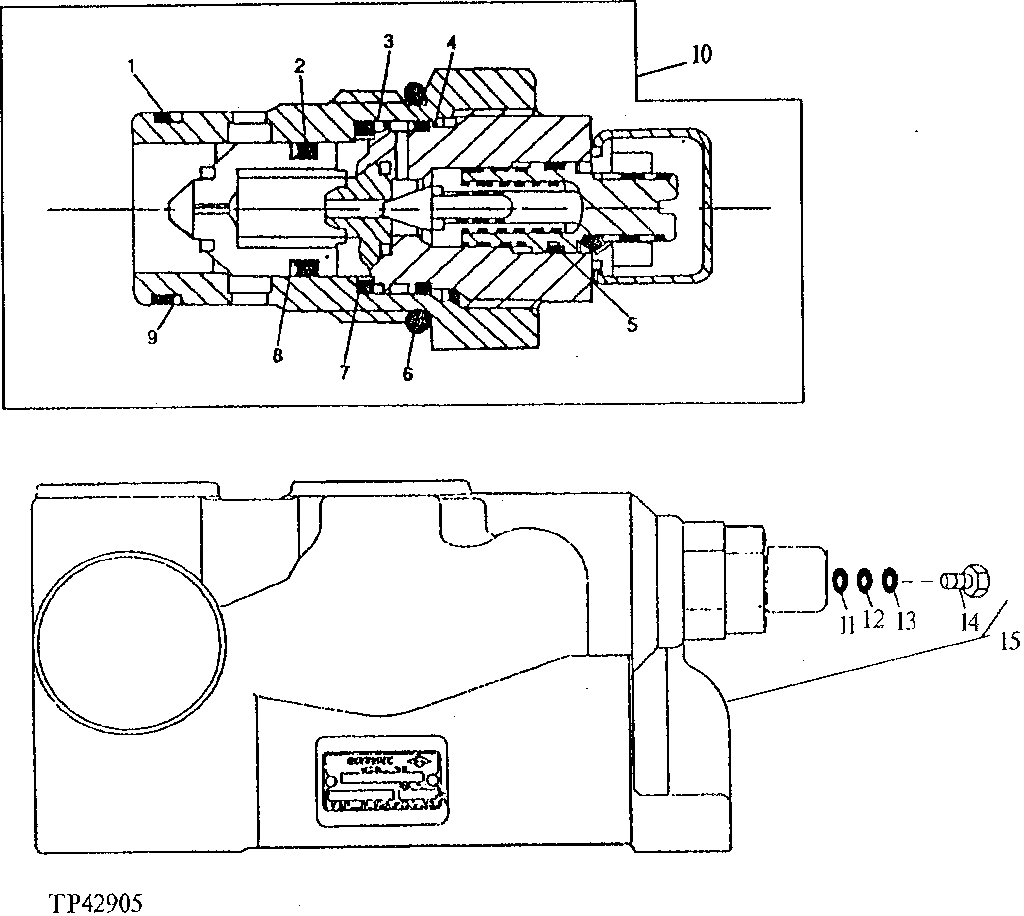

Replacement Relief Valve And Inlet Cover (SN -796890 5-Function) (SN -798064 4-Function)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T49819	1	O-Ring	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
2	R56464	1	O-Ring	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
3	U15981	1	BACK-UP RING	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
4	U15980	1	O-Ring	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
5	A3917R	1	O-Ring	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
6	U17409	1	O-Ring	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
7	T75984	1	O-Ring	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
8	-	1	Part 8	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
9	T106298	1	BACK-UP RING	(<service-part>AT160390</service-part> KIT, SEAL, RELIEF VALVE)
10	AT151150	1	PRESSURE RELIEF VALVE	-
11	R27928	1	O-Ring	(ALSO ORDER AT159816)
12	T106298	1	BACK-UP RING	-
13	U17409	1	O-Ring	-
14	-	1	Part 14	-
15	T147004	1	COVER	(SUB FOR AT143027)

Replacement Relief Valve And Inlet Cover (SN -796890 5-Function) (SN -798064 4-Function)

Нет текстового описания
