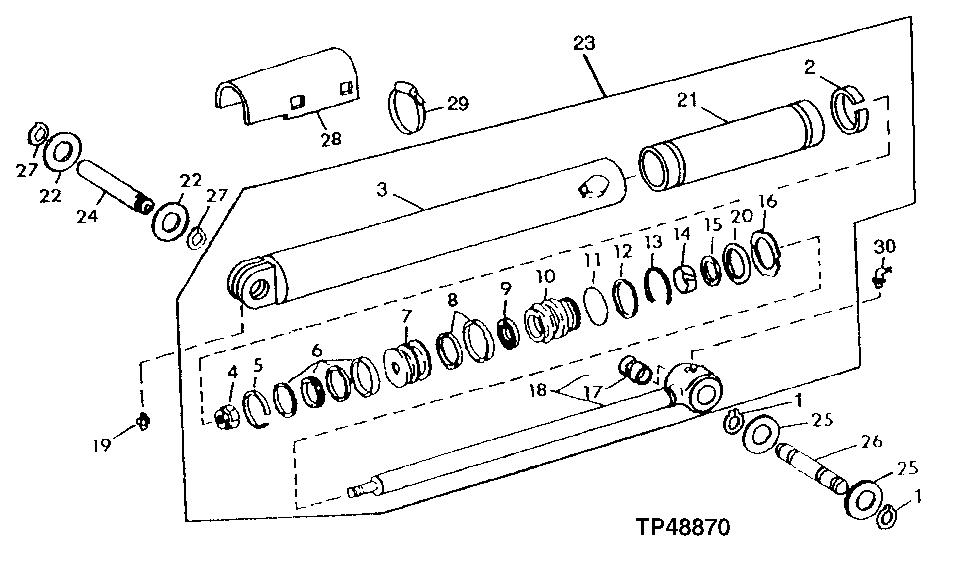

Replacement Bucket Cylinder, For Use With 1.5 m Extendible Dipperstick

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	40M7066	2	Snap Ring	-
2	R97848	2	Wear Ring	-
3	AH143311	1	Hydraulic Cylinder Barrel	-
4	H170578	1	Angle	SUB FOR R81866
5	R81776	1	Wear Ring	-
6	RE20344	1	Seal	-
7	R82090	1	Piston	-
8	AH146561	1	Seal	-
9	H152203	1	Seal	-
10	H154352	1	Hydr. Cylinder Rod Guide	-
11	F1430R	1	O-Ring	-
12	R79101	1	Back-Up Ring	-
13	R81788	1	Ring	-
14	H152794	1	Wear Ring	-
15	AH146557	1	Seal	-
16	R81794	1	Nut	-
17	R82077	1	Bushing	-
18	RE22501	1	ROD	-
19	T162396	1	Lubrication Fitting	1/8", Straight, SUB FOR JD7798
20	R91730	1	Ring	-
21	H149421	1	Spacer	-
22	24H1576	1	Washer	1-13/16" X 2-15/16" X 0.075"
22	24H1572	1	Washer	1-13/16" X 2-3/8" X 0.060"
23	AH148738	1	Hydraulic Cylinder	-
24	T100188	1	Pin Fastener	SUB FOR T125937
25	T125955	3	Washer	-
26	T140905	1	PIN FASTENER	-
27	40M7180	2	Snap Ring	-
28	T147178	1	Guard	-
29	AT125191	1	Hose Clamp	-
30	JD7799	1	Lubrication Fitting	1/8", 90°
31	AHC16765	1	Seal	USE WITH AHC19979
31	R83576	1	O-Ring	-
31	R74657	1	O-Ring	-
31	P46129	1	O-Ring	-
31	H181114	1	O-Ring	-
31	H151889	1	Back-Up Ring	-
31	AHC19979	1	Hydraulic Cylinder Kit	Bore Seal Kit, SUB FOR AH212096; INCLUDES AHC16765, H151889, H181114, P46129, R74657, R79101, R81776, R83576, R91730 AND RE20344
32	AHC16954	1	Hydraulic Cylinder Kit	Rod Seal Kit, SUB FOR AH210484; INCLUDES AH146557, AH146561, AHC10164, H152203, H152794 AND H208987
32	AHC10164	1	Seal	USE WITH AHC16954
32	H154856	1	Wear Ring	USE WITH AH210484
32	H208987	1	Wear Ring	-
33	AT162066	1	Kit	1/8", 90°, 1.5 m Extendible Dipperstick Kit, NLA; INCLUDES T147002, T141234 AND Extendible Dipperstick Kit; ALSO ORDER Link Part AT158567 If Serial Number Below 787396

Replacement Bucket Cylinder, For Use With 1.5 m Extendible Dipperstick
