Открытый узел

Multi-Purpose Bucket, 92 inch

Multi-Purpose Bucket, 92 inch

Multi-Purpose Bucket, 92 inch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

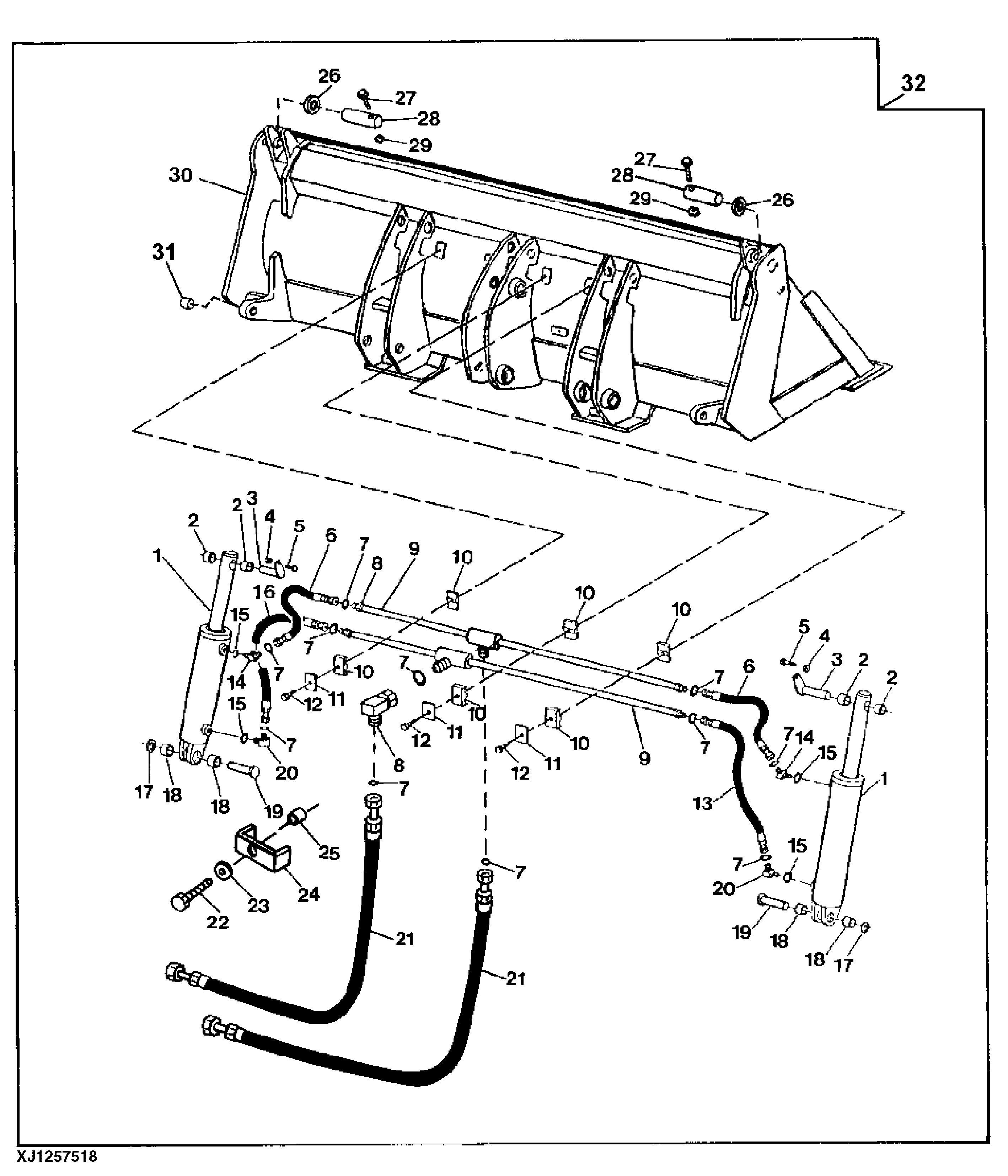

Multi-Purpose Bucket, 92 inch

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH210737	1	Hydraulic Cylinder	-
1	-	2	Part 1	( AT190880 NO LONGER AVAILABLE), (SUB FOR AT142578 ) (SUB AH210737, T191318 AND (3) 24H1138)
1	24H1138	3	Washer	1-1/16" X 2" X 0.134"
1	T191318	1	Pin Fastener	-
2	T128532	4	Bushing	26.289 X 34.798 X 19.050 mm (1.035" X 1.370" X 3/4"), (USE WITH AT142578)
2	A24073	4	Bushing	25.400 X 31.750 X 19.812 mm (1" X 1-1/4" X 0.780"), (USE WITH AT190880)
3	AT190900	2	Pin	(SUB FOR AT142584)
4	T54568	2	Lock Nut	9.525 mm (3/8")
5	19H2676	2	Cap Screw	3/8" X 1"
6	AT156437	2	Hydraulic Hose	13/16" X 431 mm (17") X 13/16"
7	T77857	13	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	38H1095	2	Elbow Fitting	-
9	AT150755	2	Oil Line	-
10	H135156	6	Clamp	-
11	H121168	3	Plate	-
12	19H2661	3	Cap Screw	5/16" X 1-3/8"
13	AT150828	1	Hydraulic Hose	RH, (SUB FOR AT142605, THIS APPLICATION)
14	38H1521	2	Elbow Fitting	-
15	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	AT142605	1	HYDRAULIC HOSE - FABRICATE	13/16" X 659 mm (26") X 13/16", LH
17	24H1138	2	Washer	1-1/16" X 2" X 0.134"
18	T128531	4	Bushing	26.289 X 34.798 X 12.700 mm (1.035" X 1.370" X 1/2"), (USE WITH AT190880)
19	-	2	Part 23	( T185041 NO LONGER AVAILBLE), (SUB FOR T128536 ) (SUB (2) T191318 AND (6) 24H1138)
19	T191318	2	Pin Fastener	-
19	24H1138	6	Washer	1-1/16" X 2" X 0.134"
20	38H1314	2	Elbow Fitting	-
21	AT142105	2	Hydraulic Hose	13/16" X 1169 mm (46") X 13/16"
22	19H1800	1	Cap Screw	3/8" X 1-1/2"
23	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
24	T126060	1	Clamp	SUB FOR U40398
25	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
26	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
27	19H2106	2	Cap Screw	7/16" X 2-3/4"
28	T167059	2	Pin	(SUB FOR T128535)
29	K40006	2	Lock Nut	11.125 mm (7/16")
30	-	1	Part 36	( AT150827 NO LONGER AVAILABLE)
31	T128534	1	Bushing	-
32	AT173734	1	Multi-Purpose Bucket	INCLUDES T139806 LABEL AND R44302 BAND, (MARKED AT150454)
32	T139806	1	Label	-
32	R44302	1	Tie Band	-
