Открытый узел

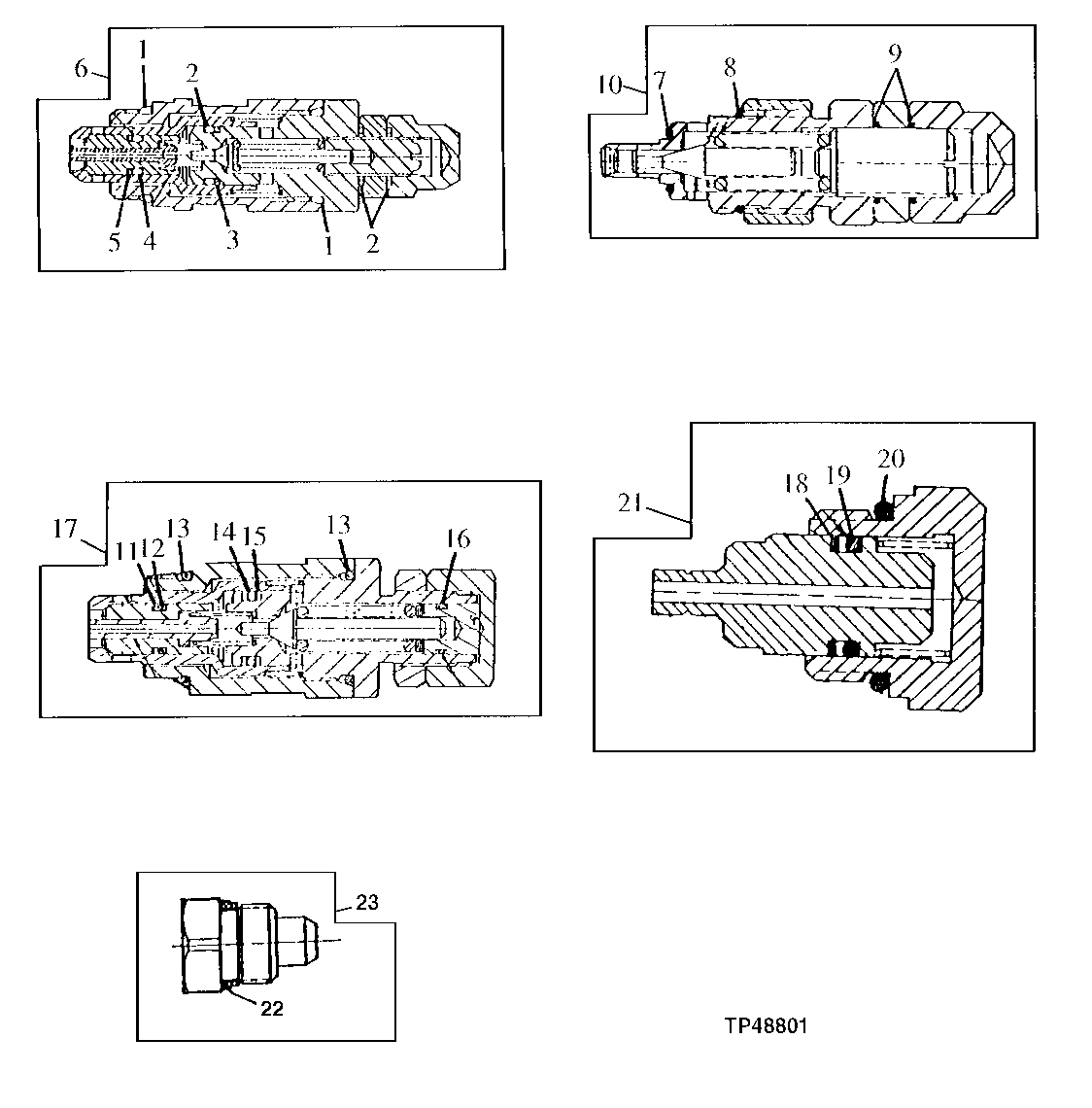

Loader Relief Valves And Kits (Husco) (801200 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
2	-	3	Part 2	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
3	-	1	Part 3	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
4	-	1	Part 4	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
5	-	1	Part 5	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
6	AT169268	1	Pressure Relief Valve	(3150 PSI) (INLET SECTION) (PUMP CLIPPER RELIEF)
7	-	1	Part 7	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
8	-	1	Part 8	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
9	-	1	Part 9	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
10	AT169269	1	Pressure Relief Valve	(4500 PSI) (BUCKET SECTION) (TOP PORT)
10	AT118501	1	Pressure Relief Valve	(3500 PSI) (BOOM SECTION) (TOP PORT), (SUB FOR AT114681, THIS APPLICATION)
11	-	1	Part 12	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
12	-	1	Part 13	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
13	U12547	2	O-Ring	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
14	-	1	Part 15	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
15	-	2	Part 16	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
16	-	1	Part 17	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
17	AT169272	1	Pressure Relief Valve	(4500 PSI) (BUCKET SECTION) (BOTTOM PORT)
18	-	1	Part 19	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
19	-	1	Part 20	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
20	U12547	1	O-Ring	(<service-part>AT314538</service-part> KIT, 7/8 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >) <service-part>AT314539</service-part> KIT, 1 1/16 INCH RELIEF VALVE SEAL KIT (SUB FOR <service-part>AT189413</service-part >))
21	AT169373	1	Check Valve	(BOOM SECTION) (BOTTOM PORT)
22	T183756	1	Seal	(SUB FOR T126301)
23	AT78527	1	Fitting Plug	(AUXILIARY SECTION) (BOTTOM PORT)

Loader Relief Valves And Kits (Husco) (801200 - )
