LOADER BUCKET CYLINDER HYDRAULICS ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1014	1	Elbow Fitting	-
1	38H1404	1	Elbow Fitting	-
2	T77932	8	O-Ring	-
3	U12547	2	O-Ring	-
4	38H1329	1	Adapter Fitting	-
4	38H1175	1	Adapter Fitting	-
5	AT124390	1	Hydraulic Hose	1" X 1411 mm (55-1/2") X 1"
6	AT124390	1	Hydraulic Hose	1" X 1411 mm (55-1/2") X 1"
7	14M7273	1	Nut	M8
8	24M7238	1	Washer	8.700 X 17 X 2 mm
9	R46919	2	Half Clamp	(SUB FOR T32707, THIS APPLICATION)
10	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
11	19M7875	1	Cap Screw	M10 X 70
12	AT170940	1	Oil Line	(SUB FOR AT150882 AND AT168156)
13	AT150883	1	Oil Line	-
14	T77858	2	O-Ring	-
15	38H1007	1	Elbow Fitting	-
16	38H1163	1	Adapter Fitting	-
17	U12547	2	O-Ring	-
18	19M8324	2	Cap Screw	M10 X 16
19	U40398	2	Clamp	-
20	19M7358	1	Cap Screw	M10 X 40
21	24H1304	2	WASHER	13/32" X 23/32" X 0.120"
22	R46919	2	Half Clamp	-
23	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
24	14M7274	1	Nut	M10
25	AT148131	1	Hydraulic Hose	1" X 1379 mm (54-1/4") X 1"
26	AT148131	1	Hydraulic Hose	1" X 1379 mm (54-1/4") X 1"
27	AT170939	1	Oil Line	(SUB FOR AT151194 AND AT168155)
28	AT151195	1	Oil Line	-
29	T105773	1	Guide	-
30	C16054	1	Clamp	(SUB FOR AC15595, THIS APPLICATION)
31	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
32	T105720	1	Clamp	-
33	19M7662	1	Cap Screw	M10 X 30

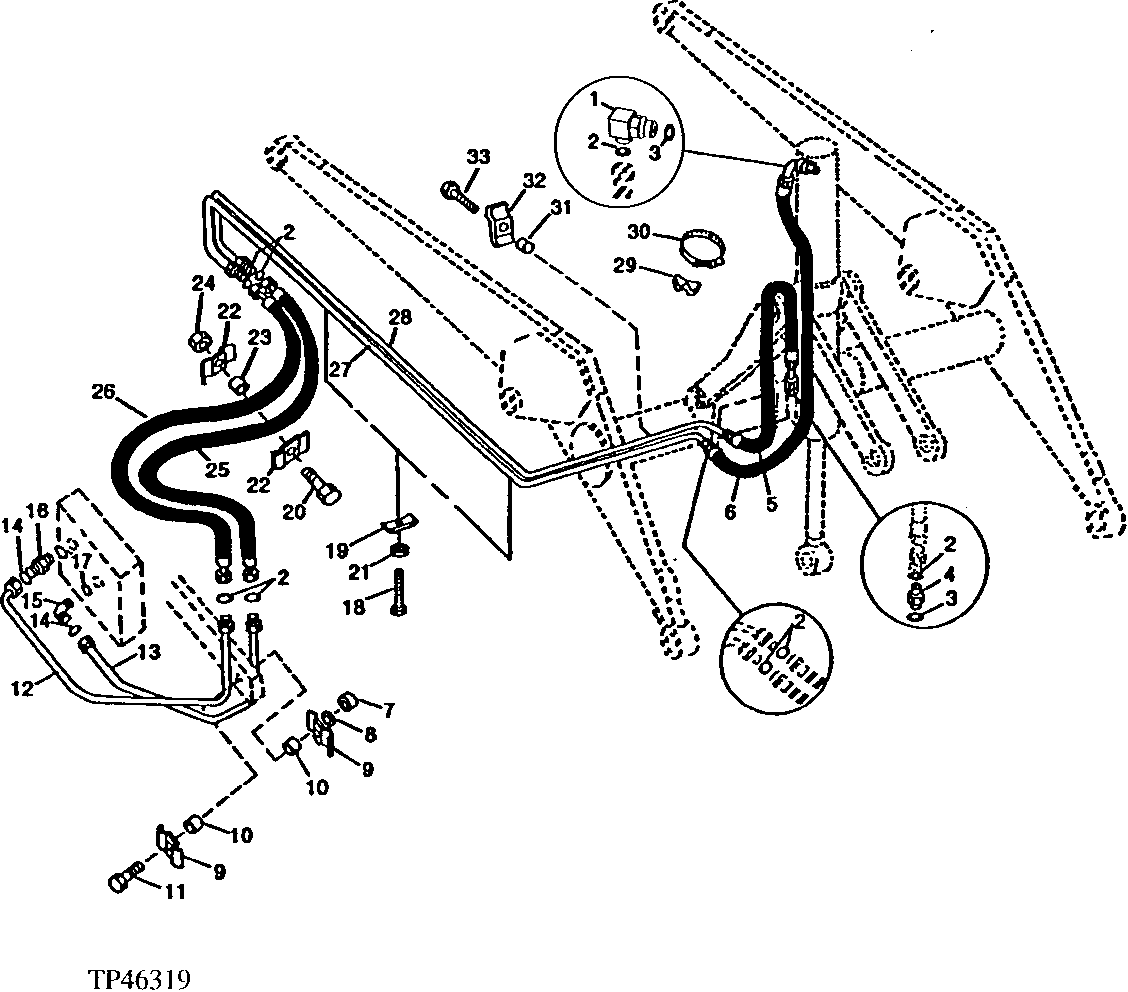

LOADER BUCKET CYLINDER HYDRAULICS ( - 801199)
