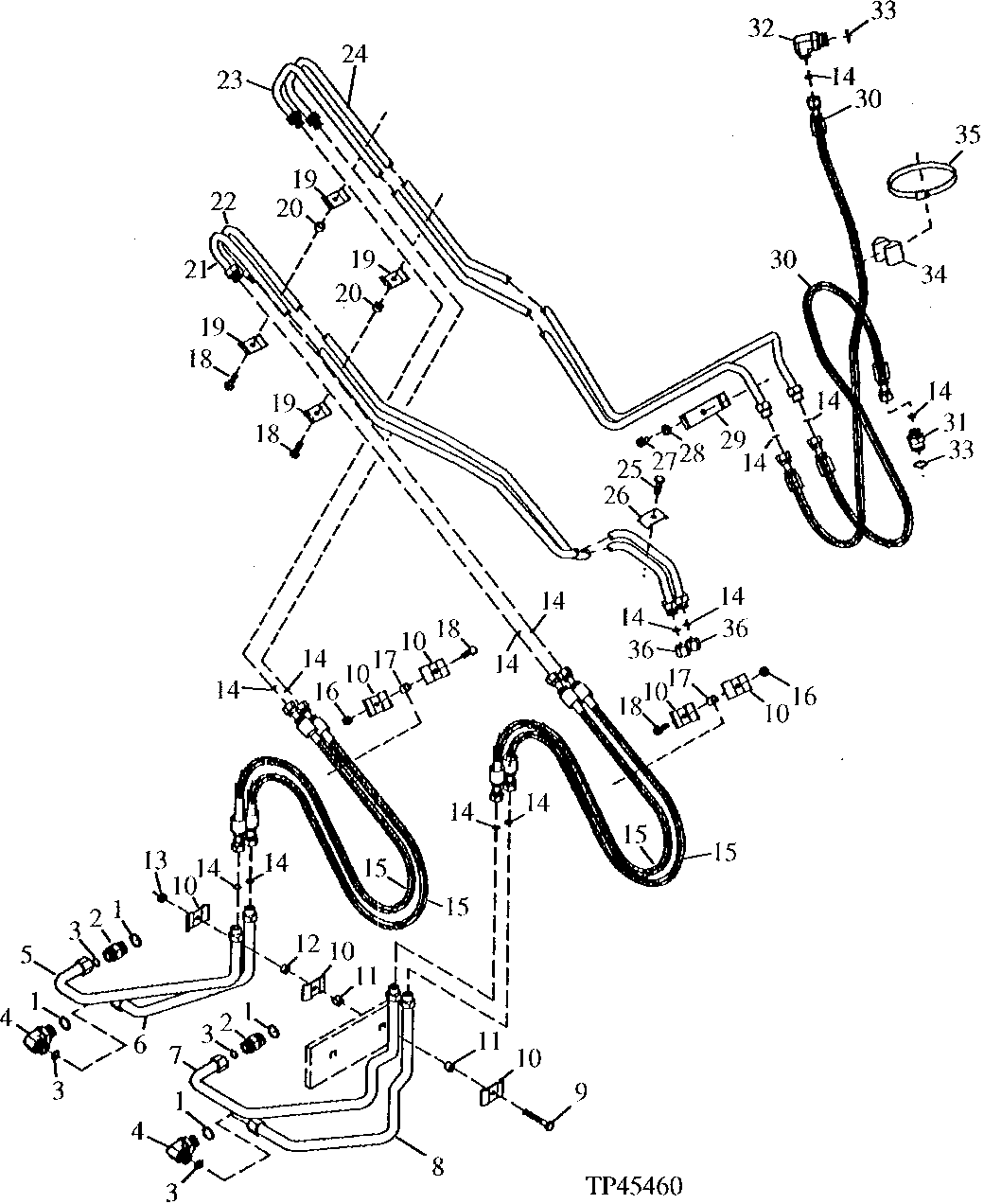

Loader Bucket Cylinder and Third Function Hydraulics (801200 - 807613)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	4	O-Ring	-
2	38H1329	2	Adapter Fitting	-
3	T77932	4	O-Ring	-
4	38H1404	2	Elbow Fitting	-
5	AT164185	1	Oil Line	-
6	AT164184	1	Oil Line	-
7	AT166646	1	Oil Line	-
8	AT164191	1	Oil Line	-
9	19M7935	1	Cap Screw	M10 X 55, (TWO FUNCTION)
9	19M7875	1	Cap Screw	M10 X 70, (THREE FUNCTION)
10	R46919	7	Half Clamp	-
11	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
12	28H3412	1	Washer	0.493" X 0.675" X 3/8"
13	14M7274	1	Nut	M10
14	T77857	14	O-Ring	-
15	AT145154	4	Hydraulic Hose	13/16" X 1270 mm (50") X 13/16"
16	14M7274	2	Nut	M10
17	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
18	19M7550	4	Cap Screw	M10 X 35, (THREE FUNCTION)
18	19M7932	4	Cap Screw	M8 X 16, (TWO FUNCTION)
19	U10516	4	Hose Clamp	-
20	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
21	AT151323	1	Oil Line	-
22	AT151322	1	Oil Line	-
23	AT166984	1	Oil Line	-
24	AT166985	1	Oil Line	-
25	19M7550	1	Cap Screw	M10 X 35
26	U10516	1	Hose Clamp	-
27	19M7938	1	Cap Screw	M10 X 20
28	24M7239	1	Washer	10.700 X 21 X 2.500 mm
29	T105720	1	Clamp	-
30	AT145676	2	Hydraulic Hose	13/16" X 1325 mm (52-1/4") X 13/16"
31	38H1175	1	Adapter Fitting	-
32	38H1013	1	Elbow Fitting	-
33	U12547	2	O-Ring	-
34	T105773	1	Guide	-
35	AH104837	1	Hose Clamp	-
36	38H1416	2	Fitting	-
