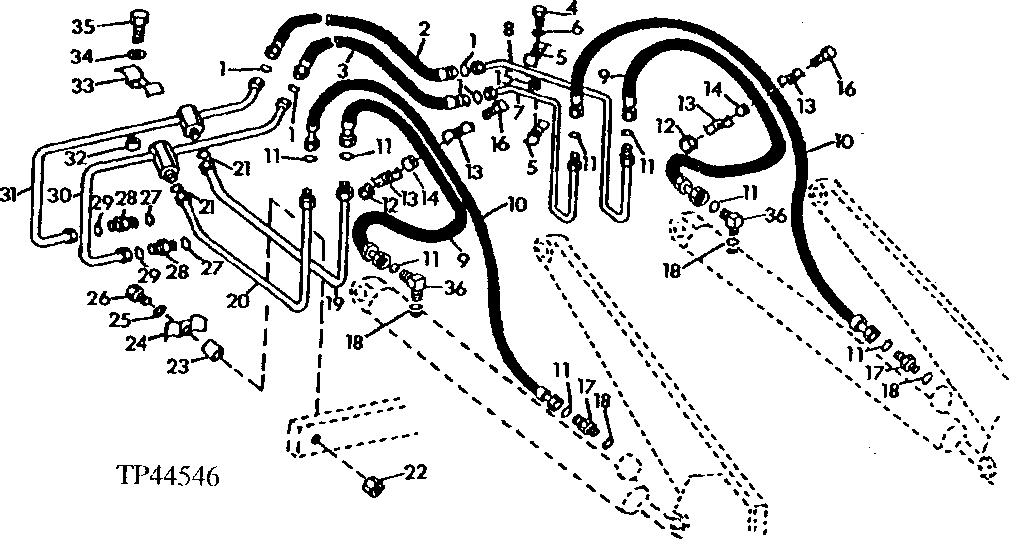

Loader Boom Lift Cylinder Hydraulics ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	4	O-Ring	-
2	AT150870	1	Hydraulic Hose	-
2	AT165363	1	Hydraulic Hose	-
3	AT150870	1	Hydraulic Hose	-
3	AT165363	1	Hydraulic Hose	-
4	19M7407	2	Cap Screw	M8 X 25
5	R46919	4	Half Clamp	-
6	24M7238	1	Washer	8.700 X 17 X 2 mm
7	AT150869	1	Oil Line	-
7	AT165116	1	Oil Line	-
8	AT150868	1	Oil Line	-
8	AT165115	1	Oil Line	-
9	-	2	Part 13	( AT145152 NO LONGER AVAILABLE), (SUB AT164059 AND (2) 38H1013)
9	AT164059	2	Hydraulic Hose	-
10	AT145154	2	Hydraulic Hose	13/16" X 1270 mm (50") X 13/16"
11	T77857	8	O-Ring	-
12	14M7274	2	Nut	M10
13	R46919	4	Half Clamp	-
14	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
15	28H1519	2	Washer	0.493" X 0.675" X 3/8", HEX FLANGE
16	19M7550	2	Cap Screw	M10 X 35
17	38H1175	2	Adapter Fitting	(SUB FOR 38H1174, THIS APPLICATION)
18	U12547	4	O-Ring	(SUB FOR R26906, THIS APPLICATION)
19	AT150884	1	Oil Line	-
20	AT150885	1	Oil Line	-
21	T77858	2	O-Ring	-
22	14M7273	2	Nut	M8
22	14M7274	1	Nut	M10, (THIRD FUNCTION)
23	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
24	R46919	1	Half Clamp	(SUB FOR T32707, THIS APPLICATION)
25	24M7238	1	Washer	8.700 X 17 X 2 mm
26	19M7322	1	Cap Screw	M8 X 35
26	19M8081	1	Cap Screw	M10 X 80, (THIRD FUNCTION)
27	U12547	2	O-Ring	-
28	38H1163	2	Adapter Fitting	-
29	T77858	2	O-Ring	-
30	AT150622	1	Oil Line	-
31	AT150621	1	Oil Line	-
32	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
33	R46919	1	Half Clamp	-
34	24M7238	1	Washer	8.700 X 17 X 2 mm
35	19M7322	1	Cap Screw	M8 X 35
36	38H1175	2	Adapter Fitting	-
36	38H1013	2	Elbow Fitting	-

Loader Boom Lift Cylinder Hydraulics ( - 801199)
