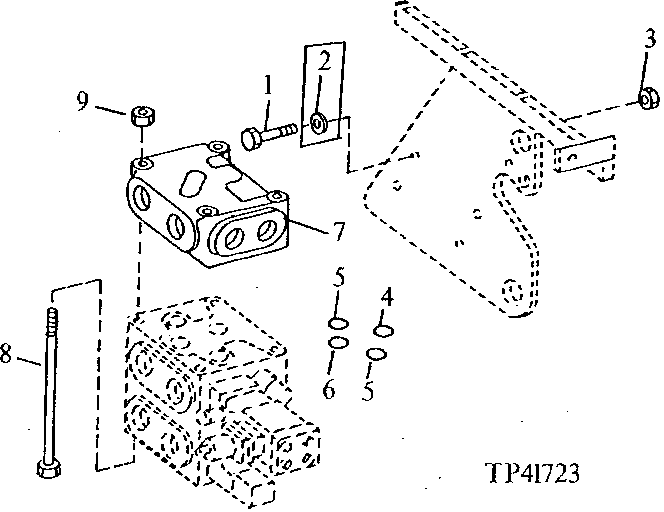

Inlet Section, Valve Section Seals And Tie Bolts (Gresen) ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8011	3	Cap Screw	M12 X 30
2	24M7240	3	Washer	13 X 25 X 3 mm
3	14M7275	3	Nut	M12
4	T143166	2	O-Ring	(<service-part>AT159848</service-part> KIT, SECTION SEAL) (SUB FOR (2) T106369)
4	T143166	3	O-Ring	(<service-part>AT159848</service-part> KIT, SECTION SEAL) (SUB FOR (3) T106369)(THIRD FUNCTION)
5	T106370	2	O-Ring	(<service-part>AT159848</service-part> KIT, SECTION SEAL)
5	T106370	3	O-Ring	(<service-part>AT159848</service-part> KIT, SECTION SEAL) (THIRD FUNCTION)
6	T49819	4	O-Ring	(<service-part>AT159848</service-part> KIT, SECTION SEAL) (SUB FOR T106368)
6	T49819	6	O-Ring	(<service-part>AT159848</service-part> KIT, SECTION SEAL) (THIRD FUNCTION), (SUB FOR T106368)
7	-	1	Part 10	( T126095 NO LONGER AVAILABLE), (SUB T145253 ) (ALSO ORDER 38H1037 AND R29936)
7	T145253	1	HYD ACTUATED CONTROL VALVE	-
8	19H3274	4	Cap Screw	3/8" X 7", (TWO FUNCTION)
8	T135377	4	Rod	(THIRD FUNCTION)
9	14H1076	4	Nut	3/8"

Inlet Section, Valve Section Seals And Tie Bolts (Gresen) ( - 801199)
