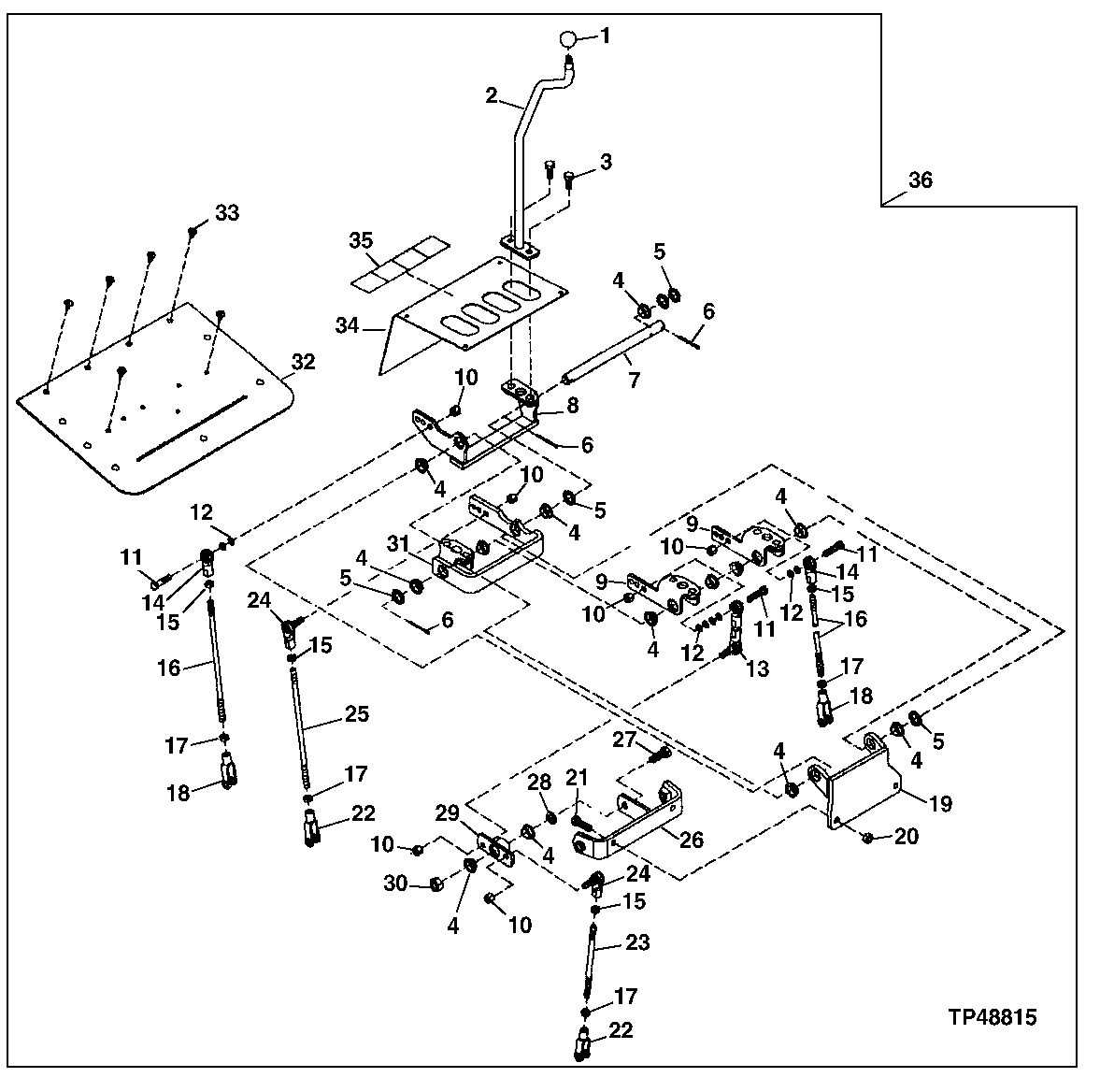

Four-Lever Control Valve Linkage (For Standard Backhoe) (801200 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T35233	1	Grip	-
2	AT169512	1	Lever	-
3	19M7402	2	Cap Screw	M10 X 25
4	T125808	13	Bushing	-
5	24H1746	5	Washer	25/32" X 1-1/8" X 0.120"
6	11M7087	3	Cotter Pin	4 X 40 mm
7	T140650	1	Shaft	-
8	AT150763	1	Base	-
9	AT150762	2	Base	-
10	M68954	6	Lock Nut	9.525 mm (3/8")
11	19H3663	3	Cap Screw	3/8" X 1-1/2"
12	M359T	8	Washer	9.703 X 14.275 X 1.600 mm (0.382" X 9/16" X 1/16")
13	AT158198	1	Link	-
14	AE37072	2	Link End	-
15	14H1080	2	Nut	3/8", (SUB FOR 14H774, THIS APPLICATION)
16	T148741	2	Rod	(USE WITH AT168916)
16	T161213	2	Rod	(USE WITH AT178775)
16	T165222	1	Rod	(USE WITH AT183943)
17	14H913	4	Nut	3/8"
18	T140328	2	Yoke	-
19	AT169557	1	Support	-
20	14M7274	2	Nut	M10
21	19M7358	2	Cap Screw	M10 X 40
22	T140328	2	Yoke	-
23	T148848	1	Rod	(USE WITH AT168916)
23	T158812	1	Stud	(USE WITH AT178775)
23	T165214	1	Stud	(USE WITH AT183943)
24	AT169087	2	Ball Joint	-
25	T148741	1	Rod	(USE WITH AT168916)
25	T158810	1	Rod	(USE WITH AT178775)
25	T165222	1	Rod	(USE WITH AT183943)
26	AT179513	1	Support	(SUB FOR AT175356 AND AT151368)
27	19H3030	1	Cap Screw	1/2" X 1-1/4"
28	24M7047	1	Washer	13 X 24 X 2.500 mm
29	AT158197	1	Bellcrank	-
30	T141126	1	Spacer	-
31	AT150764	1	Base	-
32	T153058	1	Gasket	-
33	T133009	6	Plug	-
34	T140229	1	Panel	-
35	T140649	1	Label	-
36	AT183943	1	Mounting Parts	(ALSO ORDER AT184192 ) (SUB FOR AT168916 AND AT178775)

Four-Lever Control Valve Linkage (For Standard Backhoe) (801200 - )

Нет текстового описания
