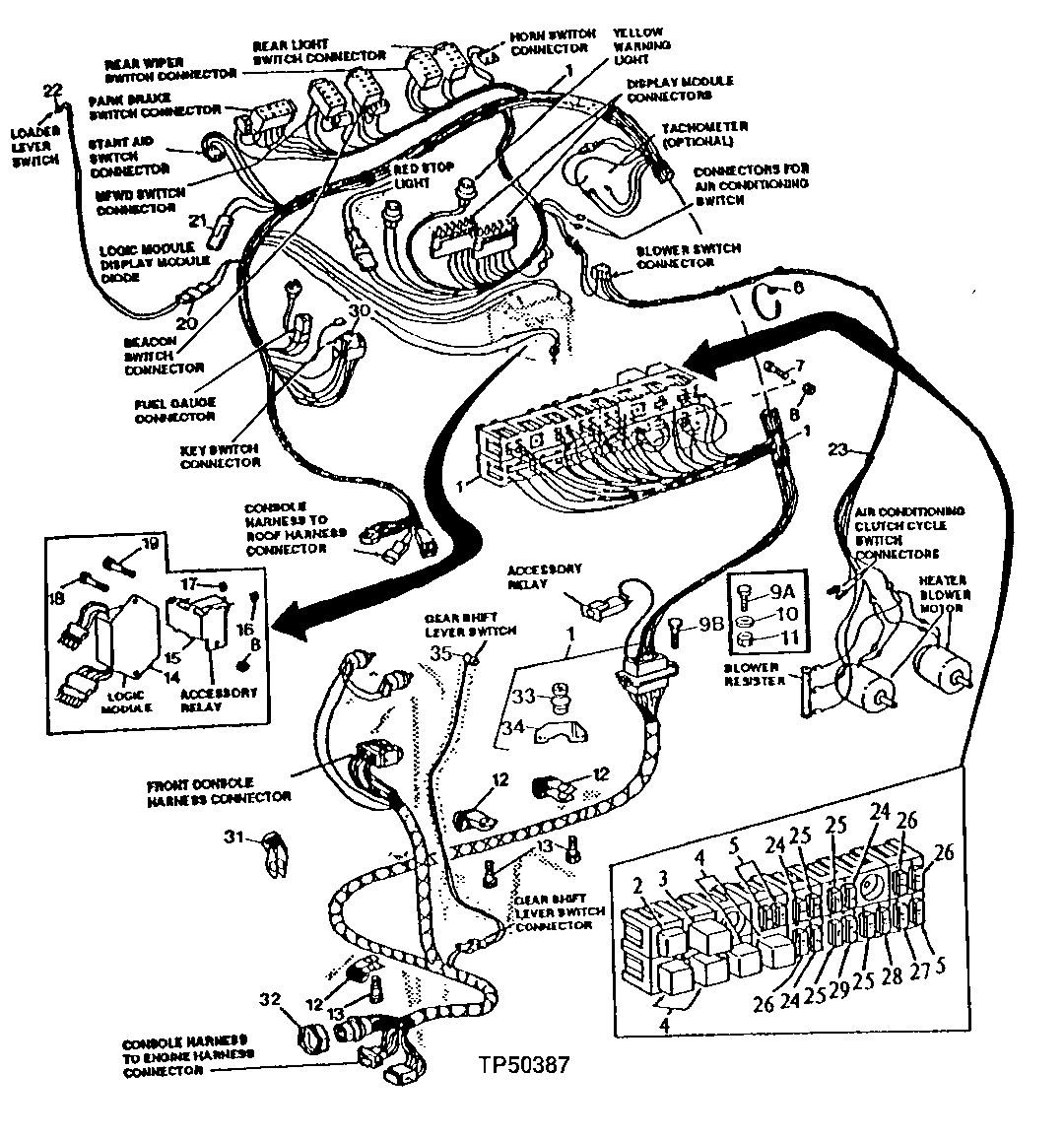

Floor And Side Console Wiring Harnesses And Components (w/ Cab) (778669 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT171218	1	Wiring Harness	(SUB FOR AT165931 ) (ALSO ORDER (2) 37H132)
1	AT179621	1	Wiring Harness	(SUB FOR AT173862)
1	-	1	Part 1	CAB AND CONSOLE ( AT165931- USE IF AVAILABLE), (SUB AT171218 ) (SUB FOR AT156309 AND AT162188)
2	AR91168	1	Relay	6-VOLT (ALTERNATOR)
3	T215293	1	Flasher	12 VOLT, (SUB FOR AT163088)
4	RE68327	4	Relay	MINI WITH RESISTOR (PARK LIGHT, ETHER AID, NEUTRAL, PARK BRAKE), (SUB FOR AL77324, AND RE48876THIS APPLICATION)
5	57M7121	3	Fuse	10-AMP (START, FNR/PARK, RTD/BEACON)
6	R44302	4	Tie Band	-
7	T83060	2	Screw	-
8	M40333	4	Lock Nut	-
8	M40333	6	Lock Nut	-
10	24M7138	2	Washer	5.300 X 15 X 1 mm
11	14M7100	1	Nut	M4
12	T102934	3	Clamp	-
13	19M7932	1	Cap Screw	M8 X 16
13	24M7238	1	Washer	8.700 X 17 X 2 mm
14	AT107670	1	Module	-
15	AR73144	1	Relay	(SUB FOR AT142305, ALSO ORDER (2) 14H785 AND (2) 12M7065)
15	12M7065	2	Lock Washer	8 mm
16	14H785	2	Nut	5/16", (USE WITH AR73144)
16	14H650	2	Nut	5/16", (USE WITH AT142305 ) (SUB FOR R11151, THIS APPLICATION)
17	14H631	1	Nut	0.190"
18	T83060	2	Screw	-
19	T83060	2	Screw	-
20	RE12363	1	Electrical Connector Assy	-
21	AR94101	1	Diode	-
22	AT162180	1	Switch	(SUB FOR AT150623 AND AT151784)
23	AT141449	1	Wiring Harness	HEATER AND AIR CONDITIONER MOTOR
23	AT169618	1	Wiring Harness	HEATER AND AIR CONDITONER BLOWER MOTOR
24	57M7125	3	Fuse	5-AMP (MONITOR/GAUGES, RADIO, DOME/RADIO)
25	99M7065	4	Fuse	15-AMP (FUEL/ETHER/BACKUP ALARM, HAZARD/ MONITOR, WIPER, REAR LIGHTS)
26	99M7064	3	Fuse	7.5-AMP (RIGHT AND LEFT TURN, MFWD/ALTERNTOR)
27	57M7120	1	Fuse	20-AMP (TURN/STOP/HORN)
28	99M7069	1	Fuse	25-AMP (FRONT LIGHTS/TAIL LIGHTS)
29	57M7146	1	Fuse	-
29	T102781	1	CIRCUIT BREAKER	30-AMP (HEATER/AIR CONDITIONER)
30	L38138	1	Elec. Connector Housing	-
31	T120536	1	Clamp	-
32	E73240	1	Nut	-
33	-	1	Part 42	-
34	-	1	Part 43	-
35	AT162180	1	Switch	CLUTCH DISCONNECT
9A	37H142	1	Screw	0.164" X 1"
9B	37H132	2	Screw	0.216" X 3/4"
