Extendible Dipperstick Cylinder (For Use With 1.5M Extendible Dippperstick) ( - 787395)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T79781	1	BUSHING	-
2	-	2	Part 2	(<service-part>AT79722</service-part> REPAIR KIT)
3	T79782	1	PISTON	-
4	-	1	Part 4	(<service-part>AT79722</service-part> REPAIR KIT)
5	A3190R	1	O-Ring	(<service-part>AT79722</service-part> REPAIR KIT)
6	14H875	1	Nut	7/8"
7	34H284	1	Spring Pin	3/16" X 1-1/4"
8	T14787	1	Clamp	-
9	38H1405	1	Elbow Fitting	-
10	19H2038	1	Cap Screw	3/8" X 1/2"
10	28H1884	1	Spacer	0.493" X 0.675" X 1/2"
11	12H304	1	Lock Washer	3/8"
11	24H1308	1	Washer	13/32" X 1" X 0.134"
12	AT84175	1	Adapter Fitting	-
13	AT84176	1	OIL LINE	-
14	AT80099	1	HYDRAULIC CYLINDER BARREL	-
15	38H1317	1	Fitting	-
16	22H897	1	Set Screw	1/4" X 1/4"
17	T79719	1	HYDR. CYLINDER ROD GUIDE	-
18	-	1	Part 20	(<service-part>AT79722</service-part> REPAIR KIT)
19	AT79728	1	HYDRAULIC CYLINDER ROD	-
20	T79720	1	BUSHING	-
21	-	1	Part 23	(<service-part>AT79722</service-part> REPAIR KIT)
22	R35684	1	BACK-UP RING	(<service-part>AT79722</service-part> REPAIR KIT)
23	T41471	1	SNAP RING	(<service-part>AT79722</service-part> REPAIR KIT)
24	U12331	2	O-Ring	(<service-part>AT79722</service-part> REPAIR KIT)
25	T77932	2	O-Ring	-
26	T100974	1	GROMMET	-
27	T19572	1	Washer	-
28	R26375	2	O-Ring	-
29	H35226	4	Snap Ring	-
30	T113347	1	PIN	-
31	B28568	1	DOWEL PIN	-
32	-	1	Part 34	( AT84174 NO LONGER AVAILABLE), (SUB AH216316, AT167718, (2) AT164788 AND AT159058)

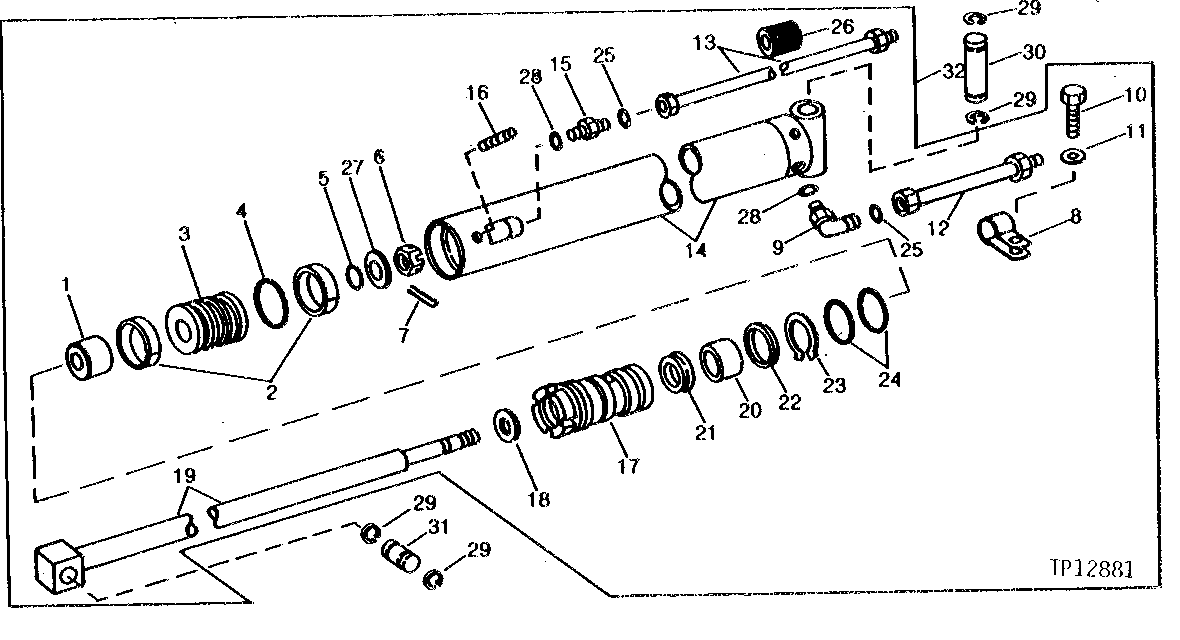

Extendible Dipperstick Cylinder (For Use With 1.5M Extendible Dippperstick) ( - 787395)
