EXTENDIBLE DIPPERSTICK AND BUCKET CYLINDER HYDRAULICS ( - 801199)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT160360	2	Oil Line	1.2M
1	AT101494	2	Oil Line	1.2M
1	AT161753	2	Tube	1.5M
1	AT101778	2	OIL LINE	1.5M
2	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
2	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
3	24M7028	2	Washer	10.500 X 20 X 2 mm
3	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
4	T24958	2	Clip	-
5	T77857	8	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
6	19M7662	1	Cap Screw	M10 X 30
6	19M7932	2	Cap Screw	M8 X 16
7	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
8	38H1007	1	Elbow Fitting	90 DEGREE - 1.2M
9	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070"), 1.2M
9	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070"), 1.5M
10	AT133154	1	Hydraulic Hose	1" X 1875 mm (73-3/4") X 1"
10	AT162077	1	Hydraulic Hose	1" X 2286 mm (90") X 1", 1.5M
10	AT162077	1	Hydraulic Hose	1" X 2286 mm (90") X 1"
11	38H1007	1	Elbow Fitting	1.5M (TO HEAD END CROWD CYLINDER)
12	AT101469	1	OIL LINE	1.2M
12	AT101425	1	Oil Line	1.5M
13	AT101472	1	OIL LINE	1.2M
13	AT101423	1	Oil Line	1.5M
14	28H1521	1	Spacer	0.493" X 0.675" X 9/16", 1.5M (CROWD LINE CLAMP)
15	R46414	2	Clamp	1.2M
16	U40398	3	Clamp	-
17	28H1521	3	Spacer	0.493" X 0.675" X 9/16"
18	19M7658	2	Cap Screw	M10 X 50, 1.2M
20	38H1350	2	Adapter Fitting	STRAIGHT
20	38H1175	2	Adapter Fitting	-
21	U17409	2	O-Ring	26.594 X 2.946 mm (1-3/64" X 0.116")
21	U12547	2	O-Ring	-
22	AT101471	1	Oil Line	1.2M
22	AT101422	1	Oil Line	1.5M, (SUB AT175073 AND (2) 24H1424)
22	AT175073	1	Oil Line	-
23	AT101470	1	Oil Line	1.2M
23	AT101424	1	Oil Line	1.5M
24	U40398	1	Clamp	1.5M (CROWD LINE TO BOOM)
25	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
26	AT135293	1	HYDRAULIC HOSE - FABRICATE	13/16" X 2670 mm (105") X 13/16", 1.2M
26	AT133157	1	Hydraulic Hose	13/16" X 3074 mm (121") X 13/16", 1.2M
26	AT133157	1	Hydraulic Hose	13/16" X 3074 mm (121") X 13/16"
27	19M7550	2	Cap Screw	M10 X 35
28	U40398	2	Clamp	-
29	28H1697	1	Spacer	0.493" X 0.675" X 3/4", (SUB FOR M74635)
30	AT101444	2	HYDRAULIC HOSE - FABRICATE	13/16" X 780 mm (30-3/4") X 13/16"
31	AT162888	1	Oil Line	-
32	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
33	T78716	1	Nut	-
34	T80306	1	Nut	-
35	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
36	24H1424	2	Washer	29/32" X 1-1/2" X 0.060"
37	AT163134	1	Dipperstick	HYDRAULICS 1.2M
37	AT166200	1	Dipperstick	HYDRAULICS 1.5M, (SUB FOR AT163140)
19A	AT133152	2	Hydraulic Hose	13/16" X 1459 mm (57-1/2") X 13/16"
19B	AT133151	2	Hydraulic Hose	-

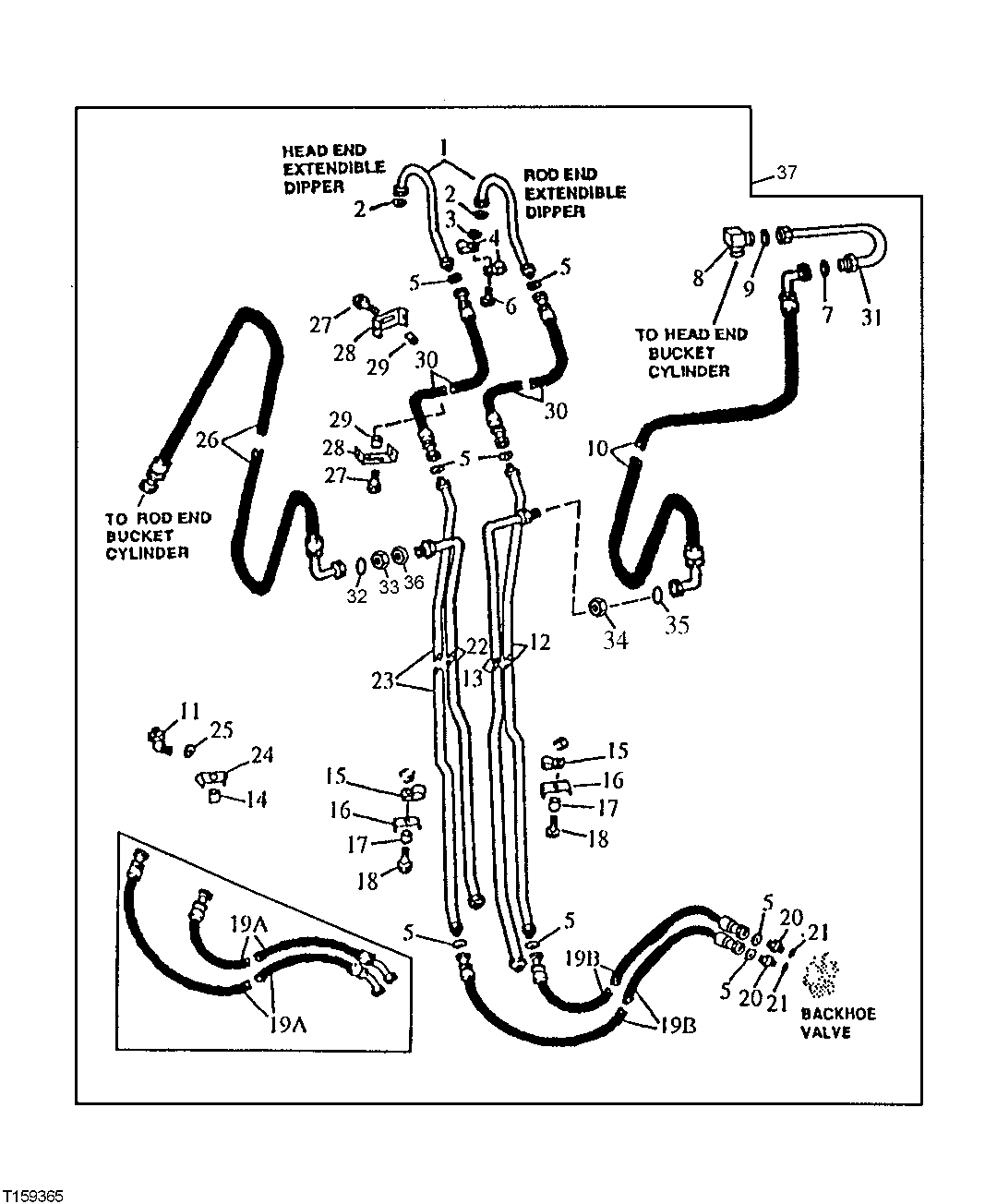

EXTENDIBLE DIPPERSTICK AND BUCKET CYLINDER HYDRAULICS ( - 801199)
