Crowd Cylinder (For Use With Standard Boom) (Replacement Cylinder)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1589	1	Washer	2" X 3-3/16" X 0.036", FOR STANDARD BOOM
2	R81968	1	Bushing	-
2	R97724	1	Bushing	-
3	RE22686	1	HYDRAULIC CYLINDER BARREL	-
3	AH138197	1	Hydraulic Cylinder Barrel	-
4	JD7799	1	Lubrication Fitting	90% X 19.558 mm en_USLONG (0.770" en_USLONG)
5	R81775	1	Wear Ring	(BK)
6	RE20343	1	Seal	(BK)
7	H144765	1	PISTON	-
8	AH146562	1	Seal	(RK)
9	H152204	1	Seal	-
10	H157427	1	Hydr. Cylinder Rod Guide	-
11	F950R	1	O-Ring	(BK)
12	R81862	1	Back-Up Ring	(BK)
13	R81787	1	Snap Ring	-
14	H152795	1	Wear Ring	(RK)
15	AH146558	1	Seal	(RK)
16	R81793	1	Nut	M90
17	14M7319	1	Lock Nut	M12
18	AH138663	1	HYDRAULIC CYLINDER ROD	-
19	T162396	1	Lubrication Fitting	1/8", STRAIGHT, (SUB FOR JD7798)
20	19M7908	1	Cap Screw	M12 X 110
21	H145161	1	Cap Screw	M33 X 80
22	H145139	1	Washer	34.700 X 54 X 6.200 mm (1.366" X 2.126" X 0.244")
23	R82077	1	Bushing	-
24	R91731	1	Ring	(BK) (DISASSEMBLY AID TOOL)
26	T143647	1	Pin Fastener	55 X 263 mm (2.165" X 10.354")
26	T126033	1	PIN FASTENER	55 X 237 mm (2.165" X 9.331"), (USE WITH EXTENDIBLE DIPPERSTICK)
26	T142121	1	Pin Fastener	55 X 230 mm (2.165" X 9.055"), USE WITH 1.7M DIPPERSTICK
26	T125936	1	PIN FASTENER	55 X 263 mm (2.165" X 10.354"), USE WITH 1.9M DIPPERSTICK
27	19M7949	1	Cap Screw	M12 X 100, USE WITH 1.7M DIPPERSTICK
27	19M7949	1	Cap Screw	M12 X 100, USE WITH 1.9M AND 1.2M DIPPERSTICK
27	19M7914	1	Cap Screw	M12 X 120
28	14M7319	1	Lock Nut	M12, USE WITH 1.9M AND 1.2M DIPPERSTICK
28	14M7319	1	Lock Nut	M12, USE WITH 1.7M DIPPERSTICK
29	R81796	1	Ring	SPLIT, BRAKE SEAL
30	24H1679	1	Washer	2-17/64" X 3-1/4" X 0.060"
31	AH230367	1	Hydraulic Cylinder	SUB FOR AH150119
31	AH154776	1	Hydraulic Cylinder	-
32	40M7166	2	Snap Ring	-
25A	T125943	1	PIN FASTENER	50 X 216 mm (1-31/32" X 8.504")
25B	T142699	1	Pin	-
25B	T142484	1	Pin Fastener	-

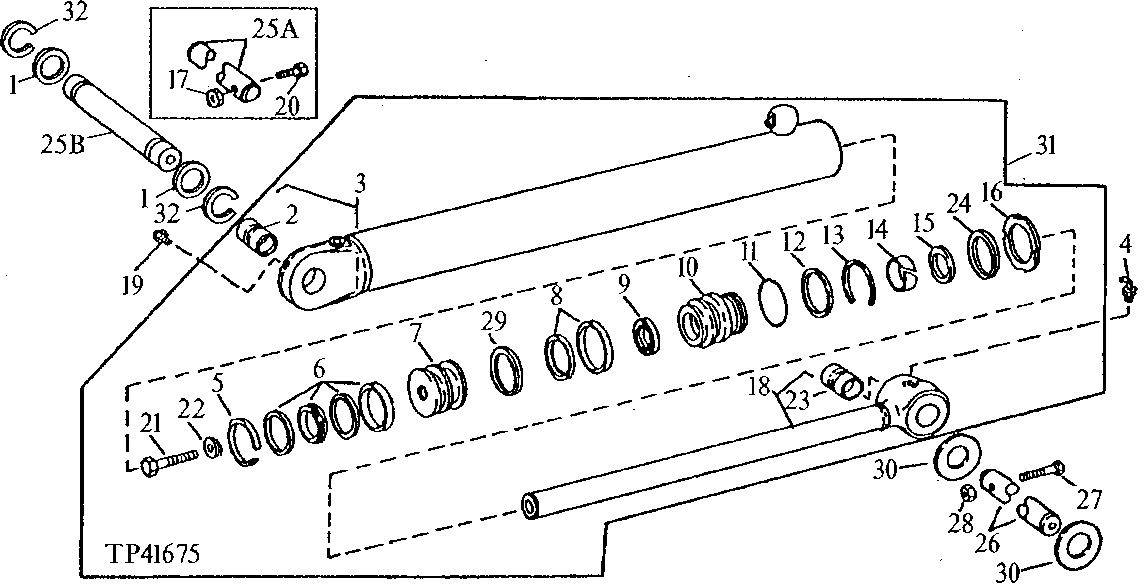

Crowd Cylinder (For Use With Standard Boom) (Replacement Cylinder)
