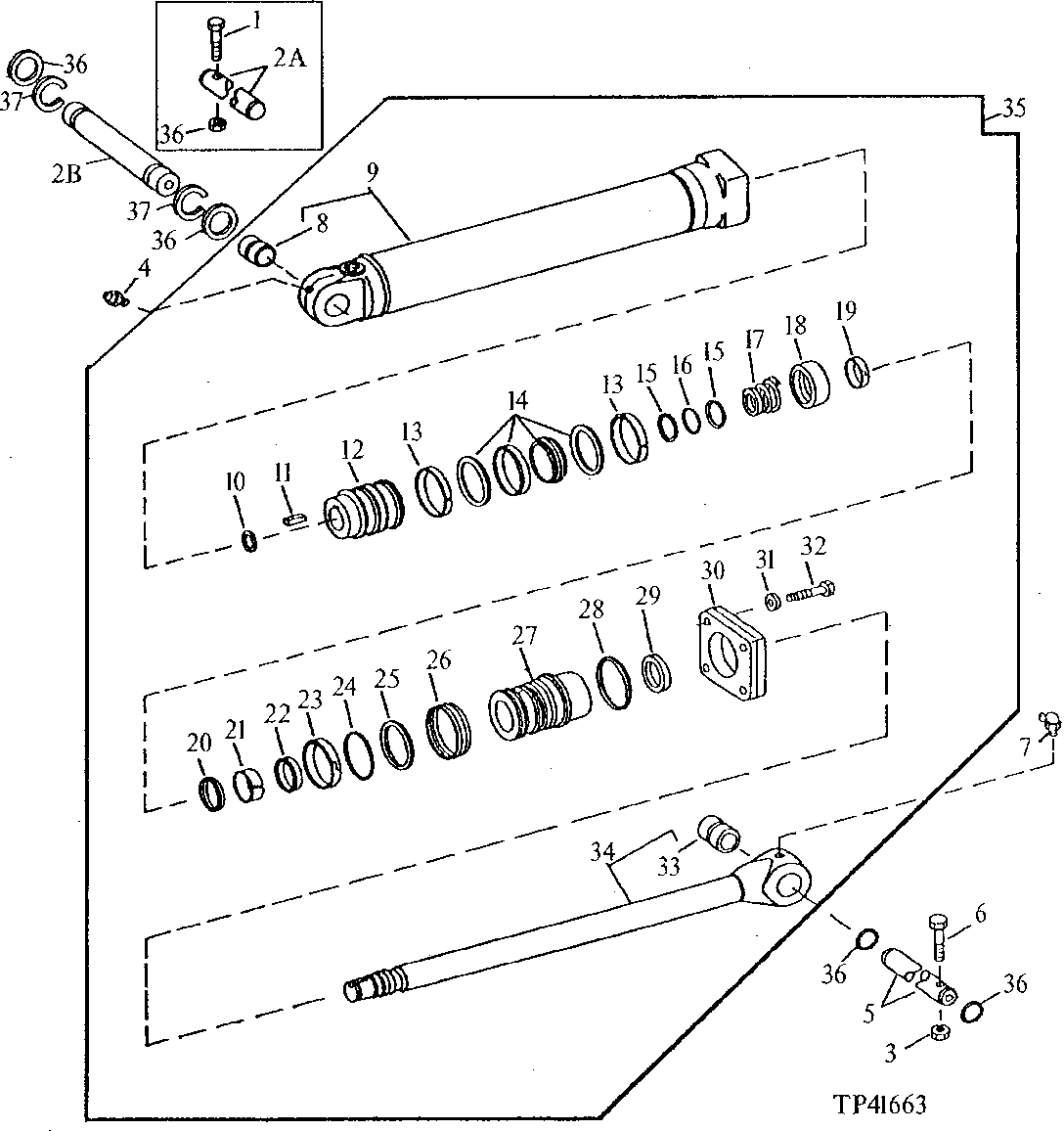

Crowd Cylinder (410D Heavy Lift, 510D Standard) ( - 798466)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7914	1	Cap Screw	M12 X 120
3	14M7319	1	Lock Nut	M12
4	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
5	T125936	1	PIN FASTENER	USE WITH 1.9M AND 2.1M DIPPERSTICK
5	T147002	1	Pin	(WITH 1.2M AND 1.5M EXTENDIBLE DIPPERSTICK)
6	19M7949	1	Cap Screw	M12 X 100
7	JD7799	1	Lubrication Fitting	-
8	R82075	1	Bushing	-
9	-	1	Part 11	( AH135268 NO LONGER AVAILABLE), (SUB AH143715)
10	R83216	1	Snap Ring	-
11	R83215	1	Shaft Key	-
12	H141559	1	PISTON	-
13	R82095	2	Wear Ring	(BK)
14	RE20809	1	Seal	(BK)
15	R86290	2	Back-Up Ring	(RK)
16	R26282	1	O-Ring	(RK)
17	H140819	1	Spring	-
18	H140817	1	CUSHION	-
19	H140822	1	Back-Up Ring	-
20	RE22776	1	Seal	(RK)
21	R83213	1	Wear Ring	(RK)
22	RE30121	1	Seal	(RK)
23	H140821	1	BACK-UP RING	-
24	P46765	1	O-RING	-
25	R79001	1	Back-Up Ring	(BK), (DISASSEMBLY AID TOOL)
26	H141511	1	SPACER	-
27	H140812	1	HYDR. CYLINDER ROD GUIDE	-
28	H141980	1	Sealing Washer	(BK)
29	RE22777	1	Seal	(RK)
30	H140827	1	HYDR. CYLINDER ROD GUIDE	-
31	H140825	4	WASHER	-
32	19M7892	4	Cap Screw	M20 X 80
33	R83221	1	BUSHING	-
34	AH135272	1	Hydraulic Cylinder Rod	-
35	-	1	Part 37	( AH135266 NO LONGER AVAILABLE), (SUB AH142934)
36	24H1679	1	Washer	2-17/64" X 3-1/4" X 0.060"
36	14M7319	1	Lock Nut	M12
37	40M7066	2	Snap Ring	-
2A	T125945	1	Pin Fastener	-
2B	T142485	1	Pin	-

Crowd Cylinder (410D Heavy Lift, 510D Standard) ( - 798466)
