Открытый узел

CONTROLLED LOWERING DEVISE, CROWD CYLINDER KIT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1007	1	Elbow Fitting	(HEAVY LIFT)
2	T77858	1	O-Ring	-
3	38H1482	1	Reducer	(HEAVY LIFT)
4	U12547	2	O-Ring	-
5	38H1329	1	Adapter Fitting	(STANDARD)
6	T77932	1	O-Ring	-
7	38H1069	1	Fitting	-
8	R26906	2	O-Ring	-
9	T157549	1	Label	-
10	38H1012	1	Elbow Fitting	-
11	T77857	4	O-Ring	-
12	38H1095	1	Elbow Fitting	-
13	38H1314	1	Elbow Fitting	-
14	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	AT173909	1	Hose	-
16	AT101236	1	HYDRAULIC HOSE - FABRICATE	(HEAVY LIFT)
16	AT159307	1	Hydraulic Hose	(STANDARD)
17	M87795	1	Tee Fitting	-
18	TY22462	3	Clamp	(SUB FOR AR21836, THIS APPLICATION ) (SUB FOR AR48236)
19	TY22495	1	Hose Clamp	(HEAVY LIFT)
19	TY22494	1	Hose Clamp	(STANDARD)
20	38H1532	1	Tee Fitting	-
21	T77858	2	O-Ring	-
22	AT171833	1	Hyd Actuated Control Valve	CONTROLLED LOWERING DEVICE
23	AT173883	1	Hyd Actuated Control Valve	(AT173887 KIT, COUNTERBALANCE SEAL) COUNTERBALANCE
24	AT173884	1	Manual Hydraulic Valve	(AT173888 KIT, NEEDLE SEAL) NEEDLE
25	-	1	Part 27	( AT170532 NO LONGER AVAILABLE CROWD CONTROLLED LOWERING DEVICE

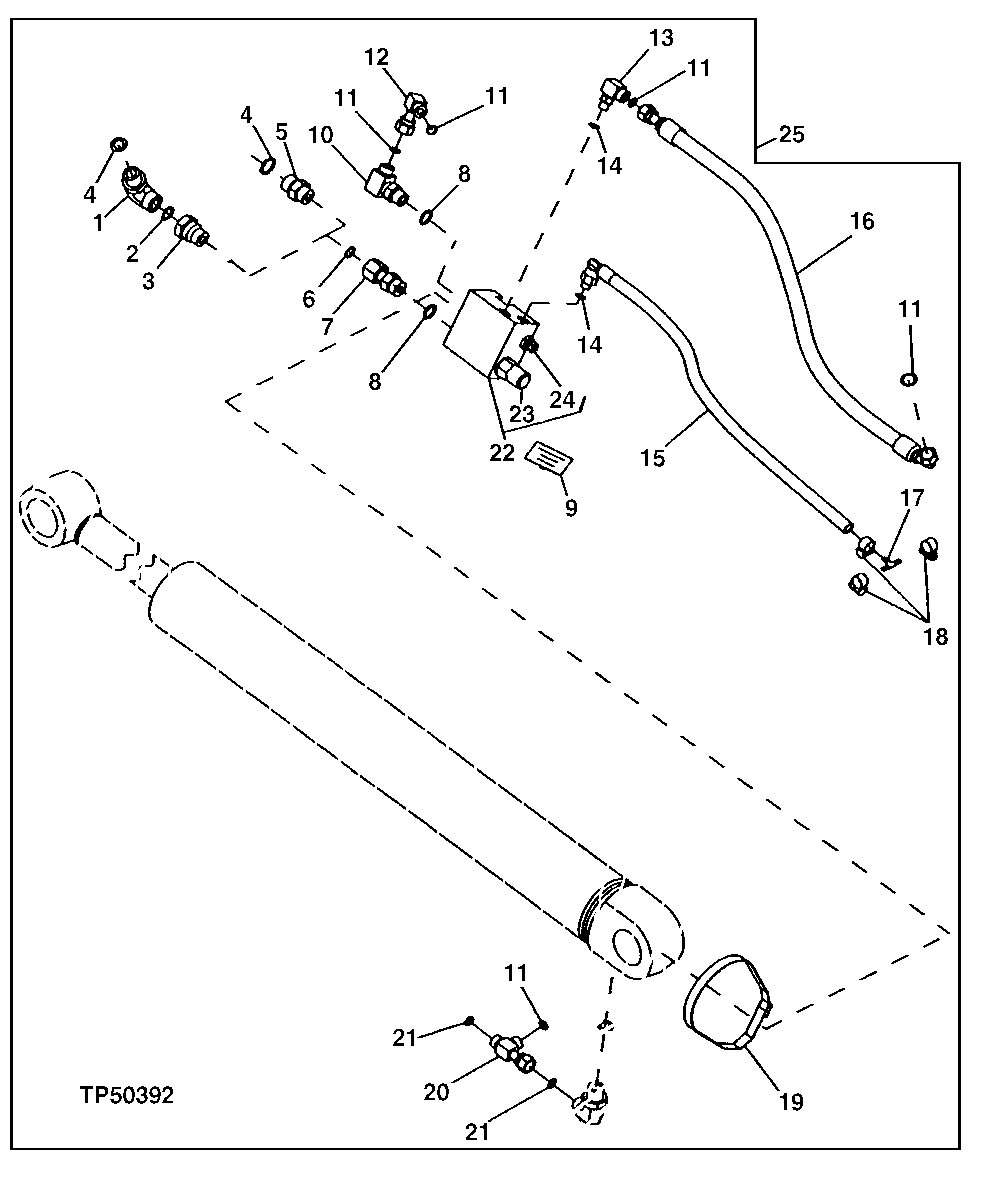

CONTROLLED LOWERING DEVISE, CROWD CYLINDER KIT

Нет текстового описания
