Открытый узел

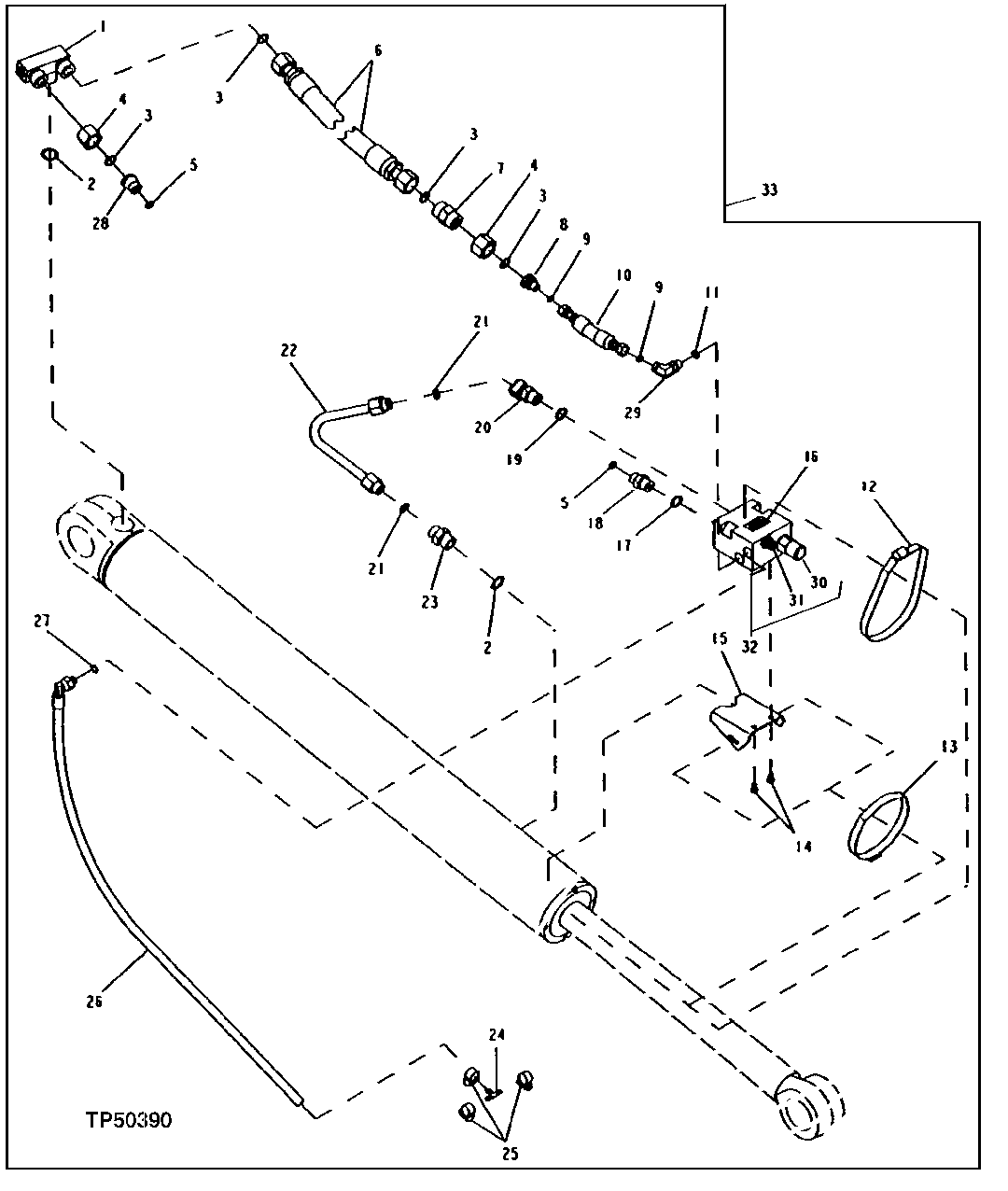

Controlled Lowering Devise, Boom Cylinder Kit (Standard Boom)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT173160	1	Tee Fitting	-
2	U12547	2	O-Ring	-
3	T77858	4	O-Ring	-
4	38H1356	2	Tube Nut	-
5	T77857	2	O-Ring	-
6	AT173229	1	Hose	-
7	38H1272	1	Union Fitting	-
8	38H1473	1	Reducer	-
8	38H1356	1	Tube Nut	-
9	T77613	2	O-Ring	-
10	AT173565	1	Hydraulic Hose	-
11	R26448	1	O-Ring	-
12	TY22495	1	Hose Clamp	-
13	TY22492	1	Hose Clamp	-
14	19M7923	2	Cap Screw	M6 X 12
15	T157513	1	Plate	-
16	T157549	1	Label	-
17	R26906	1	O-Ring	-
18	38H1174	1	Adapter Fitting	-
19	R26906	1	O-Ring	-
20	38H1047	1	Elbow Fitting	-
21	T77932	2	O-Ring	-
22	AT171249	1	Tube	-
23	38H1329	1	Adapter Fitting	-
24	M87795	1	Tee Fitting	-
25	TY22462	3	Clamp	(SUB FOR AR21836, THIS APPLICATION ) (SUB FOR AR48236)
26	AT173909	1	Hose	-
27	R26448	1	O-Ring	-
28	38H1474	1	Reducer	-
29	38H1004	1	Elbow Fitting	-
30	AT173883	1	Hyd Actuated Control Valve	(AT173887 KIT, COUNTERBALANCE SEAL) COUNTERBALANCE
31	AT173884	1	Manual Hydraulic Valve	(AT173888 KIT, NEEDLE SEAL) NEEDLE
32	AT171833	1	Hyd Actuated Control Valve	CONTROLLED LOWERING DEVICE
33	-	1	Part 34	( AT170487 NO LONGER AVAILABLE) BOOM CONTROLLED LOWERING DEVICE

Controlled Lowering Devise, Boom Cylinder Kit (Standard Boom)

Нет текстового описания
