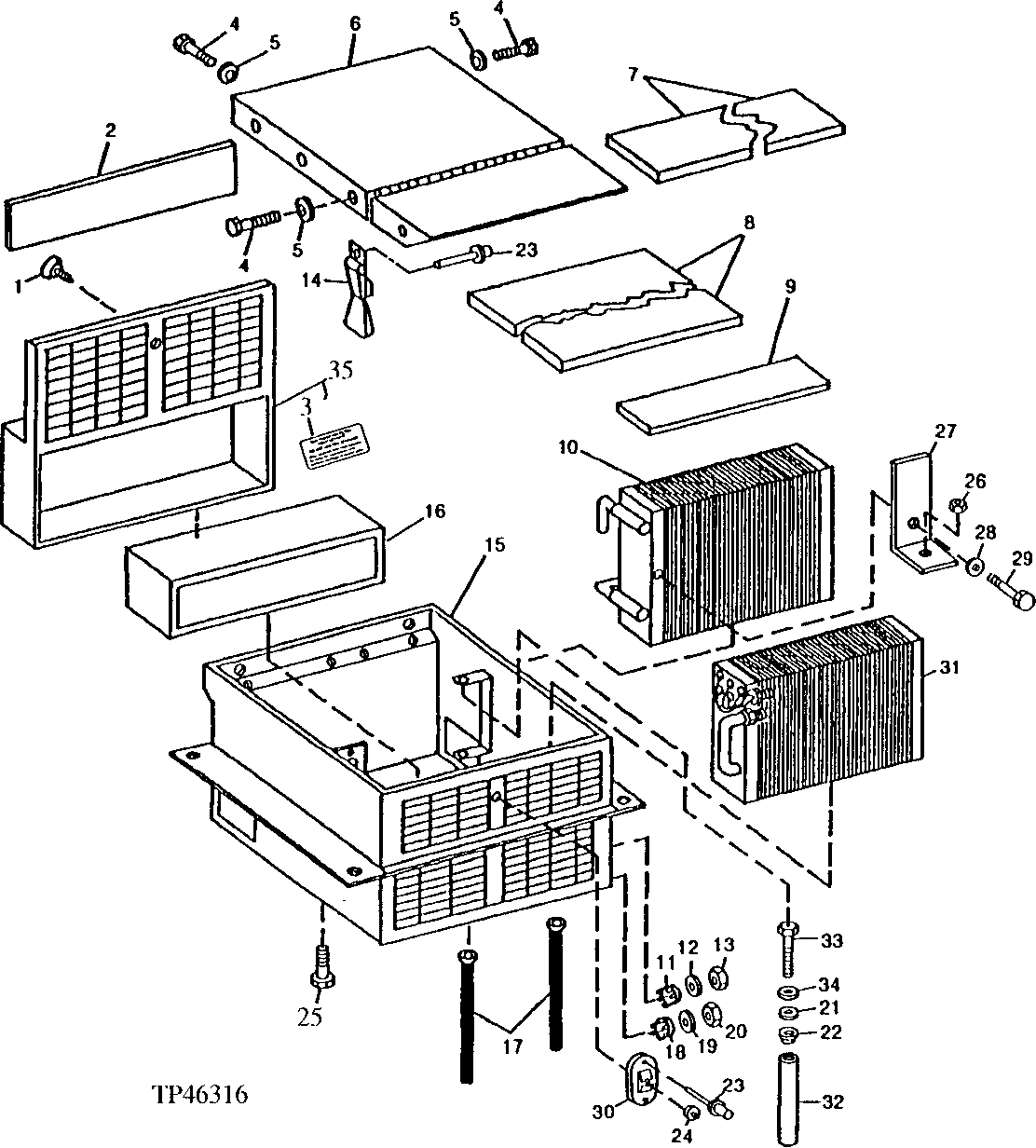

CAB HEATER HOUSING,HEATER CORE,FILTER AND EVAPORATOR ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T133399	1	Wing Screw	-
2	T133239	1	Air Filter	-
3	T141484	1	Label	FRESH AIR FILTER
4	19M7938	7	Cap Screw	M10 X 20
5	24M7239	7	Washer	10.700 X 21 X 2.500 mm
6	AT141214	1	Cover	-
7	T134495	1	Seal	SMALL
8	T134494	1	Seal	LARGE
9	T134490	1	Seal	-
10	AT141207	1	Core	-
11	-	1	Part 11	WITHOUT AIR CONDITIONING ( U45113 - NO LONGER AVAILABLE)
12	12H247	1	Lock Washer	5/8", (WITH AIR CONDITIONING)
13	14H866	1	Nut	5/8", (WITH AIR CONDITIONING)
14	AT145602	2	Retainer	-
15	AT145590	1	Case	-
16	AT141209	1	Air Filter	-
17	AT168138	2	Tube	DRAIN (WITH AIR CONDITIONING), (SUB FOR AT145600)
17	T122374	2	Plug	WITHOUT AIR CONDITIONING
18	A4270R	1	PLUG	WITHOUT AIR CONDITIONING, (SUB FOR M42230)
19	12H328	1	Lock Washer	7/8", (WITH AIR CONDITIONING)
20	C985R	1	NUT	22.225 mm (7/8"), (WITH AIR CONDITIONING)
21	M74794	2	Washer	7.200 X 24.100 X 3.200 mm (0.283" X 0.949" X 0.126")
22	T142704	2	Round Retainer	-
23	AT44195	6	Rivet	(SUB FOR M86758)
24	T142718	1	Washer	-
25	19M7865	8	Screw	M8 X 16
26	14M7272	1	Nut	M6
27	T142703	1	Angle	-
28	24H1287	1	Washer	9/32" X 5/8" X 0.065"
29	19M8332	1	Cap Screw	M6 X 90
30	T142706	1	Nut	-
31	AT164840	1	Heat Exchanger	(WITH AIR CONDITIONING), (SUB FOR AT141206)
32	AT145601	2	Resistor	-
33	T142714	1	Cap Screw	-
34	24H1287	2	Washer	9/32" X 5/8" X 0.065"
35	AT145599	1	Frame	(FRESH AIR FILTER)

CAB HEATER HOUSING,HEATER CORE,FILTER AND EVAPORATOR ( - 801199)
