Bucket Leveling and Return-to-Dig Linkage (801200 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT156332	1	Actuator	-
2	25H153	1	GROOVE PIN	3/8" X 1-3/4"
3	T148182	1	Ring	-
4	T146757	2	Washer	13.150 X 22.080 X 0.635 mm (0.518" X 0.869" X 0.025")
5	R72855	1	Pin Fastener	12.499 X 36.068 mm (0.492" X 1.420")
6	T21158	1	Yoke	-
7	14H856	1	Nut	1/2"
8	AT151479	1	Tube	(INCLUDES T162396)
9	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
10	R73380	1	Snap Ring	-
11	T148640	1	Bushing	-
13	T13742	2	BUSHING	-
14	T148641	2	Bushing	-
15	24M7239	3	Washer	10.700 X 21 X 2.500 mm
15	24M7239	1	Washer	10.700 X 21 X 2.500 mm
16	T148642	1	Plate	-
17	19M8093	1	Cap Screw	M10 X 100
18	R46528	2	Spring Locking Pin	-
19	R65563	2	Pin Fastener	9.398 X 28.499 mm (0.370" X 1.122")
20	T140328	1	Yoke	(L.H.)
21	14H913	1	Nut	3/8"
22	T148636	1	Rod	-
23	14H774	1	Nut	3/8"
24	AT169087	1	Ball Joint	-
25	14M7296	1	Flange Nut	M10
26	M68954	1	Lock Nut	9.525 mm (3/8")
28	19M7658	1	Cap Screw	M10 X 50
29	M80373	1	Yoke	-
30	14H774	1	Nut	3/8"
31	24M7085	1	Washer	15 X 28 X 2.500 mm
32	U12595	1	SPRING	-
34	24M7096	4	Washer	10.500 X 18 X 1.600 mm
12A	-	1	Part 12	AT164455 NO LONGER AVAILABLE, (SUB AT169870)
12B	AT169870	1	Bellcrank	(INCLUDES AA34134)
12B	AA34134	1	Ball Bearing	(NOT ILLUSTRATED)
27A	-	1	Part 30	AT164452 NO LONGER AVAILABLE, (SUB AT169869)
27B	AA34134	1	Ball Bearing	(NOT ILLUSTRATED)
27B	AT169869	1	Bellcrank	(INCLUDES AA34134)
33A	AT164450	1	Rod	-
33B	AT175428	1	Rod	-

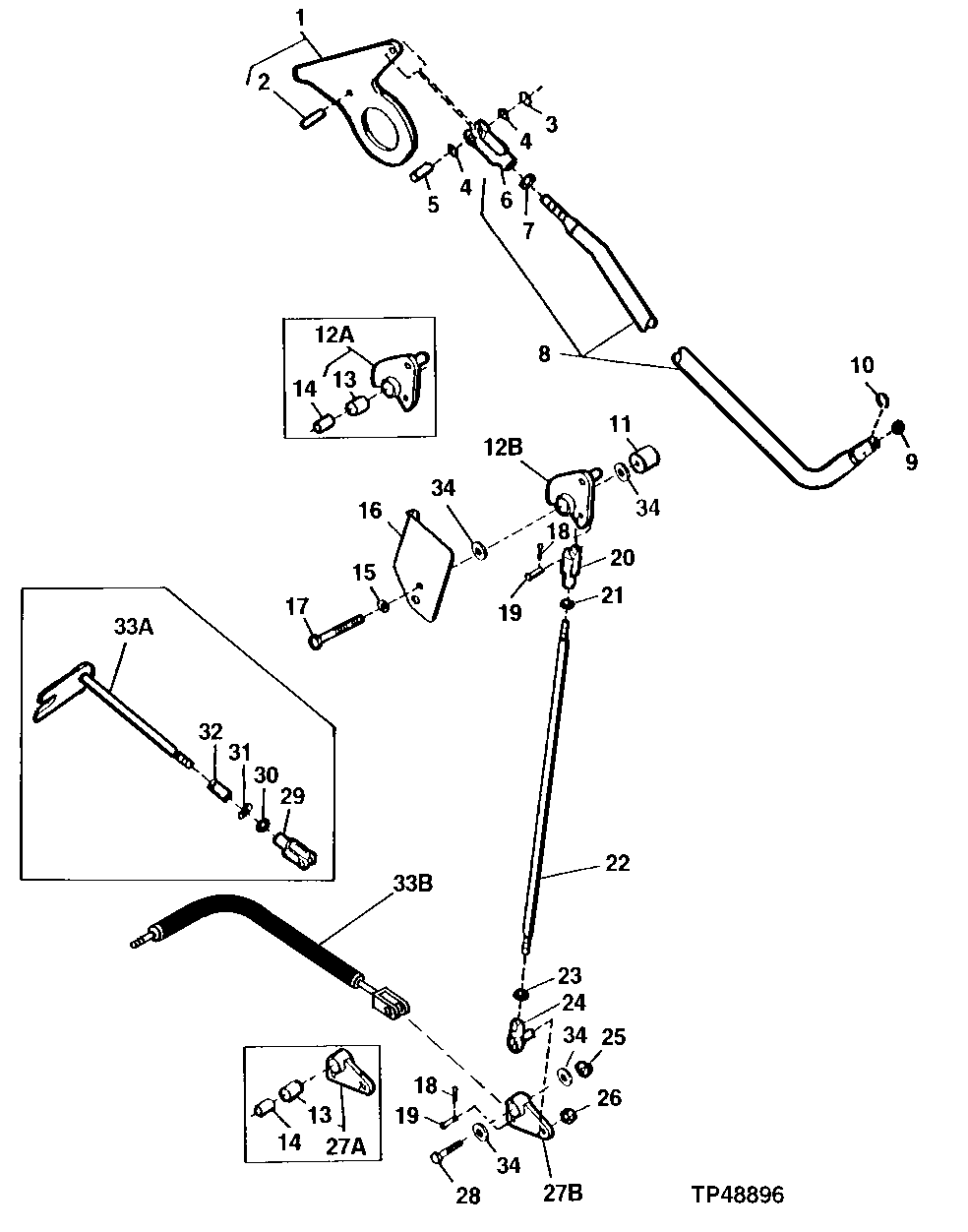

Bucket Leveling and Return-to-Dig Linkage (801200 - )
