Bucket Leveling and Return-to-Dig Linkage ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T146757	2	Washer	(SUB FOR (2) M46935)
2	T148182	1	Ring	-
3	T21158	1	Yoke	-
4	R72855	1	Pin Fastener	-
5	14H856	2	Nut	1/2"
6	AT151479	1	Tube	(INCLUDES T162396)
7	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
8	R73380	1	Snap Ring	-
9	AT156332	1	Actuator	ON MAST PIN, (SUB FOR AT141451)
10	F2863R	3	Snap Ring	-
11	R46528	4	Spring Locking Pin	-
12	-	1	Part 12	( AT156333 NO LONGER AVAILABLE), (SUB AT169344 ) (ALSO ORDER JD7844 AND T152845 ) (SUB FOR AT149813)
12	U12857	1	BUSHING	-
12	AT169344	1	Bellcrank	-
13	M80373	1	Yoke	(USE WITH AT150353)
13	T141964	1	Yoke	(USE WITH AT151906)
14	14H774	1	Nut	3/8"
15	R65563	4	Pin Fastener	-
16	T140357	1	Rod	-
17	14H913	1	Nut	3/8", (L.H.)
18	T140328	1	Yoke	(L.H.)
19	-	1	Part 22	( AT141108 NO LONGER AVAILABLE), (SUB AT169343 ) (ALSO ORDER JD7844, JD7846 AND T152845)
19	AT169343	1	Bellcrank	-
19	U12857	1	BUSHING	-
20	24H1308	1	Washer	13/32" X 1" X 0.134"
21	U12595	1	SPRING	-
22	-	1	Part 27	( AT150353 - NO LONGER AVAILABLE), (SUB AT151906 AND T141964)
22	AT151906	1	Yoke	(SUB FOR AT150353, ALSO ORDER T141964)
23	45M7036	1	Pin Fastener	6 X 30 mm
24	T132842	1	Strap	(SUB FOR T76771, THIS APPLICATION)
25	11M7077	1	Cotter Pin	1.600 X 25 mm
26	-	1	Part 32	( AT145784 NO LONGER AVAILABLE), (SUB AT169345 ) (ALSO ORDER JD7846 AND T152845)
26	AT169345	1	Bellcrank	-
26	U12857	1	BUSHING	-
27	JD7844	2	Lubrication Fitting	-
28	JD7846	1	Lubrication Fitting	-
29	T152845	1	Label	-
30	M80373	1	Yoke	-

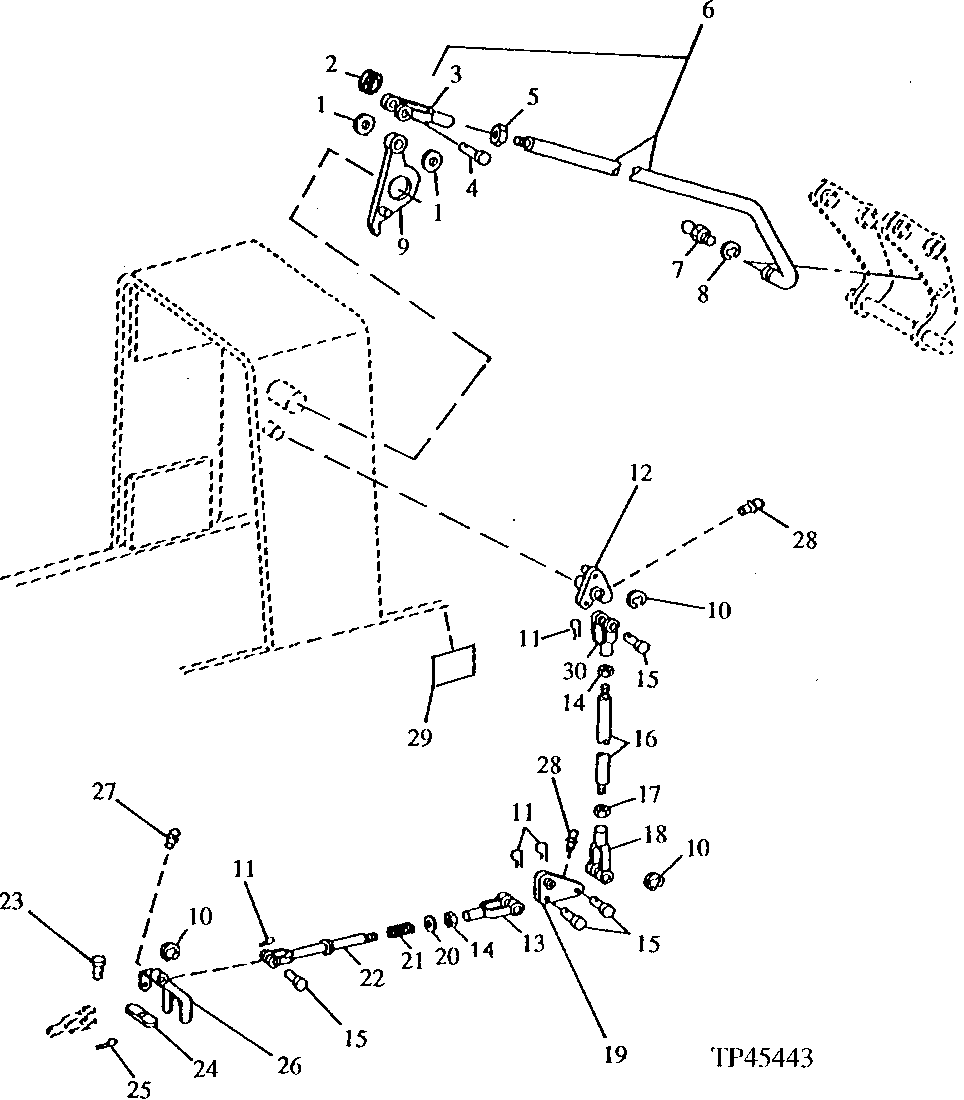

Bucket Leveling and Return-to-Dig Linkage ( - 801199)

Нет текстового описания
