Boom Cylinder (For Use With Standard Boom) ( - 798466)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7914	1	Cap Screw	M12 X 120
3	14M7328	2	Lock Nut	M16
3	14M7328	1	Lock Nut	M16
4	T125941	1	PIN FASTENER	-
5	19M8019	1	Cap Screw	M16 X 160
6	T162396	1	Lubrication Fitting	(SUB FOR JD7759, THIS APPLICATION ) (SUB FOR JD7798)
7	R82075	1	Bushing	-
8	-	1	Part 10	( AH135267 NO LONGER AVAILABLE), (SUB AH142950, H149342 AND (8) 19M6619 ) (ALSO ORDER H150617 AND RE24537)
9	R86103	1	Snap Ring	-
10	H140824	1	Spring	-
11	H140820	1	Back-Up Ring	-
12	H140816	1	Piston	-
13	H140818	1	Spring	-
14	H140823	1	Snap Ring	-
15	H140826	1	Shaft Key	-
16	R96784	1	Piston	-
17	R82095	2	Wear Ring	(BK)
18	RE20809	1	Seal	(BK)
19	R86290	2	Back-Up Ring	(RK)
20	R26282	1	O-Ring	(RK)
21	RE22776	1	Seal	(RK)
22	R83213	1	Wear Ring	(BK1)
23	RE30121	1	Seal	(BK1)
24	P46765	1	O-RING	-
25	R79001	1	Back-Up Ring	(BK) (DISASSEMBLY AID TOOL)
26	H141511	1	SPACER	-
27	H140812	1	HYDR. CYLINDER ROD GUIDE	-
28	H141980	1	Sealing Washer	(BK)
29	RE22777	1	Seal	(RK)
30	H140827	1	HYDR. CYLINDER ROD GUIDE	-
31	H140825	4	WASHER	-
32	19M7892	4	Cap Screw	M20 X 80
33	R83211	1	BUSHING	-
34	RE22781	1	HYDRAULIC CYLINDER ROD	-
35	-	1	Part 37	( AH135265 NO LONGER AVAILABLE), (SUB AH142935)
36	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
37	24H1589	1	Washer	2" X 3-3/16" X 0.036"
38	14M7319	1	Lock Nut	M12
39	40M7066	1	Snap Ring	-
2A	T125942	1	PIN FASTENER	-
2B	AT173548	1	PIN	(SUB FOR T142483 ) (ALSO ORDER T153180)

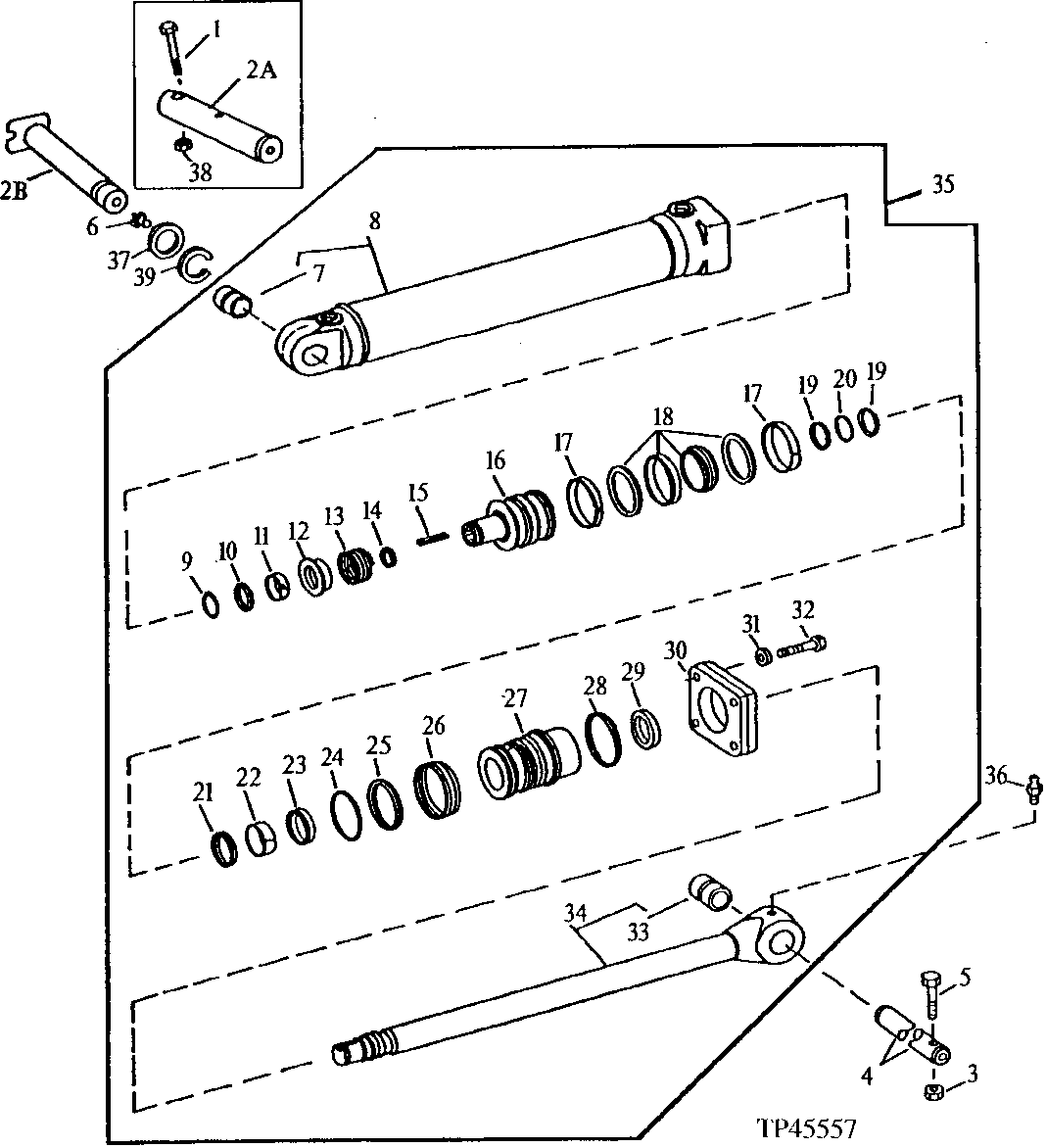

Boom Cylinder (For Use With Standard Boom) ( - 798466)
