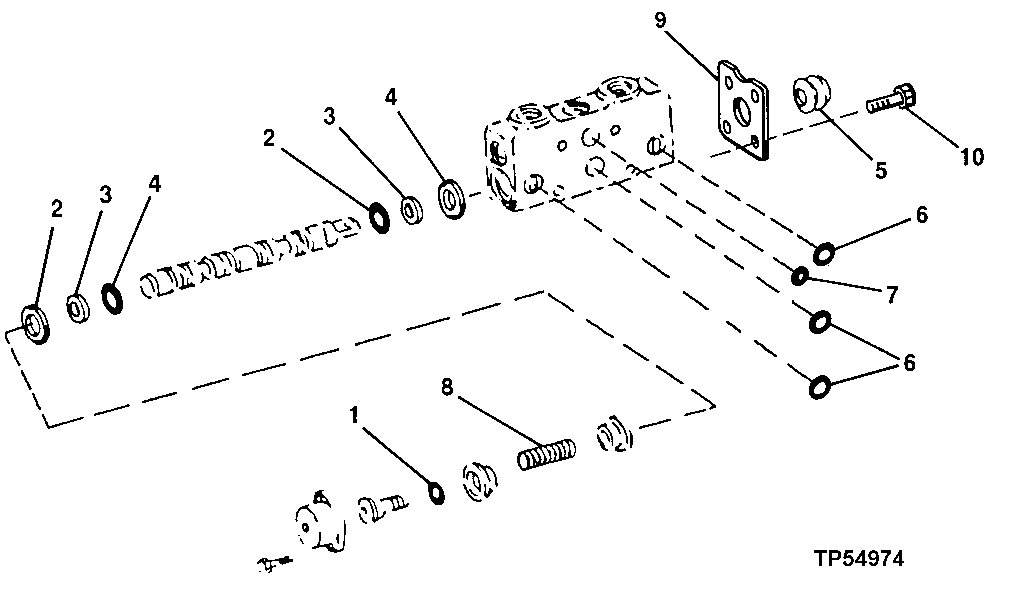

Backhoe Control Valve Seal Kit (Boom, Bucket, Crowd, Swing And Auxiliary Sections) (SN -796890 5-Function) (SN -798064 4-Function)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26287	2	O-Ring	(<service-part>AT165991</service-part> KIT, SPOOL SEAL (REPLACES <service-part >AT151896</service-part> AND <service-part>AT159817</service-part >))
2	T75997	2	RING	(<service-part>AT165991</service-part> KIT, SPOOL SEAL (REPLACES <service-part >AT151896</service-part> AND <service-part>AT159817</service-part >))
3	T76002	2	BACK-UP RING	(<service-part>AT165991</service-part> KIT, SPOOL SEAL (REPLACES <service-part >AT151896</service-part> AND <service-part>AT159817</service-part >))
4	T122034	2	O-Ring	(<service-part>AT165991</service-part> KIT, SPOOL SEAL (REPLACES <service-part >AT151896</service-part> AND <service-part>AT159817</service-part >))
5	T149740	1	BOOT	(<service-part>AT165991</service-part> KIT, SPOOL SEAL (REPLACES <service-part >AT151896</service-part> AND <service-part>AT159817</service-part >)) (SUB FOR T113029)
6	-	6	Part 6	(<service-part>AT159816</service-part> KIT, SEAL (REPLACES <service-part >AT151896</service-part>))
7	-	2	Part 7	(<service-part>AT159816</service-part> KIT, SEAL (REPLACES <service-part >AT151896</service-part>))
8	T75992	1	SPRING	(<service-part>AT165991</service-part> KIT, SPOOL SEAL (REPLACES <service-part >AT151896</service-part> AND <service-part>AT159817</service-part >))
9	T160996	1	Flange	(B)
10	T104773	4	Cap Screw	(B)

Backhoe Control Valve Seal Kit (Boom, Bucket, Crowd, Swing And Auxiliary Sections) (SN -796890 5-Function) (SN -798064 4-Function)

Нет текстового описания
