Backhoe Control Valve (Husco) (SN 798065-801199 4-Function) (SN 796891-801199 5-Function) (SN 799622-801199 6-Function)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7496	2	Cap Screw	M12 X 45
1	19M8348	1	Cap Screw	M12 X 65
1	T29342	3	Washer	-
1	24M7345	1	Washer	13.500 X 24 X 2.500 mm, (5-FUNCTION AND 6-FUNCTION)
2	14M7275	3	Nut	M12
3	T149571	2	Tie Rod Assembly	(SMALLER FRONT) (WITH 4-FUNCTION)
3	T149570	1	Rod	(LARGER REAR) (WITH 4-FUNCTION)
3	T149576	2	Rod	(SMALLER FRONT) (WITH 5-FUNCTION)
3	T149575	1	Rod	(LARGER REAR) (WITH 5-FUNCTION)
3	T149578	2	Rod	(SMALLER FRONT) (WITH 6-FUNCTION)
3	T149577	1	Rod	(LARGER REAR) (WITH 6-FUNCTION)
4	14H807	4	Nut	7/16", (SMALLER TIE RODS)
4	14H865	2	Nut	1/2", (LARGER TIE ROD)
5	-	1	Part 14	( AT165436 NO LONGER AVAILABLE) CONVENIENCE ASSEMBLY (4-FUNCTION) (NOT ILLUSTRATED), (SUB AT165785 AND AT165739 (ALSO ORDER AT169987 FOR THE 410D STANDARD OR AT165735 FOR THE 410D HEAVY LIFT AND 510D))
5	-	1	Part 15	( AT165437 NO LONGER AVAILABLE) CONVENIENCE ASSEMBLY (5-FUNCTION), (SUB AT165786 AND AT165739 (ALSO ORDER AT169987 FOR THE 410D STANDARD OR AT165735 FOR 410D HEAVY LIFT AND 510D))
5	-	1	Part 16	( AT165438 NO LONGER AVAILABLE) CONVENIENCE ASSEMBLY (6-FUNCTION) (NOT ILLUSTRATED), (SUB AT165787 AND AT165739 (ALSO ORDER AT169987 FOR THE 410D STANDARD OR AT165735 FOR THE 410D HEAVY LIFT AND 510D))

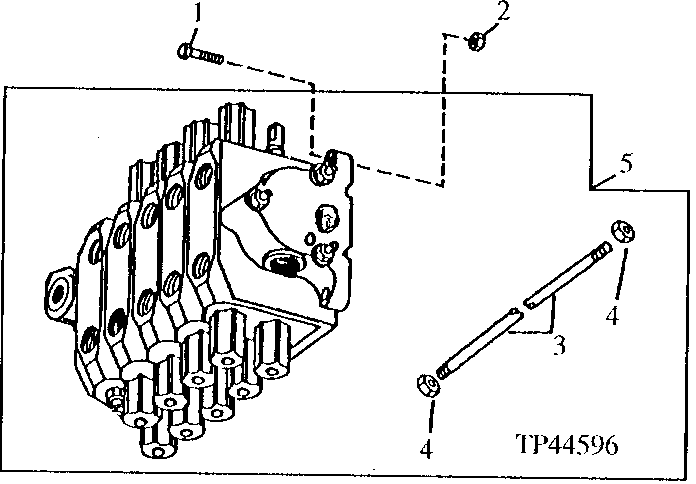

Backhoe Control Valve (Husco) (SN 798065-801199 4-Function) (SN 796891-801199 5-Function) (SN 799622-801199 6-Function)

Нет текстового описания
