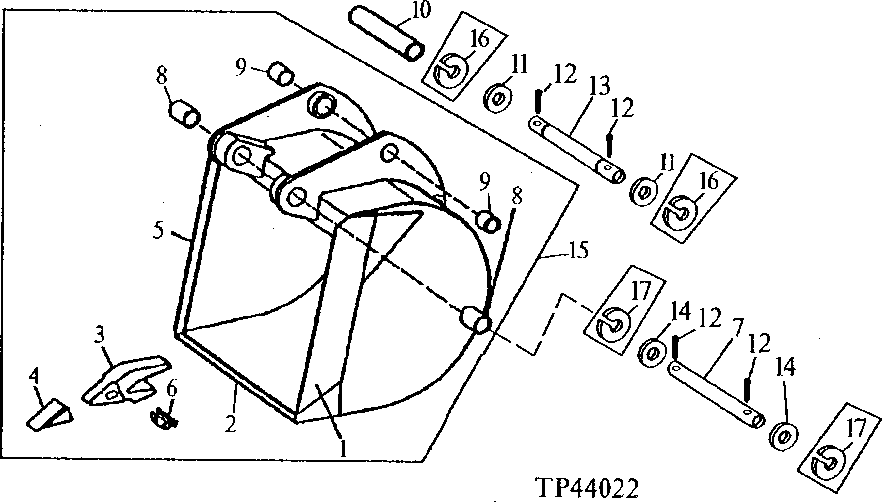

Backhoe Bucket (762mm (30") STD AND HD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T140128	1	Cutting Edge	RIGHT (EXTRA HEAVY DUTY)
1	T139706	1	CUTTING EDGE	RIGHT (STANDARD AND HEAVY DUTY)
2	T161319	1	Dura-Max Cutting Edge	FRONT, (SUB FOR T140092, THIS APPLICATION (30 & 36 INCH BUCKET))
2	T161279	1	Dura-Max Cutting Edge	(12, 18 & 24 INCH BUCKET)
3	U43792	5	Bucket Tooth Adapter	-
4	TF23	5	TOOTH	-
5	T139707	1	CUTTING EDGE	LEFT (STANDARD AND HEAVY DUTY)
5	T140129	1	Cutting Edge	LEFT (EXTRA HEAVY DUTY)
6	TF23P	5	Pin	(SUB FOR T40910, THIS APPLICATION)
7	T125926	1	PIN FASTENER	-
7	T140880	1	Pin Fastener	-
7	T125926	1	PIN FASTENER	-
8	T113755	2	BUSHING	-
9	T113756	4	BUSHING	-
10	T140362	1	Spacer	-
11	U11649	2	WASHER	-
11	24H1536	2	Washer	1-17/32" X 2-1/4" X 0.060"
12	11H221	4	COTTER PIN	3/8" X 2-1/2"
13	T125931	1	PIN FASTENER	-
13	T140881	1	Pin Fastener	-
13	T125931	1	PIN FASTENER	-
14	24H1574	1	Washer	1-13/16" X 2-3/4" X 0.060"
14	24H1576	1	Washer	1-13/16" X 2-15/16" X 0.075"
15	-	1	Part 24	(SUB FOR AT149958)762 MM (30INCH) (STANDARD) AT158376 NO LONGER AVAILABLE
15	-	1	Part 25	(30") HEAVY DUTY ( AT158375 USE IF AVAILABLE), (SUB FOR AT149959 ) (SUB AT181723, AT180471, AT180472, (2) T29342 AND (2) 19M8935)
15	-	1	Part 26	(30") HEAVY DUTY 10 CUBIC FEET ( AT149985 USE IF AVAILABLE), (SUB AT181723, AT180471, AT180472, (2) T29342 AND (2) 19M8935)
16	U11030	2	Snap Ring	-
17	U11031	2	Snap Ring	-

Backhoe Bucket (762mm (30") STD AND HD)

Нет текстового описания
